ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0322
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Strap (A)
Green Ground Screw
Lock Nut (D)
Mounting Screw (B)
Wire Connector (E)
Fixture Mounting Screw (C)
Outlet Box
Glass Panel
Threaded Pipe
Set Screw 2
Set Screw 1
Canopy
(F)
Ball Nut (I)
Washer
Coupling
Fixture
Short Tube
Tube Cap
Candelabra Base Bulb
Max.60W (not included)

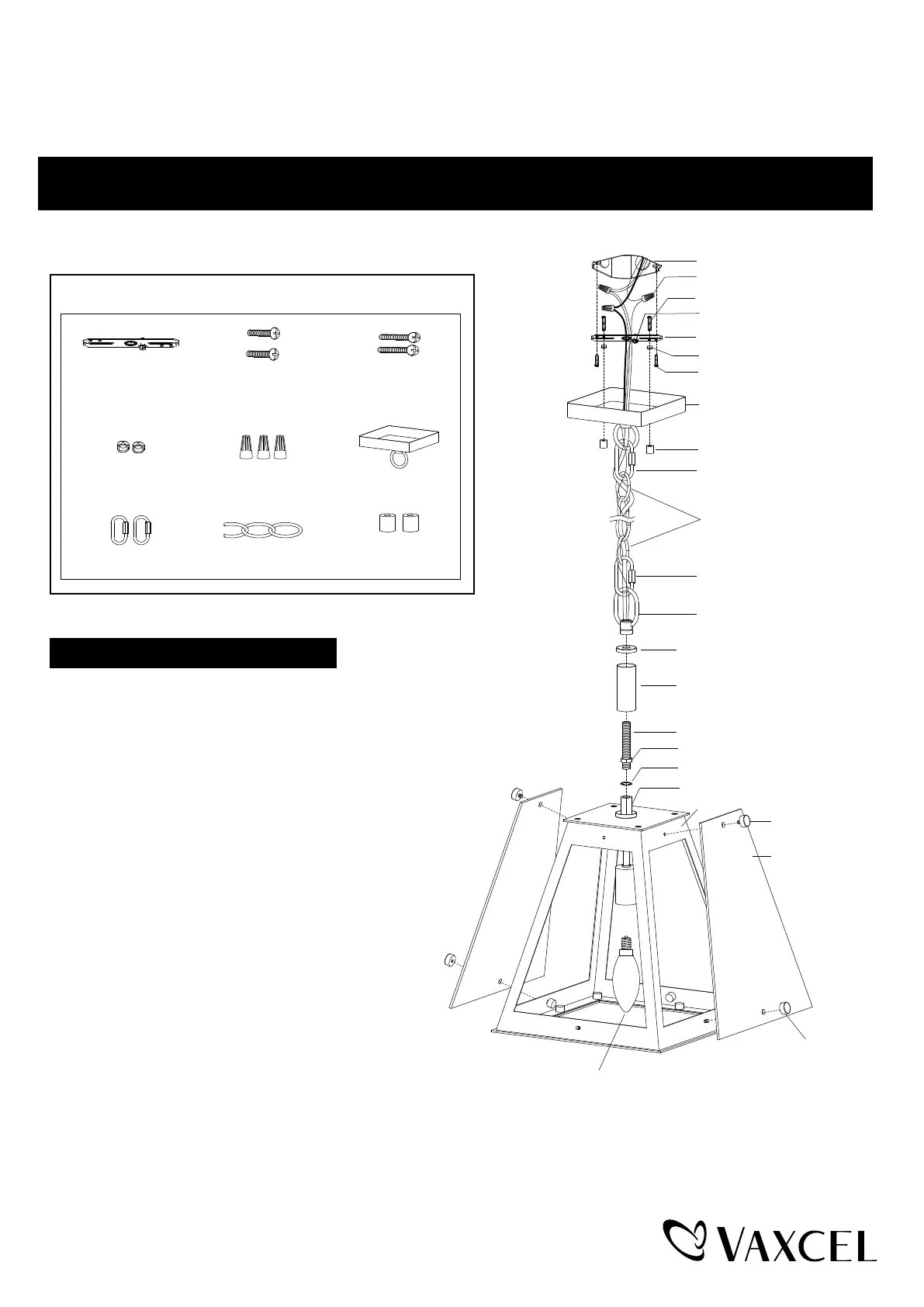

1. Attach two fixture mounting screws
(C) to the
mounting strap (A), then secure it with two
lock nuts (D). Adjust the length of the fixture
mounting screws (C) if necessary.
2. Attach the mounting strap (A) to the outlet box
using two mounting screws (B).
3. Attach the threaded pipe to the coupling of the
fixture, secure it with a washer and hex nut.
Adjust the length of the threaded pipe if necessary.
4. Attach the short tube and tube cap onto the
coupling by inserting the threaded pipe, then
secure with the tube cap and loop.
5. Choose the length of the chain (H) you need,
use pliers (not included) to open and remove
links to short the chain, then weave the fixture
wire and the fixture ground wire through the
chain (H) and canopy (F).
6. Connect one end of the chain (H) with the
loop by using a loop lock (G).
7. Connect the other end of the chain (H)
by using another loop lock (G).
8. Thread the fixture wire and fixture ground wire
through mounting strap (A).
Loop Lock (G)
Loop Lock (G)
Loop
Chain (H)
Hardware Package(inculded):
Mounting Strap (A)
Wire Connector (E)Lock Nut (D)
Mounting Screw (B)
Fixture Mounting
Screw (C)
Canopy (F)
Loop Lock (G)
Chain (H)
Ball Nut (I)
Hex Nut
