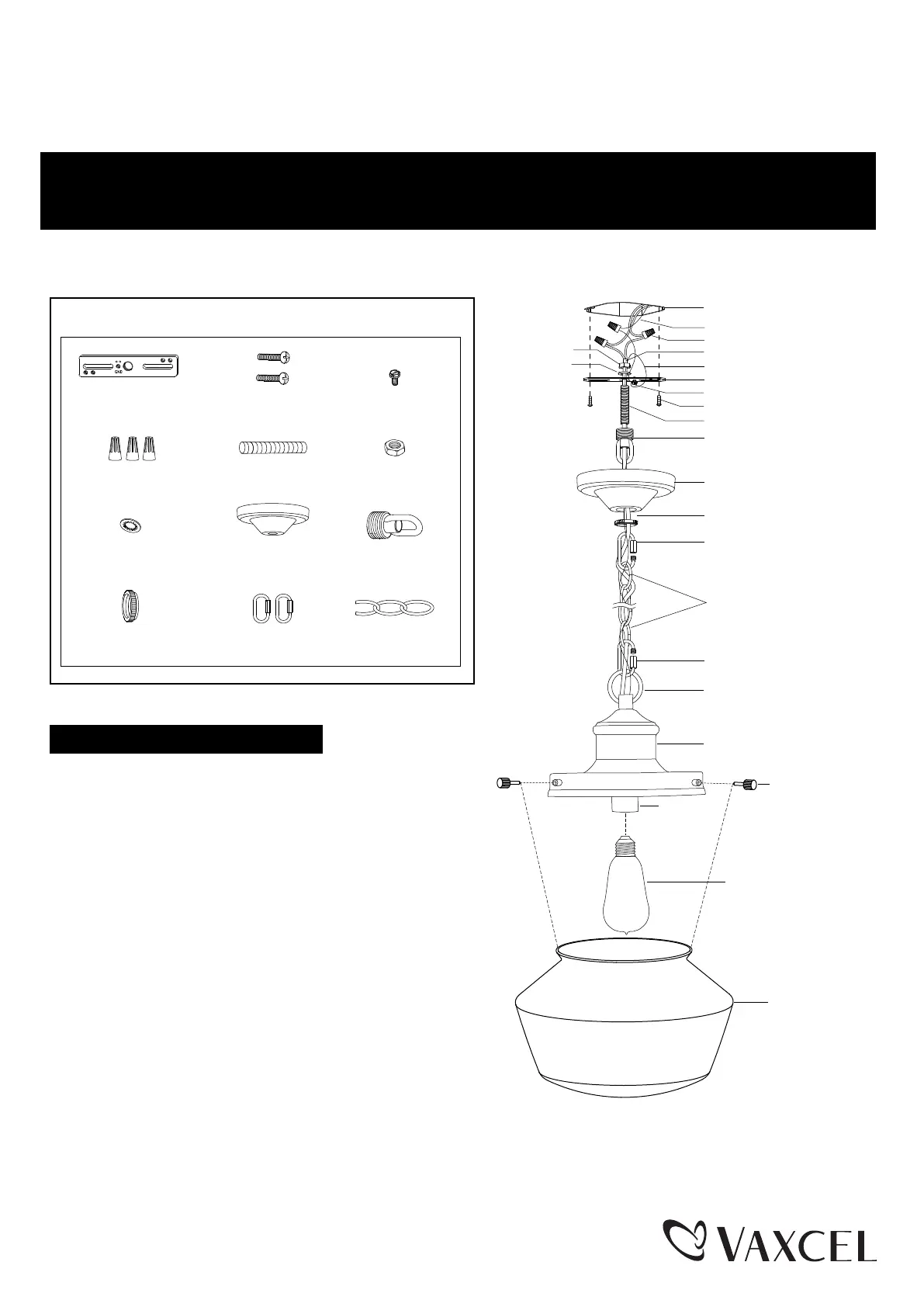

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
191128
1. Attach threaded pipe (E) to the mounting strap (A),
then secure it with a washer (G) and hex nut (F).
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Secure the top loop (I) to threaded pipe (E).
4. Choose the length of the chain (L) you need,
then weave the fixture wire and the fixture
grounding wire through the chain (L), collar (J)
and canopy (H).
5. Connect one end of the chain (L) with the loop by
using a loop lock (K).
6. Connect the other end of the chain (L) with the top loop (I) by using another loop lock (K).
7. Thread the fixture wire and fixture grounding wire through the top loop (I), threaded pipe (E) and
mounting strap (A).
Turn off the power at fuse or circuit
box.
Installation Steps
T0547
Mounting Strap (A)
Wire Connector (D)
Collar (J)
Washer (G)
Mounting Screw (B)Green Grounding
Screw (C)
Hex Nut (F)
Canopy (H) Top Loop (I)
Threaded Pipe (E)
Loop Lock (K)
Chain (L)
Hardware Package(inculded):
WARNING:
TO AL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Fixture
Set Screw x 3
Glass Shade
Socket
Outlet Box
Housing Grounding Wire
Wire Connector (D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Threaded Pipe (E)
Hex Nut (F)
Washer (G)
Top Loop (I)
Canopy (H)
Loop Lock (K)
Loop Lock (K)
Collar (J)
Chain (L)
Loop
Bulb (not included)
Max.60W Type Vintage
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
