ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

P0425 / P0426

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

1

. Unscrew the bolt nuts (E), take out the mounting plate unit (A) and then

attach to the outlet box by using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire through the lower rod, then secure the lower rod

onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure the middle

rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

then secure the upper rod onto the middle

rod using the threaded pipe.

Note: Length adjustable from 21-1/4" to 51-1/4".

Use fewer rods if shorter length is desired.

3. Thread the fixture wire through the canopy kit,

then secure the rod assembly to the set

threaded pipe of the canopy kit.

4. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

and small wire connector (D) as follows:

---Connect the smooth-coated wire (marked) from

the fixture to the red wire from the driver with the small wire connector (D).

---Connect the ribbed-coated wire (unmarked) from the fixture to the yellow

wire from the driver with the small wire connector (D).

---Connect the hot wire (black insulation) from the driver to the black wire from the power

source with the wire connector (C).

---Connect the neutral (white insulation) from the driver to the white wire from the power source with

the wire connector (C).

---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,

then connect it to the house ground wire with the wire connector (C).

Carefully put the wires back into the outlet box.

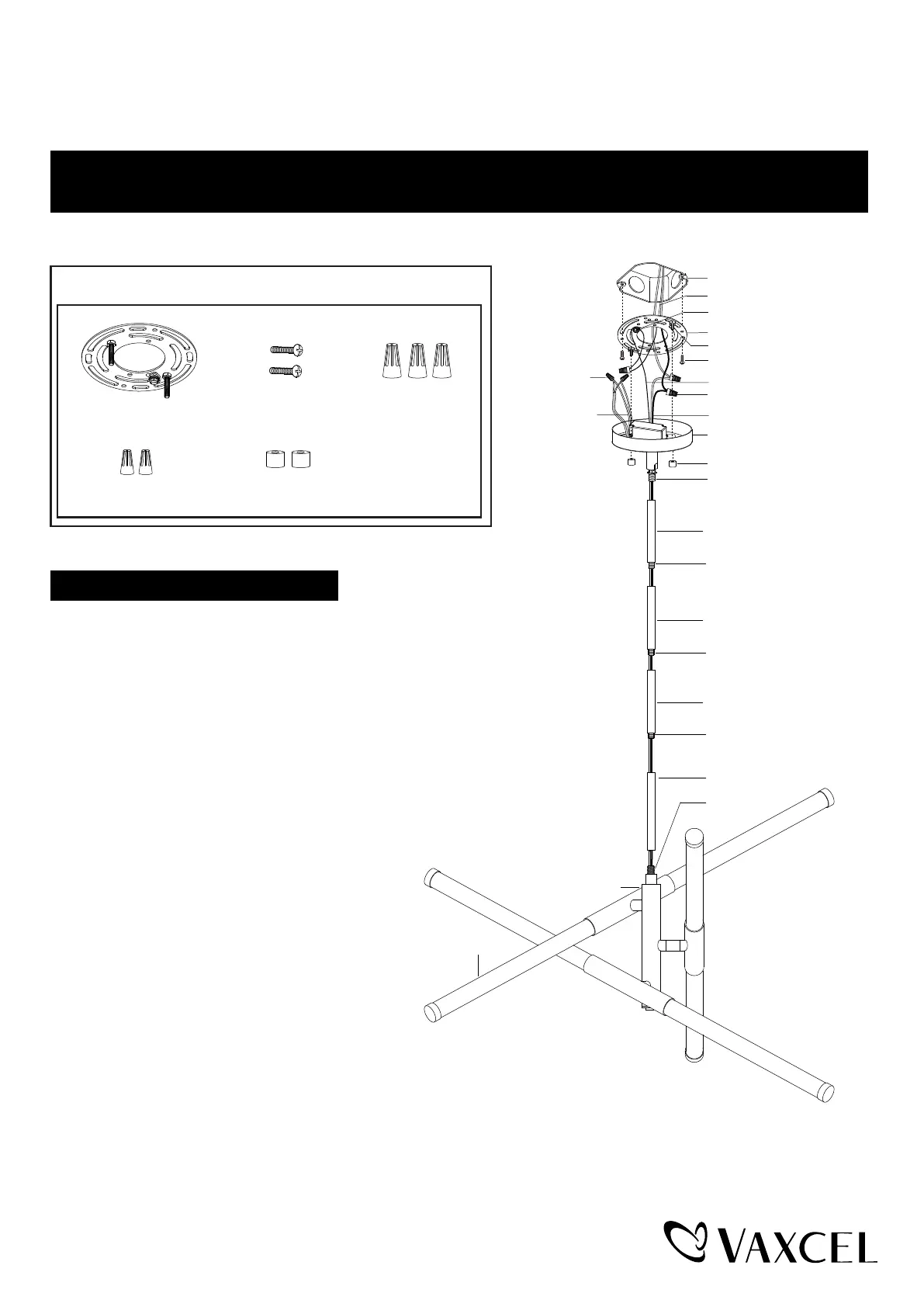

Hardware Package (included):

Wire Connector (C)

Small Wire Connector (D)

Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (E)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Driver Wire

Small Wire

Connector (D)

Bolt Nut (E)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Outlet Box

Canopy Kit

Page 1 / 2

Set Threaded Pipe

Fixture

LED Tube

Middle Rod

Middle Rod

Threaded Pipe

Threaded Pipe

Upper Rod

Threaded Pipe

Threaded Pipe

Lower Rod
