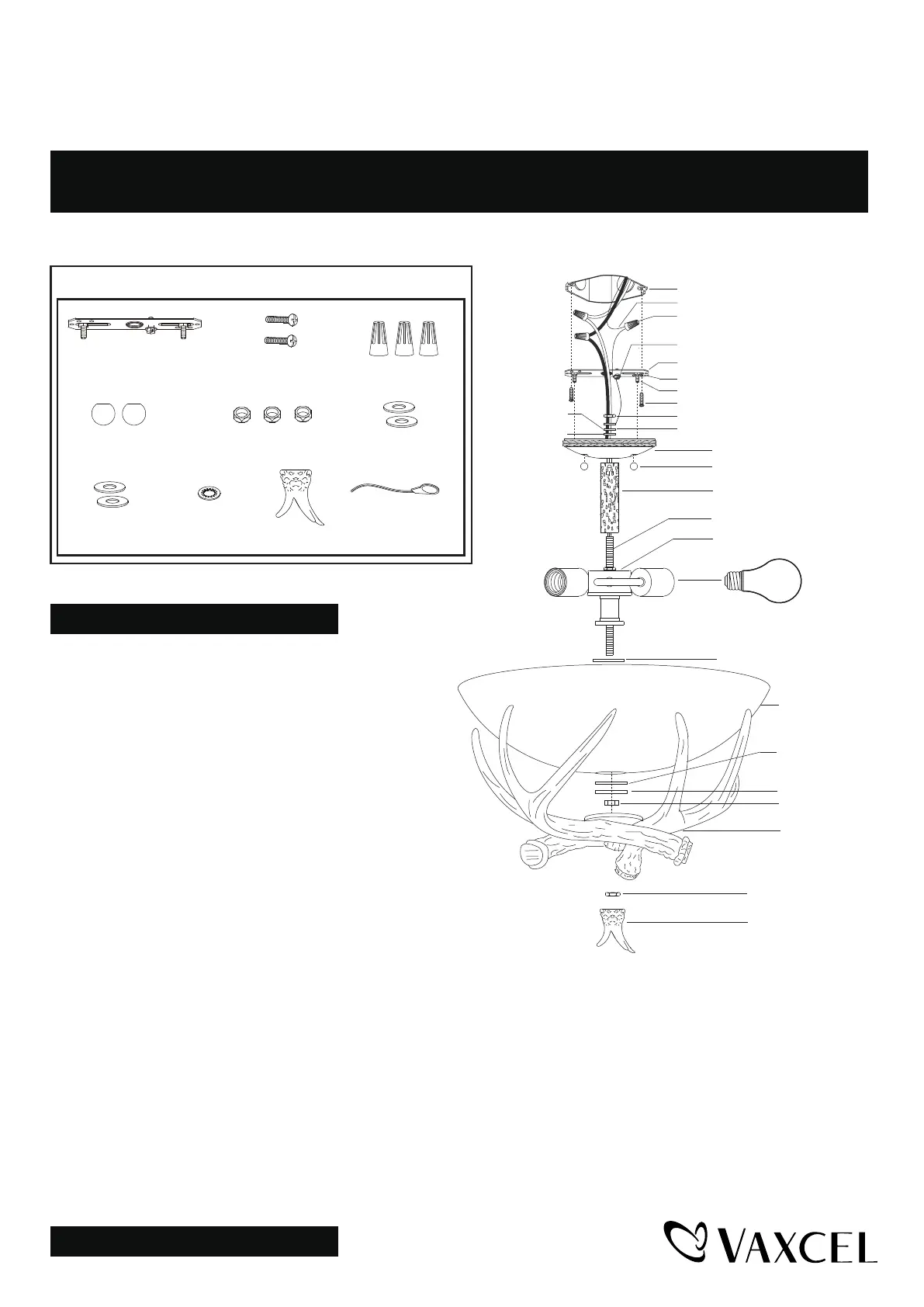

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0014
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
. Attach the mounting strap unit (A) to the
outlet box by using two mounting screws (B).
2. Thread the fixture wire through the poly rod,
canopy, ground wire (J) . secure them with
washers (H) and hex nut (E) .
3. Pull out the source wires from the outlet box.
Make wire connections using wire
connectors (C) as follows:
---Connect the hot wire (black insulation) from the
power source to the black wire from the fixture.
---Connect the neutral wire (white insulation)
from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting strap
unit (A) with the green ground screw, or connect to the source
ground wire if available.
Carefully put the wires back into the outlet box.
4. Attach the canopy to the mounting
strap
unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
5. Install 2 x 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
6. Attach the rubber pad
(F)
and glass shade upward to the fixture, then secure them with a rubber pad
(F)
,
metal pad
(G)
and hex nut
(E)
.
7. Attach the antler set upward to the glass shade carefully by inserting the threaded pipe, and then secure
it with a hex nut
(E)
and finial
(I)
.
Wire Connector (C)
Mounting Screw (B)Mounting Strap Unit (A)
Bolt Nut (D)Rubber Pad (F)
Hex Nut (E)
Metal Pad (G)Washer (H)Ground Wire (J)Finial (I)
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Hex Nut (E)
Washer (H)
Ground Wire (J)
Metal Pad (G)
Page 1 / 2
Glass Shade
Finial (I)
Hex Nut (E)
Threaded Pipe
Rubber Pad (F)
Fixture
Antler Set
Hex Nut (E)
Metal Pad (G)
Rubber Pad (F)
Canopy
Bolt Nut (D)
Poly Rod
Max. 60W Medium Base Bulb
(not included)
230509
