ASSEMBLY AND INSTALLATION

INSTRUCTIONS

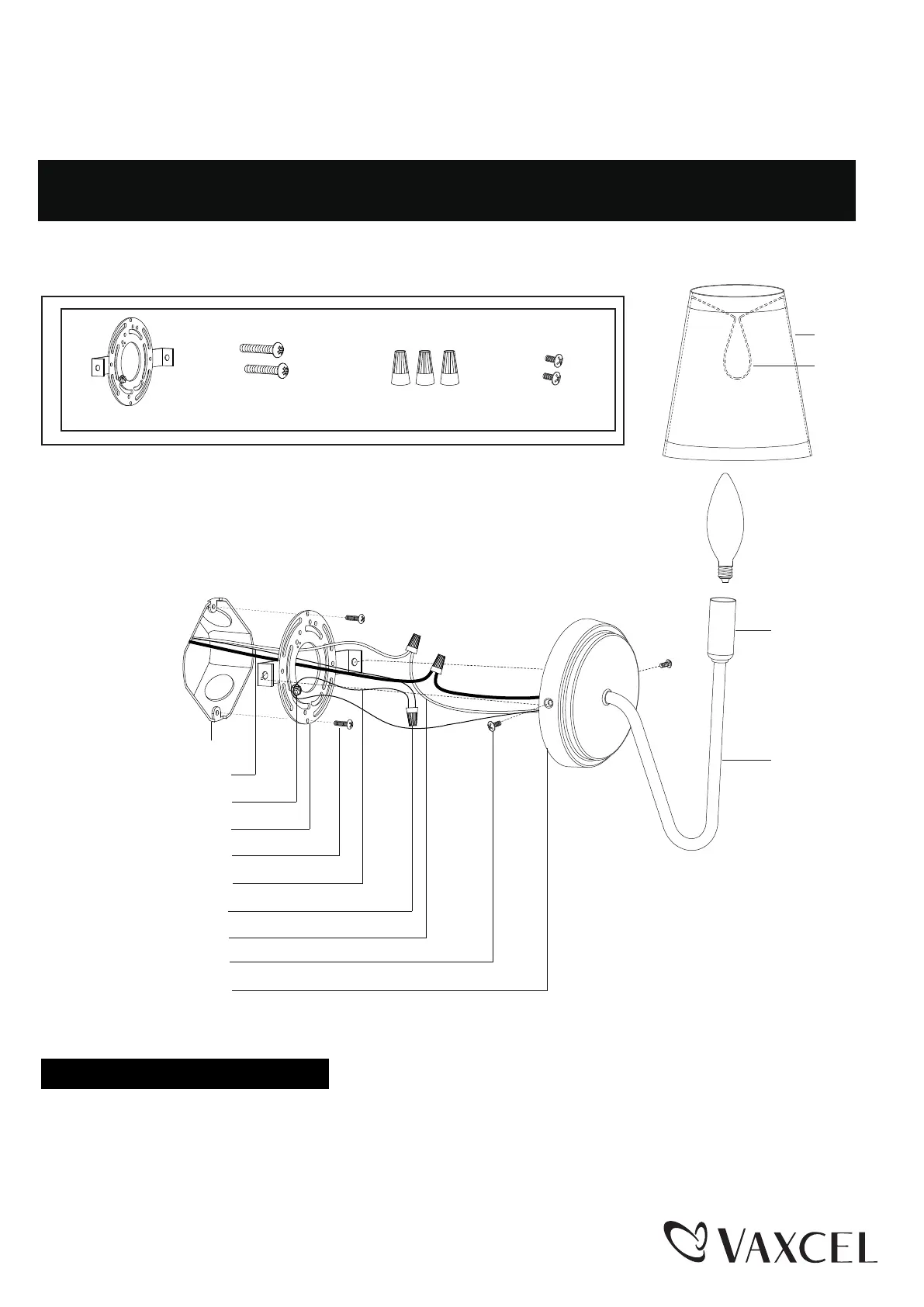

Set screw (D) Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)

Fixture

Socket

Shade

Clip

Max. 40W

Candelabra base

bulb (not included)

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Ground Wire

Green Ground Screw

Outlet Box

Fixture Wire

Set Screw (D)

Mounting Screw (B)

Backplate

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two set screws (D), remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two set holes are lined up horizontally to make the fixture level.

Page 1 / 2

W

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

W0473 / W0474
