ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

P0414

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

box.

Installation Steps

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit box.

1. Attach the mounting strap unit (A) to outlet box by using two mounting

screws (B).

2. Choose the length of the chain (G) you need, then weave the fixture

wire and the fixture ground wire through the chain (G) and canopy kit (E).

3. Connect the chain (G) to the canopy kit (E) and loop with two quick links (F).

4. Thread the fixture wire and fixture ground wire through the mounting strap

unit (A).

5. Pull out the source wires from the outlet box. Make wire connections

using wire connectors (C) as follows:

--- Connect the smooth-coated wire (marked) from the fixture to the

black wire from the power source.

--- Connect the ribbed-coated wire (unmarked) from the fixture to the

white wire from the power source.

--- Attach the fixture ground wire to the mounting strap unit (A) with

the green ground screw, then connect it to the house ground

wire with a wire connector (C).

Carefully put the wires back into the outlet box.

6. Attach the canopy kit (E) to the mounting strap unit (A) by inserting

the fixture mounting screws, then secure it with two bolt nuts (D).

7. Install 1 x 60W max. medium base bulb (not included). See

relamping label at socket area or packaging for maximum

allowed wattage.

8. Rotate the glass shades onto the glass holders until they are

locked in place.(Do not over tighten the glass shades).

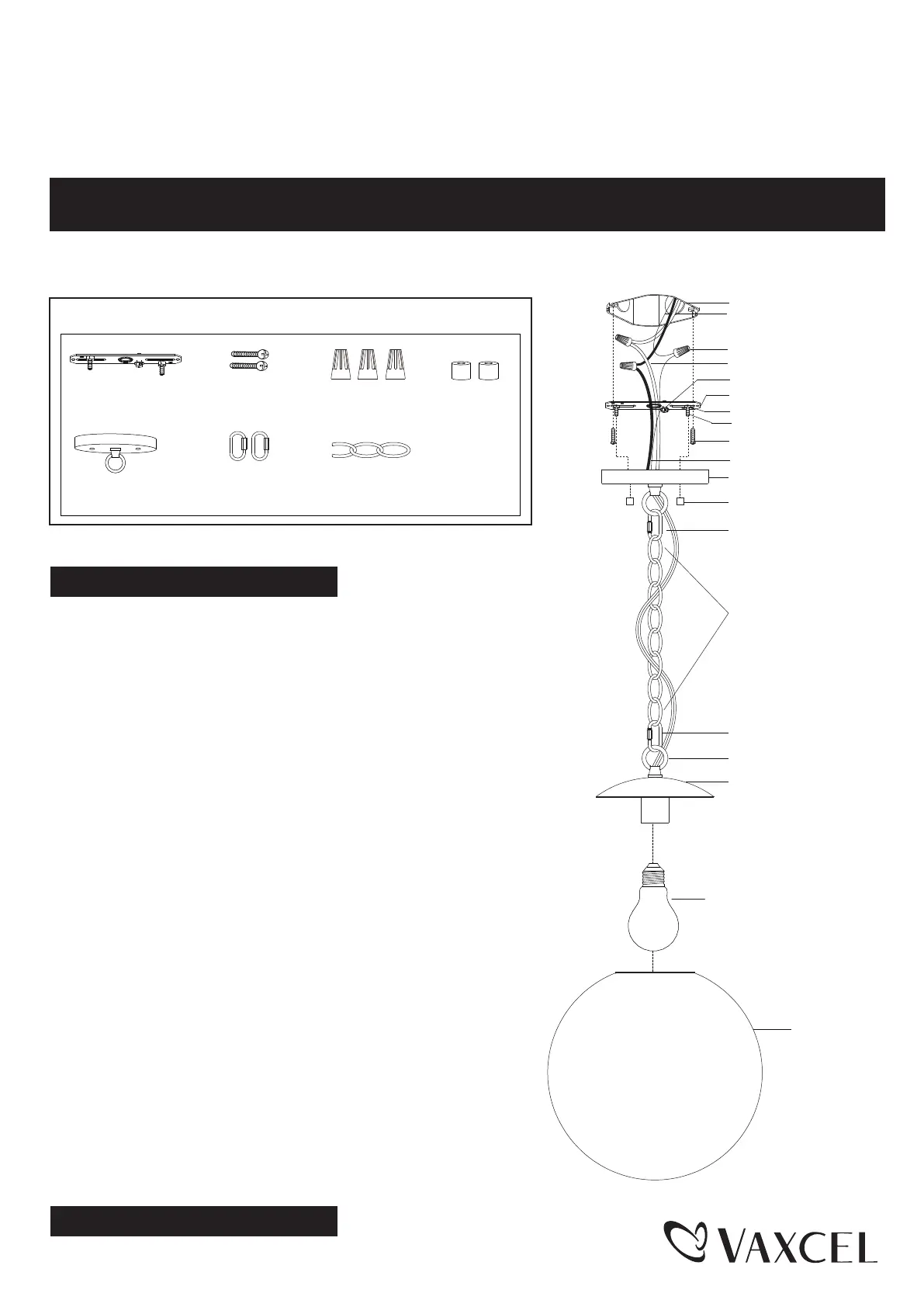

Hardware Package (included):

Bolt Nut (D)

Mounting Screw (B)

Mounting Strap Unit (A)

Wire Connector (C)

Outlet Box

House Ground Wire

Wire Connector (C)

Lock Nut

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Fixture Mounting Screw

Fixture Ground Wire

Canopy Kit (E)

Bolt Nut (D)

Quick Link (F)

Chain (G)

Quick Link (F)

Loop

Glass Holder

Glass Shade

Canopy Kit (E)

Quick Link (F)

Chain (G)

Max. 60W Medium Base Bulb

(not included)
