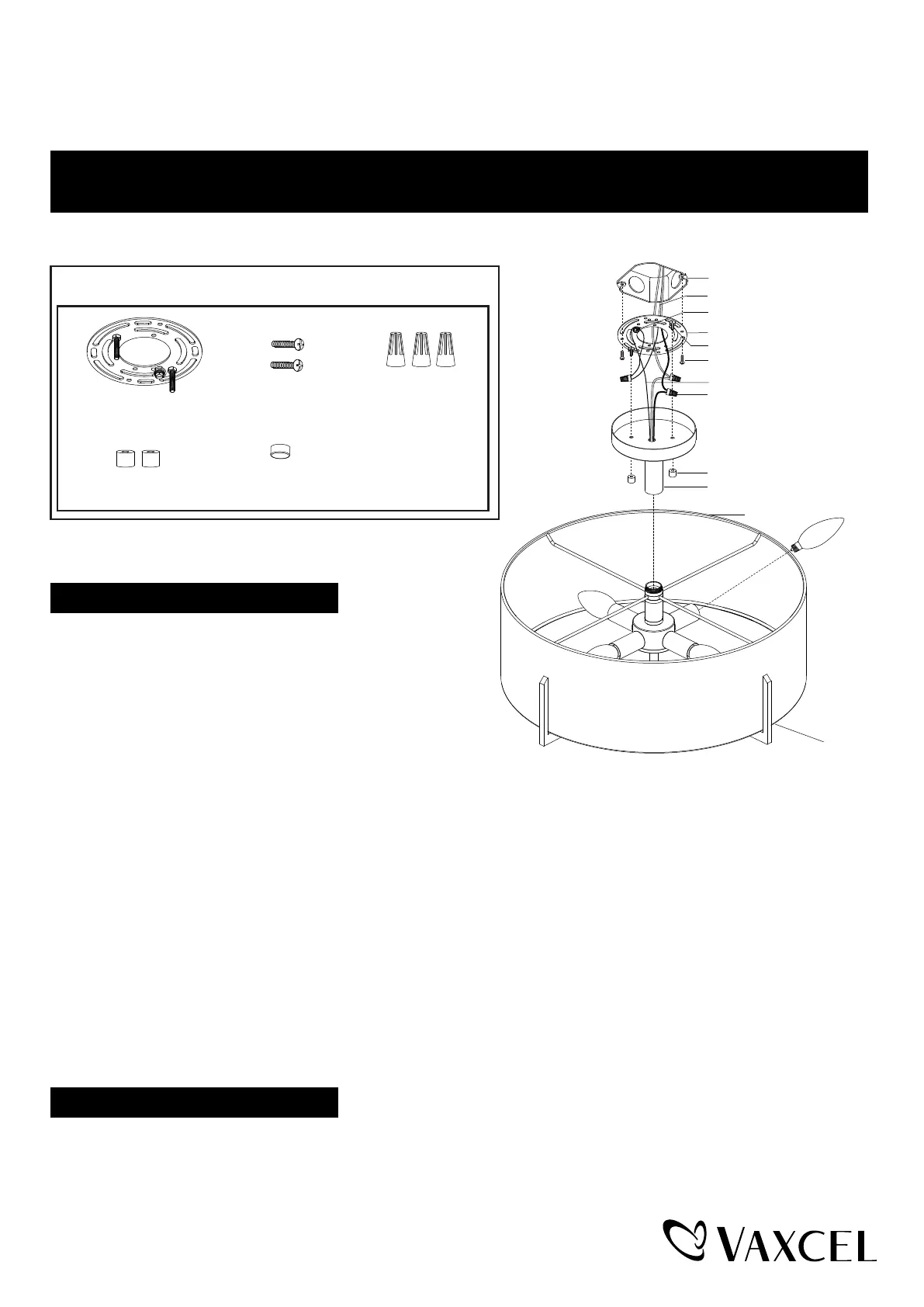

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ AND SAVE THIS INSTRUCTIONS.
C0277
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
.
Unscrew the bolt nuts(D), take out the mounting plate unit
(A)andthen attach to the outlex box by using two
mountingscrews (B).
2.Connect the tube to the fixture.
3.Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the power source to
the black wire from the fixture.
---Connect the neutral wire (white insulation) from the power source
to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw,
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
4.Install 4 x 60W Max. candelabra base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
5.Attach the fixture onto the mounting strap unit (A) and tighten it with two bolt nuts (D).
6.Attach the fixture to the mounting plate unit (A) by inserting the finial (E).
NOTE: Depth of threaded pipe may need to be adjusted to properly fit the finial.
221109
Wire Connector (C)Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
Finial (E)
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Tube
Fixture
Max. 40W
Type B Bulb
(not included)
Acrylic Diffuser
