1.Rod Connections:

a.Thread the fixture wire from the fixture through the lower rod, then

secure the lower rod onto fixture using the threaded pipe.

b.Thread the fixture wire through the middle rod, and then secure the

middle rod onto the lower rod using the threaded pipe.

c.Thread the fixture wire through the upper rod, and then secure the

upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 17" to 59". Use fewer rods if

shorter length is desired.

2.

Thread the fixture wire through the canopy kit, then secure the rod

assembly to the set threaded pipe of the canopy kit.

3.

Attach the

mounting strap unit (A)

to outlet box by using two mounting

screws

(B)

.

4.Pull out the source wires from the outlet box. Make wire connections

using wire connectors (C) as follows:

---Connect the smooth-coated wire (marked) from the fixture to the

black wire from the power source.

---Connect theribbed-coated wire (unmarked) from the fixture to the

white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit (A) with

the green ground screw, then connect it to the house ground

wire with a wire connector (C).

Carefully put the wires back into the outlet box.

5.Attach the canopy kit to the mounting strap unit (A) by inserting the

fixture mounting screws, then secure it with two bolt nuts (D).

6.Attach the glass shade to fixture, then secure it with the socket

ring.

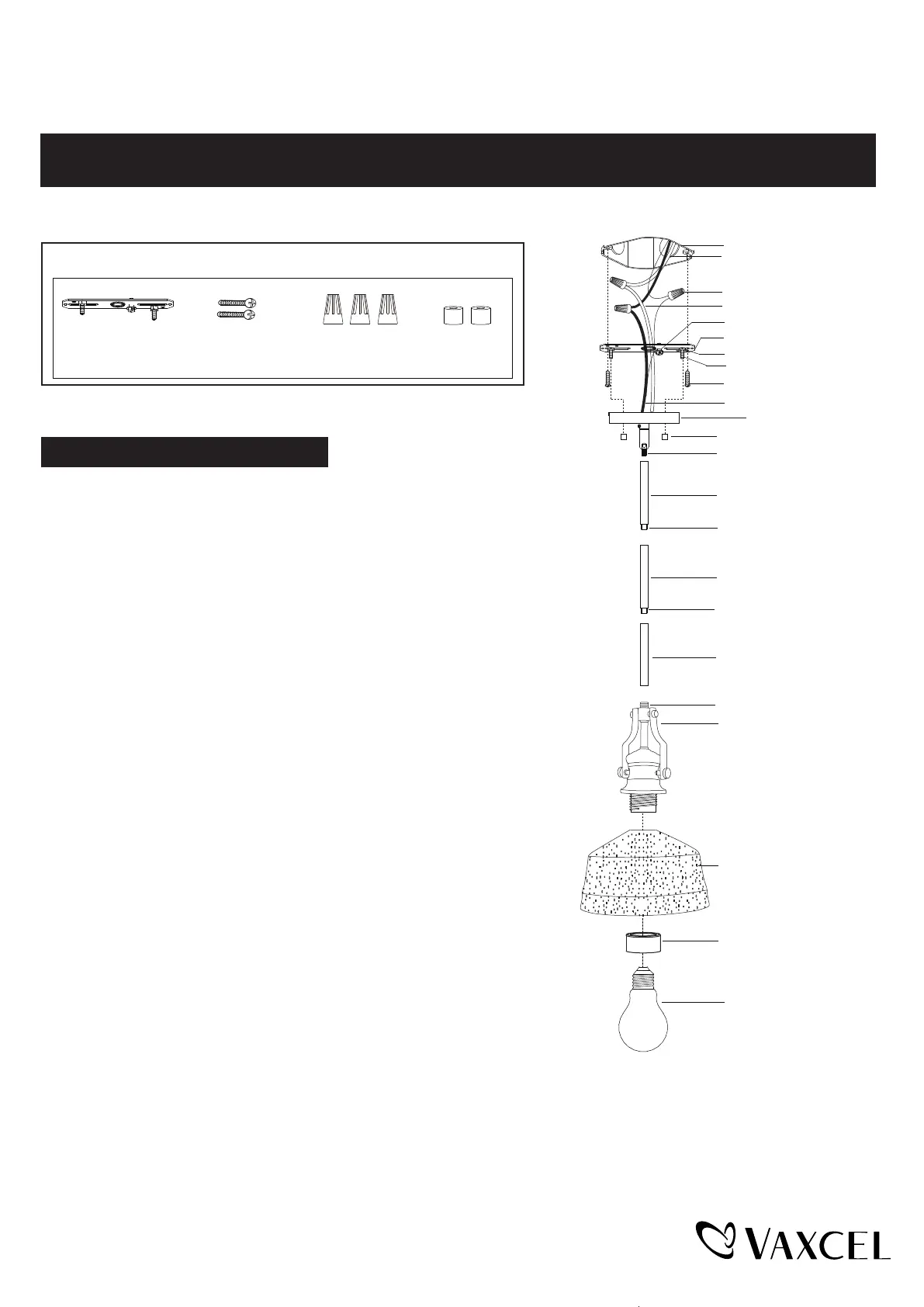

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ AND SAVE THIS INSTRUCTION.

P0380

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Canopy Kit

Outlet Box

House Ground Wire

Wire Connector (C)

Lock Nut

Mounting Strap (A)

Green Ground Screw

Mounting Screw (B)

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Fixture Wire

Fixture Mounting Screw

Fixture Ground Wire

Set Threaded Pipe

Bolt Nut (D)

Fixture

Glass Shade

Socket Ring

Max.60W Type A Bulb

(Not Included)

Threaded Pipe

Bolt Nut (D)

Mounting Screw (B)

Mounting Strap Unit (A)

Wire Connector (C)

220526

Page 1 / 2
