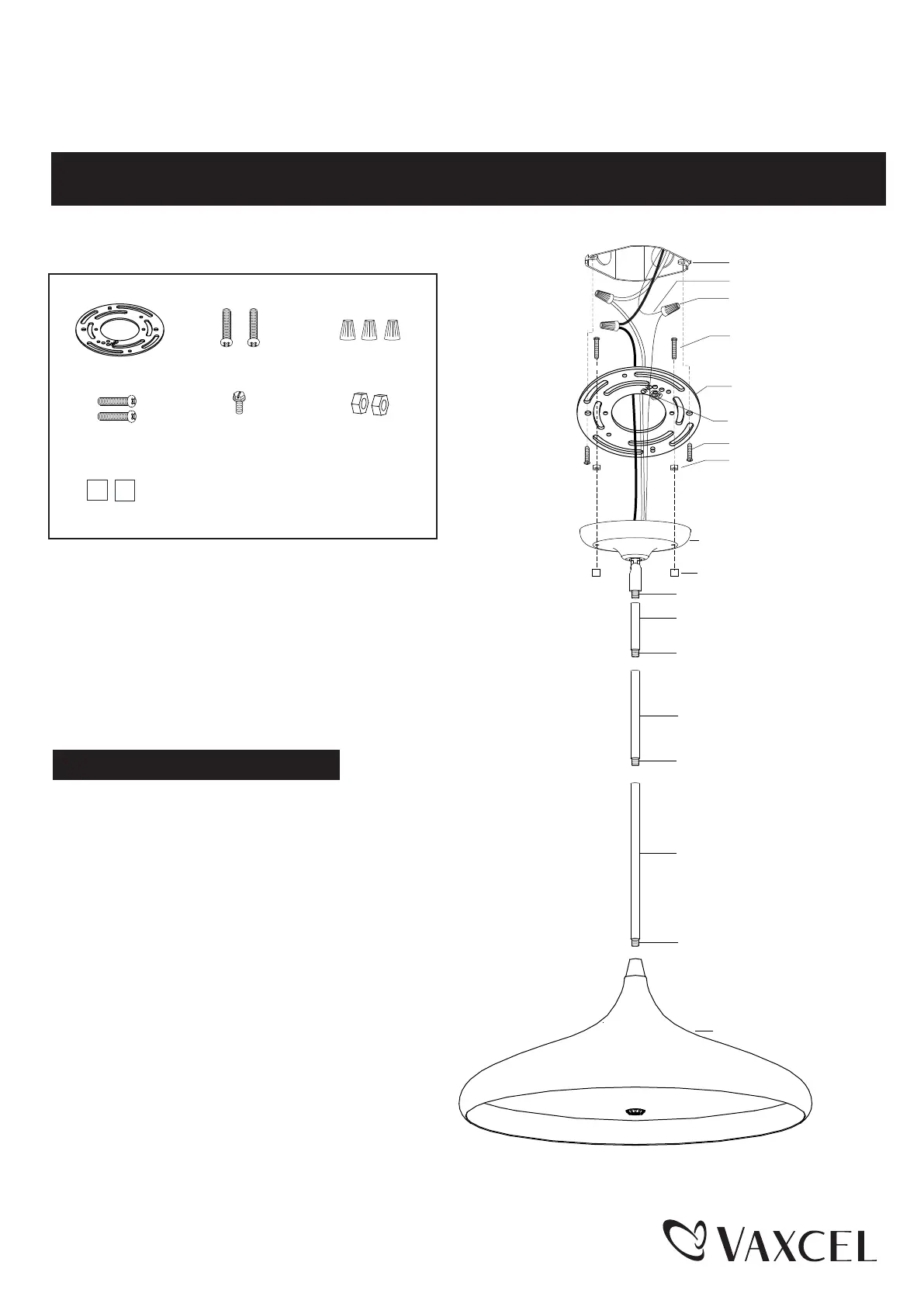

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0211 / P0212 / P0213 / P0214 / P0215 / P0216
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
161120
Mounting Plate (A)
Green Grounding
Screw (E)
Fixture Mounting
Screw(D)
Mounting Screw (B)Wire Connector (C)
Installation Steps
Lock Nut (F)
Upper Rod
Middle Rod
Lower Rod
Fixture
Ball Nut (G)
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture Canopy
Ball Nut (G)
Outlet Box
House Grounding Wire
Wire Connector(C)
Fixture Mounting Screw (D)
Mounting Plate (A)
Green Grounding Screw(E)
Lock Nut(F)
Mounting Screw(B)
Warning: LED electronics can be damaged by
electro static discharge (ESD)shock. Before
installation, discharge yourself by touching a
grounded bare metal surface to remove this
hazard. To avoid damage, do not touch the
LED module.
1. Attach two fixture mounting screws to the mounting
plate, and then secure it with two lock nuts. Adjust the
length of the fixture mounting screws if necessary.
2. Attach the mounting plate to the outlet box using two
mounting screws.
3
. Rod Connections:
a. Thread the fixture wires from the fixture through the
lower rod, and then secure the lower rod onto fixture
using the threaded pipe.
b. Thread the fixture wires through the middle rod, and
then secure the middle rod onto the lower rod using
the threaded pipe.
c. Thread the fixture wires through the upper rod, and
then secure the upper rod onto the middle rod using
the threaded pipe.
d. Thread the fixture wires through the fixture canopy,
and then secure the fixture canopy onto the upper
rod using the threaded pipe.
Note: Height adjustable from
(16" to 69" for P0211 P0212 P0213)
(13" to 66-1/2" for P0214 P0215 P0216).
Use fewer rods if shorter length is desired
