ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0441 / W0443
T
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2

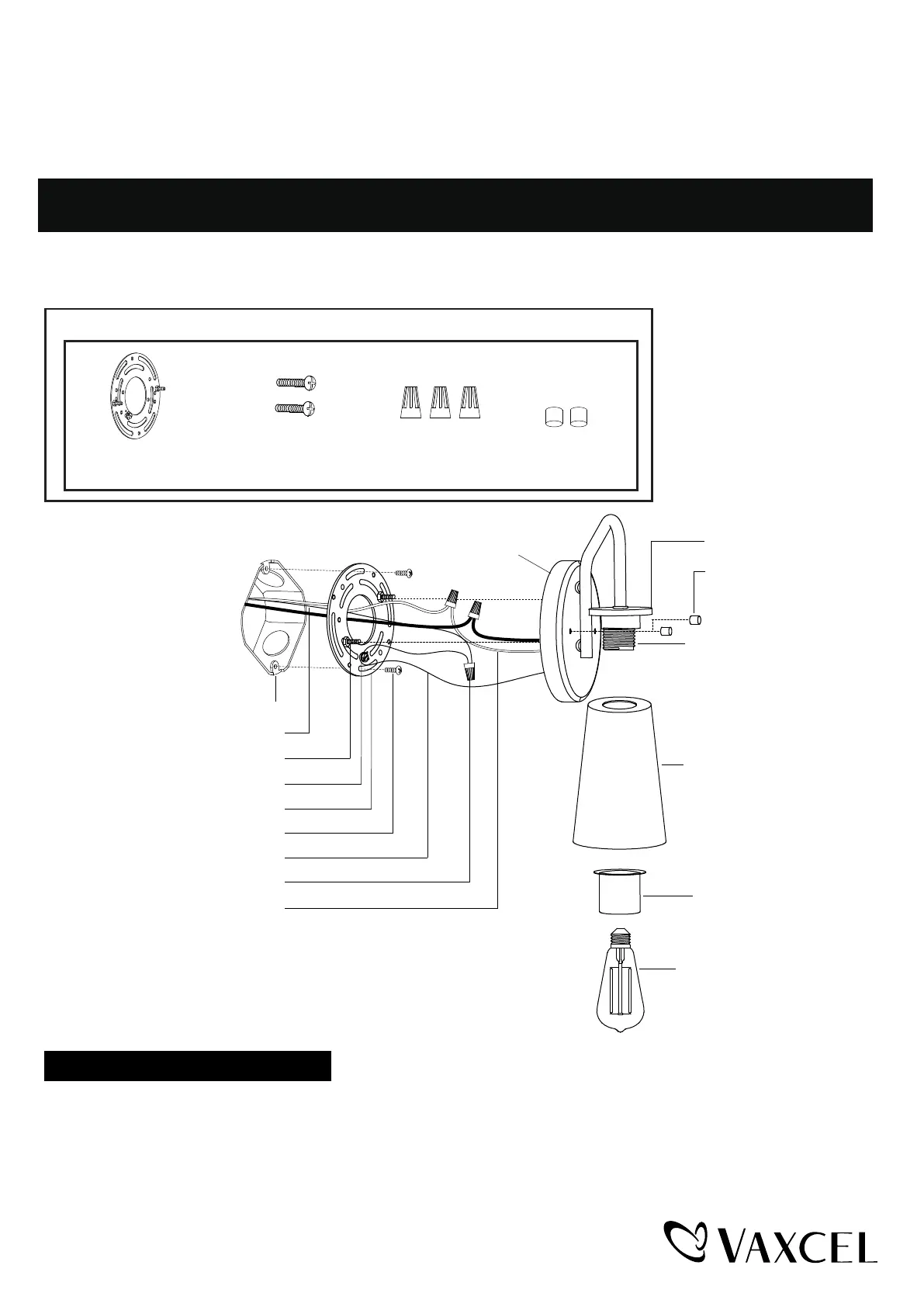

Wire Connector (C)
House Ground Wire
Backplate
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Bolt Nut (D)
Fixture Ground Wire
Fixture Mounting Screw
Fixture
Max. 60W Medium Base
Bulb (not included)
Socket Ring
Socket
Glass Shade
