House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Max. 60W

Medium Base bulb

(not included)

1

. Attach mounting plate unit (A) to the outlet box using two mounting

screws (B).

2. Attach the long threaded pipe (E) to coupling.

3. Install 4 X 60W Max. medium base bulbs (not included).

See relamping label at socket area or packaging for

maximum wattage allowed.

4. Slip the plastic plate and decorative cup (G) up

through the long threaded pipe (E), and then

secure them with the finial (H).

NOTE: The depth of hex nut in long threaded pipe

may need to be adjusted to properly fit the plastic

plate. The plastic plate should be flatly laid on three

brackets, and the frosting of the plastic plate should

be faced down.

5. Rod Connections:

a. Thread the fixture wire from the fixture through the

lower rod, and then secure the lower rod onto fixture

using the threaded pipe.

b. Thread the fixture wire through the middle rod, and then

secure the middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, and then secure the upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 15-3/4" to 69-3/4". Use fewer rods if shorter length is desired.

6.

Thread the fixture wire through the canopy kit, and then secure the rod assembly to the set

hreaded pipe

of the canopy kit.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instruction.

P0392

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

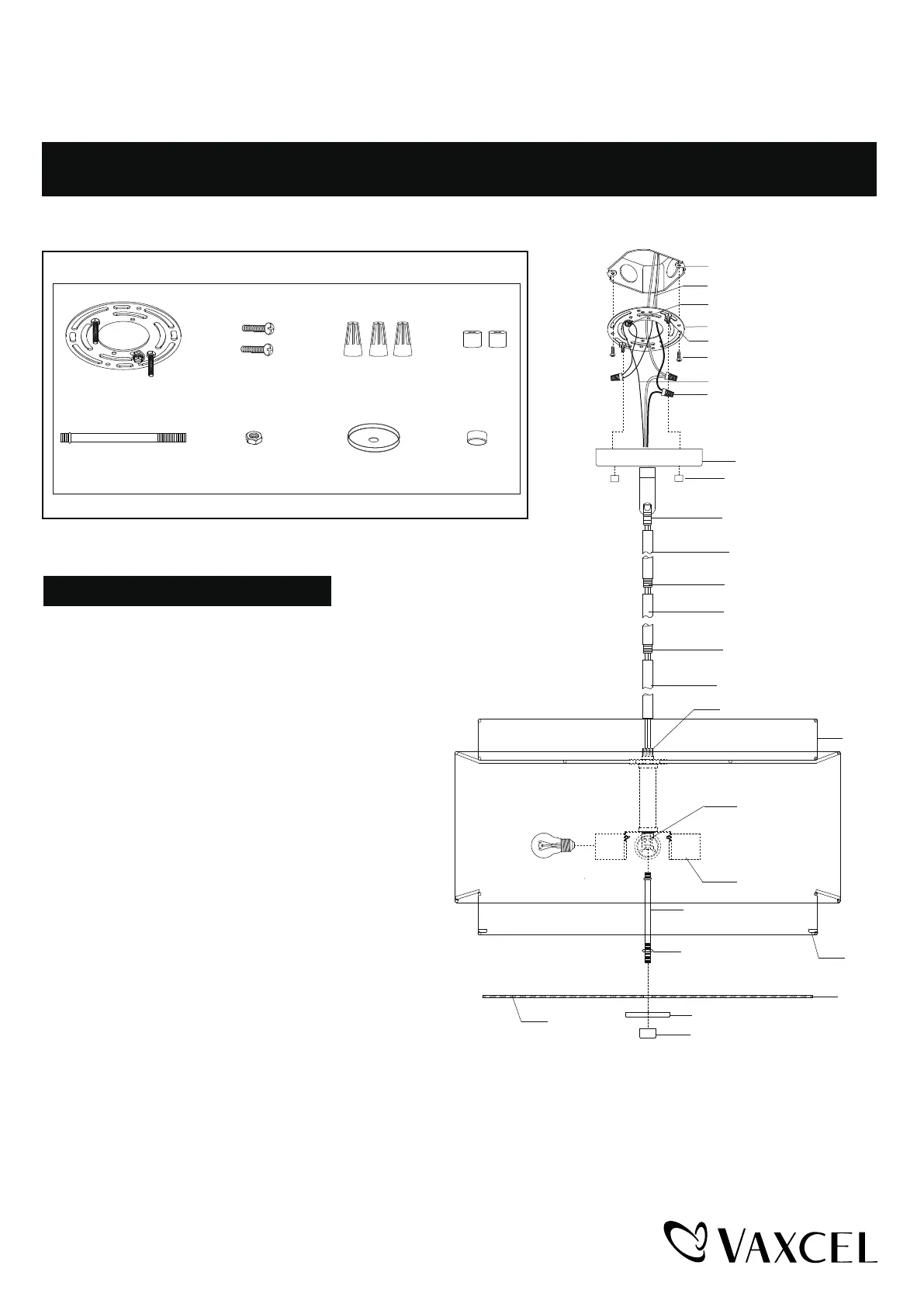

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Canopy Kit

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Threaded Pipe

Socket

Coupling

Hex Nut (F)

Long Threaded Pipe (E)

Decorative Cup (G)

Finial (H)

Plastic Plate

Frosting

Fabric Shade

Set Threaded Pipe

Bolt Nut (D)

Hex Nut (F)

Long Threaded Pipe (E)

Decorative Cup (G)

Finial (H)

Bracket

Wire Connector (C) Bolt Nut (D)Mounting Screw (B)

Mounting Plate Unit (A)
