ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0401

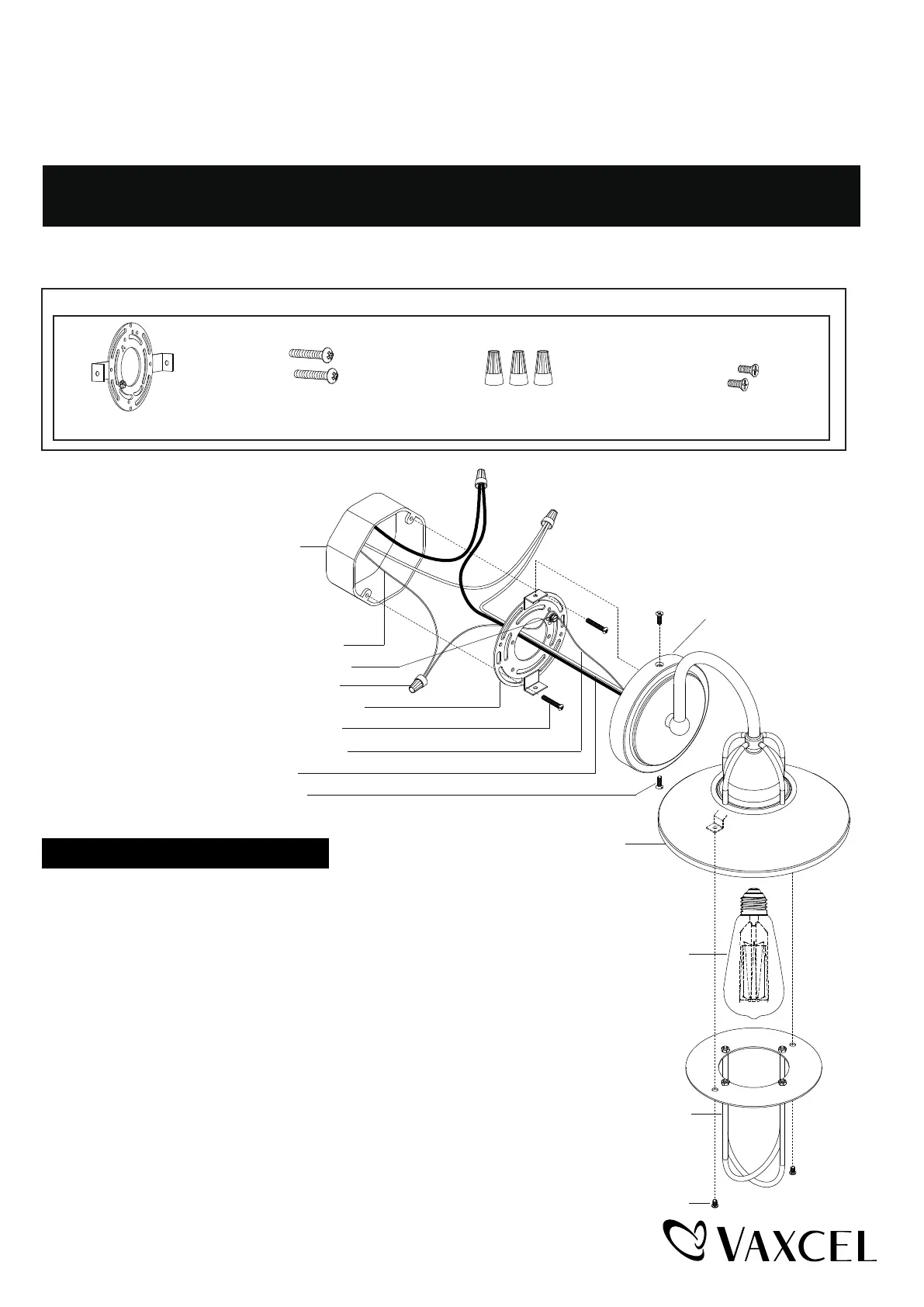

Mounting Plate Unit (A)Wire Connector (C)Mounting Screw (B)
Set screw (D)
Turn off the power at fuse or circuit box
Installation Steps
1.
Remove the mounting plate unit (A) from the backplate
by disassemblying the set screws (D).
2
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
Note: Make sure that two set holes are lined up
horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black
wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white
wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A)
with the green ground screw, then connect it to the house ground wire
with the wire connector (C).
Carefully put all of the wires back into the outlet box.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Fixture Wire
Set Screw (D)
Mounting Screw (B)
Fixture
Max.60W Type A / ST Bulb
(not included)
Metal Frame
Assembly Screw
Outlet Box
Backplate
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
220115
