ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T

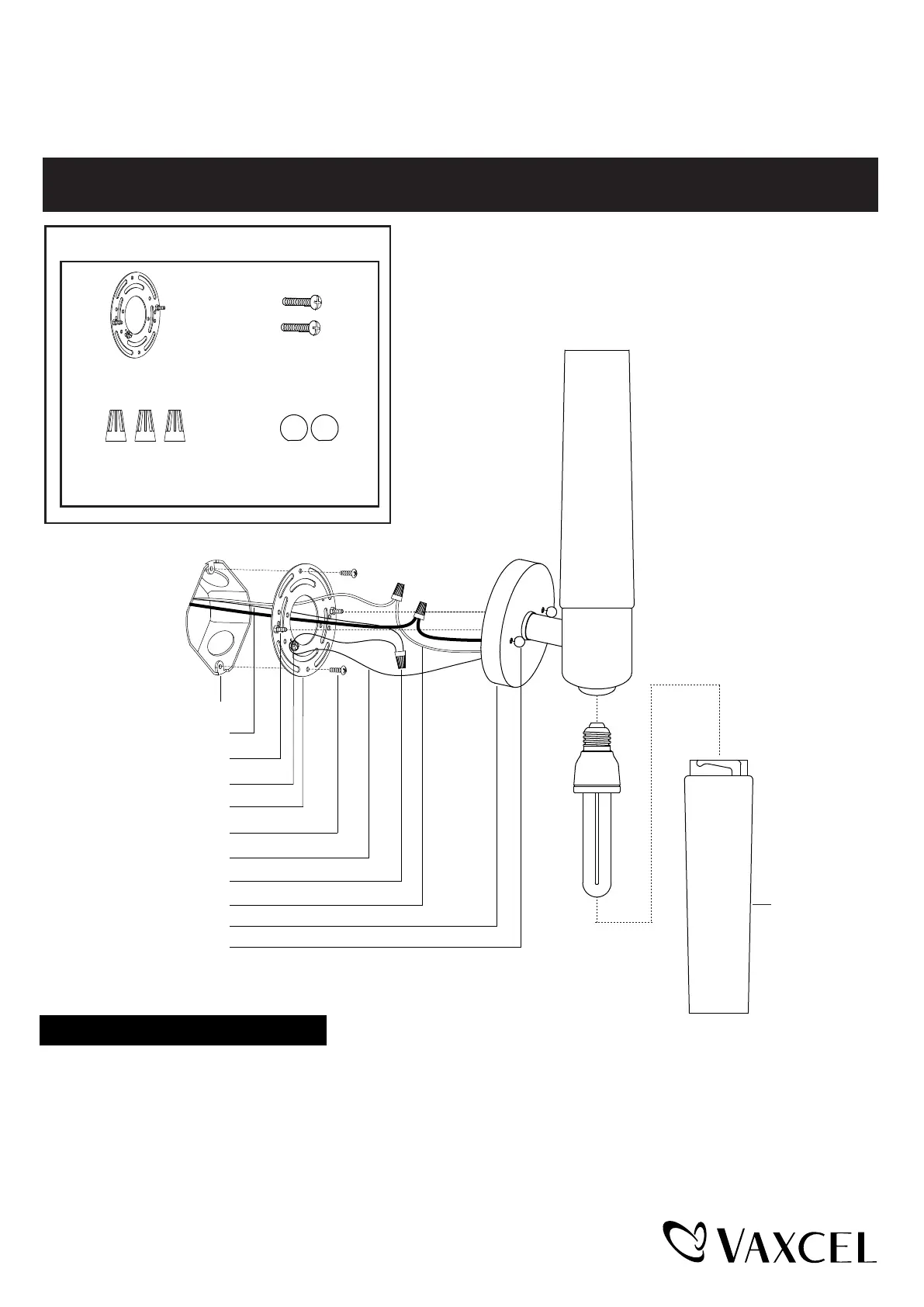

Hardware Package (included):

Mounting Screw (B)

Wire Connector (C)Bolt Nut (D)

Mounting Plate Unit (A)

Page 1 / 2

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Fixture Mounting Screw

Mounting Plate Unit (A)

Fixture Wire

Backplate

Bolt Nut (D)

Fixture Ground Wire

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two fixture mounting screw are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box.

Installation Steps

W0457 / W0458

W

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Glass Shade

Max. 60W Medium Base

Bulb (not included)

231115
