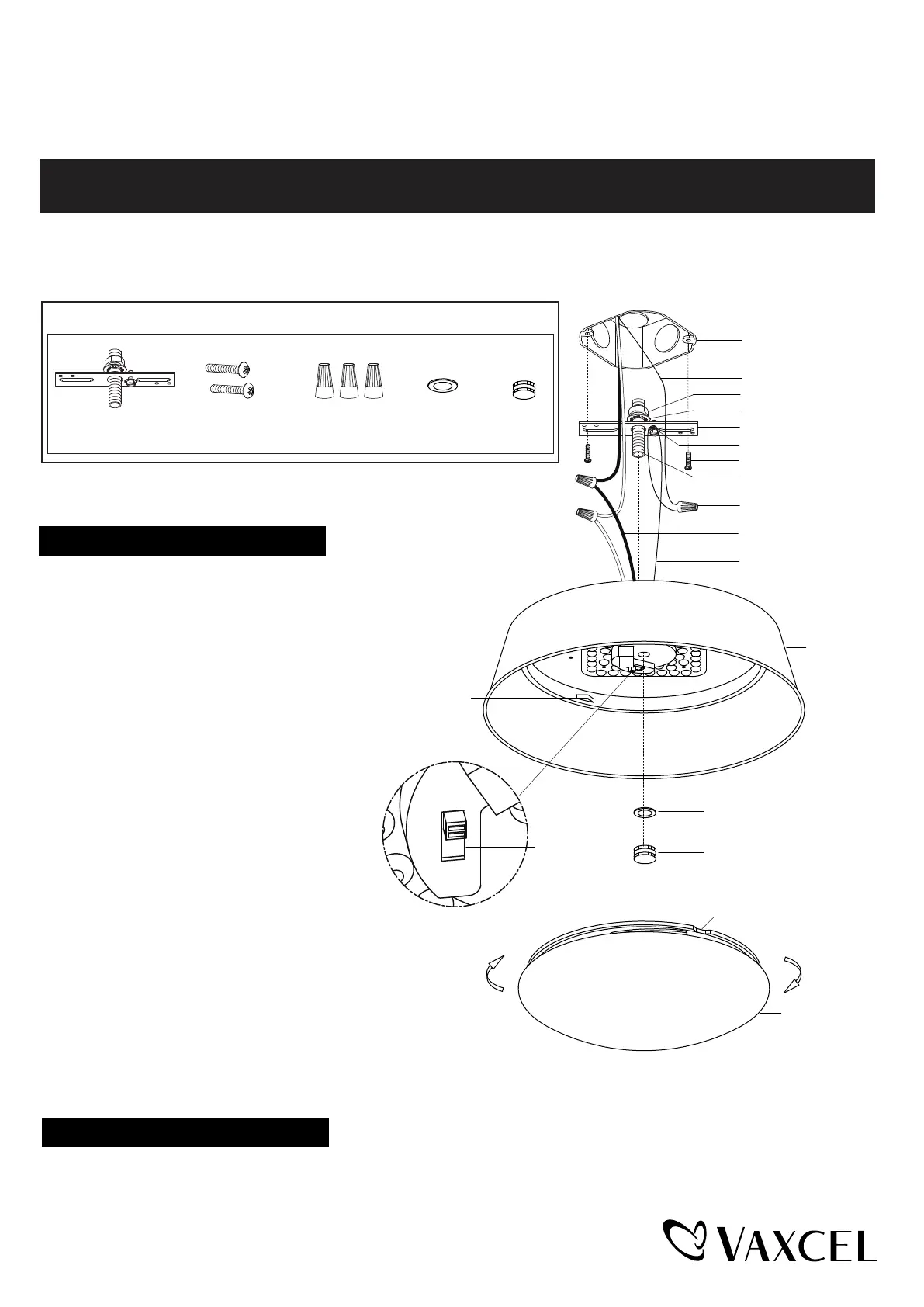

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
C0303
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Rubber Pad (D)Finial (E）Mounting Strap Unit (A)
Turn off the power at fuse or circuit box.
Installation Steps
1. Attach the mounting strap unit (A) to the
outlet box by using two mounting screws (B).
Note: The depth of threaded pipe on the
mounting strap unit may need to be
adjusted to properly fit the fixture.
2. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation)
from the fixture to the white wire from the
power source.
• Attach the fixture ground wire (bare wire) to
the mounting strap unit (A) with the green
ground screw, then depending on local code,
connect it to the house ground wire with the
wire connector (C).
Carefully put all of the wires back into the outlet box.
3. Attach the ceiling pan to the mounting strap unit (A) by
aligning and inserting the threaded pipe from the mounting
strap unit (A) into the center hole on the ceiling pan, then
secure the ceiling pan with the rubber pad (D) and the finial (E).
4. Attach the shade to the ceiling pan by aligning studs and slots,
then turn it clockwise until it is locked in place.
Turn on the power at fuse or circuit box.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Page 1 / 2
Mounting Screw (B)
Green Ground Screw
Wire Connector (C)
House Ground Wire
Fixture Ground Wire
Outlet Box
Fixture Wire
Threaded Pipe
Mounting Strap Unit (A)
Hex Nut
Washer
Ceiling Pan
Rubber Pad (D)
Finial (E)
Slot
Toggle Switch
Stud
Shade
3000K
4000K
5000K
231109
