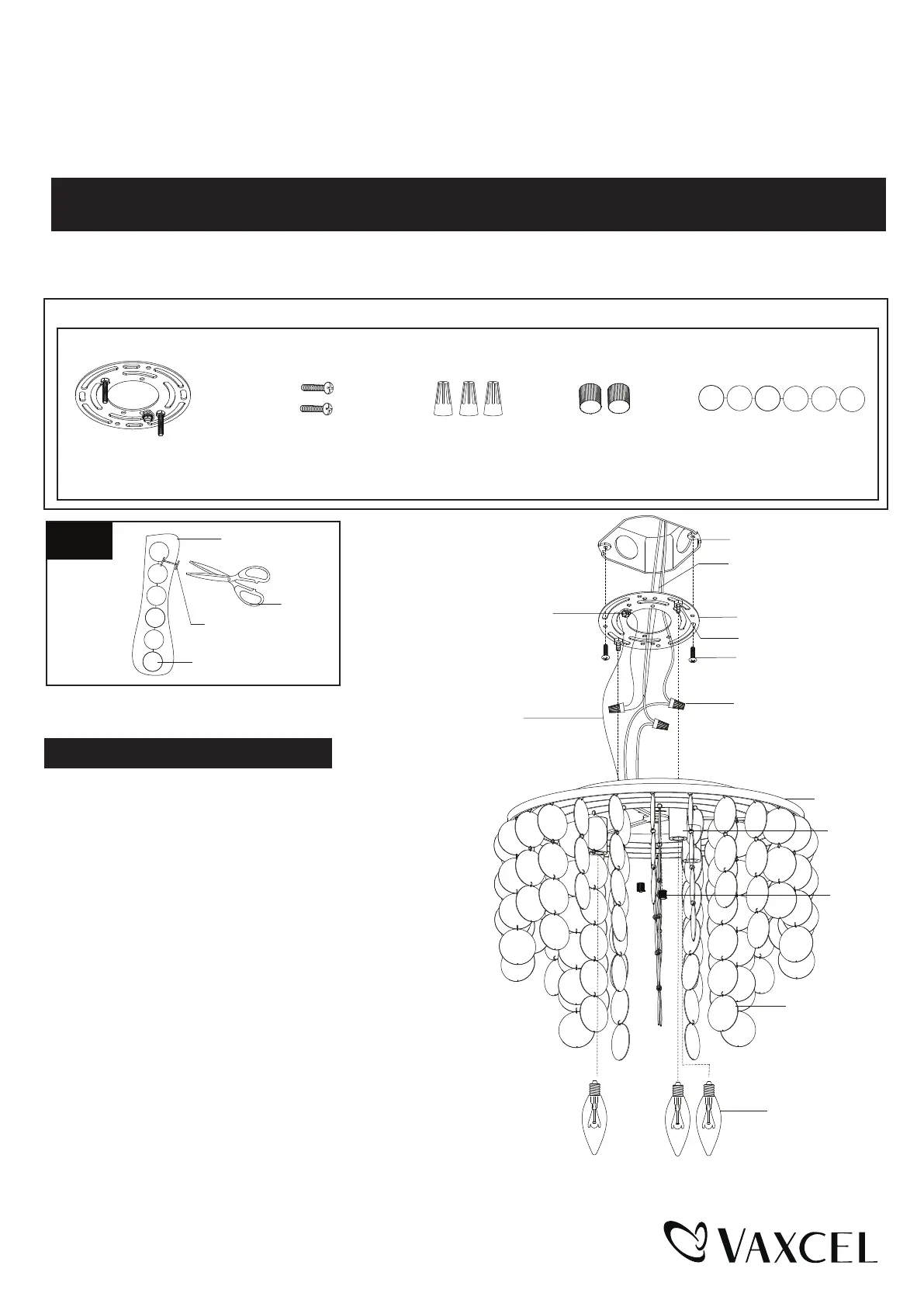

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0285
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
or circuit
box.
Outlet Box
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Fixture Mounting Screw (E)
Fixture
Socket
Mounting Plate Unit (A)
Green Ground Screw (C)
Mounting Screw (B)
Pure Shell (E)
Pure Shell (E)
Lock nut
Bolt nut (D)
1. Cut the "H" plastic buckles with scissor when take down
the PE bags. (See Fig.1)
2. Remove the mounting plate unit (A) from fixture by
unscrewing two bolt nuts (D).
3. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
4. Pull out the source wires from the outlet box. Make
wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture
to the black wire from the power source.
---Connect the neutral wire (white insulation) from the
fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting
plate unit (A) with the green ground screw. Then connect it
to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy to the mounting plate unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
Max.60W Type B Bulb
(not included)
Installation Steps
Pure Shell
PE Bag
Scissor
“H”Plastic Buckle
Fig.
1
Wire Connector (C)Mounting Screw (B)Mounting Plate Unit (A)Bolt Nut (D)
Page 1 / 2
230213
