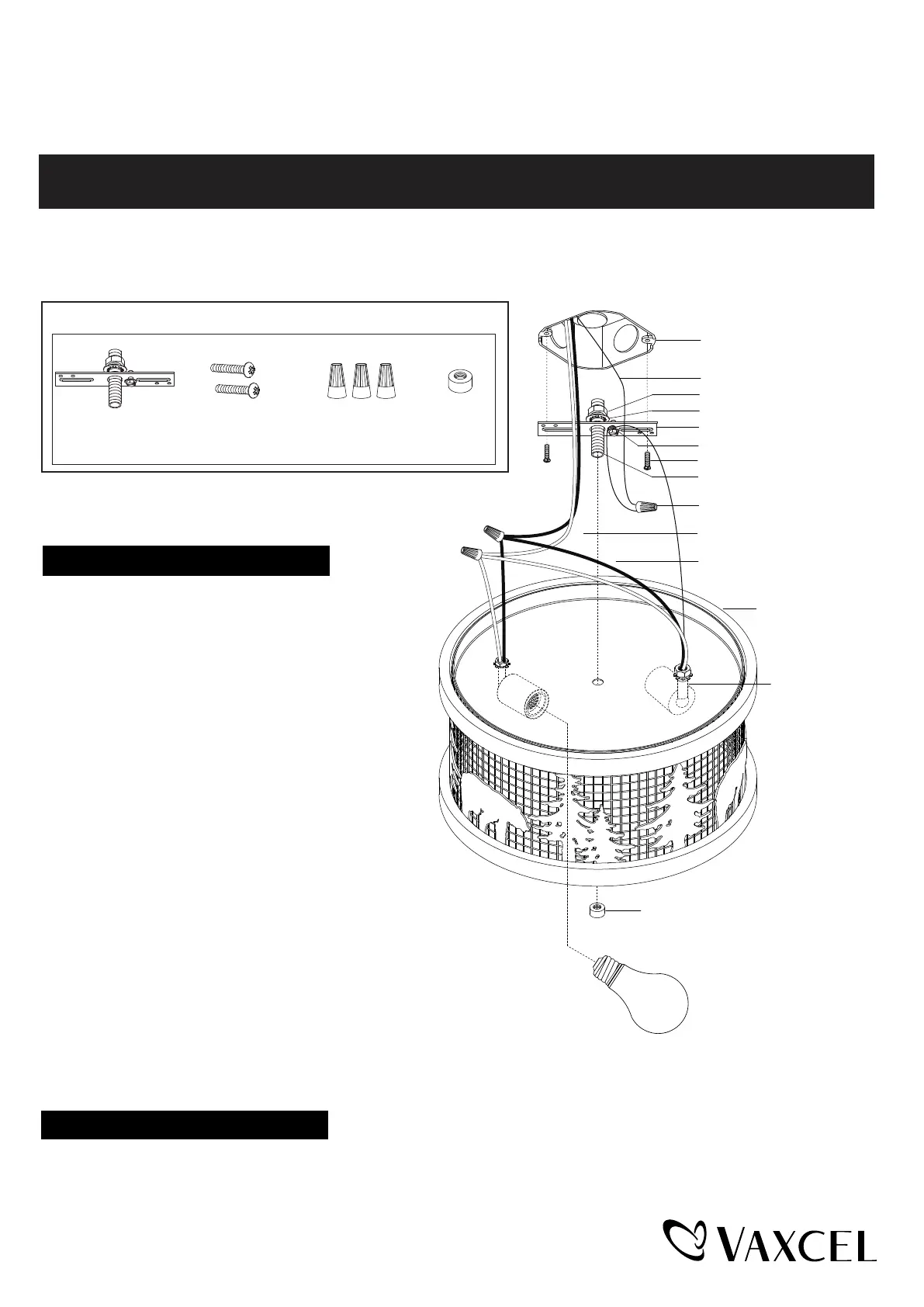

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

C0262

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Finial (D）Mounting Strap Unit (A)

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

• Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from

the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the

mounting strap unit (A) with the green ground screw.

Then, depending on local code, connect it to the house

ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

3. Remove the finial (D) from the mounting strap unit (A).

4. Attach the ceiling pan to the mounting strap unit (A) by

inserting threaded pipe into the center hole the ceiling

pan and secure it with the finial (D).

NOTE: Depth of threaded pipe may need to be

adjusted to properly fit the finial.

6. Install 2 x 60W max. medium base bulbs (not included). Check

relamping label at socket area or packaging for maximum wattage allowed.

Turn on the power at fuse or circuit box.

Mounting Screw (B)

Green Ground Screw

Wire Connector (C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Fixture Wire

Threaded Pipe

Mounting Strap Unit (A)

Hex Nut

Washer

Ceiling Pan

Socket

Finial (D)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Max.60W Type A Bulb

(not included)

220228
