Important to Know:
1.If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2.This fixture requires a 120 VAC, 60 Hz power
source.
3.For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 24 W
Working Temperature Range: -13°F ~ 113°F

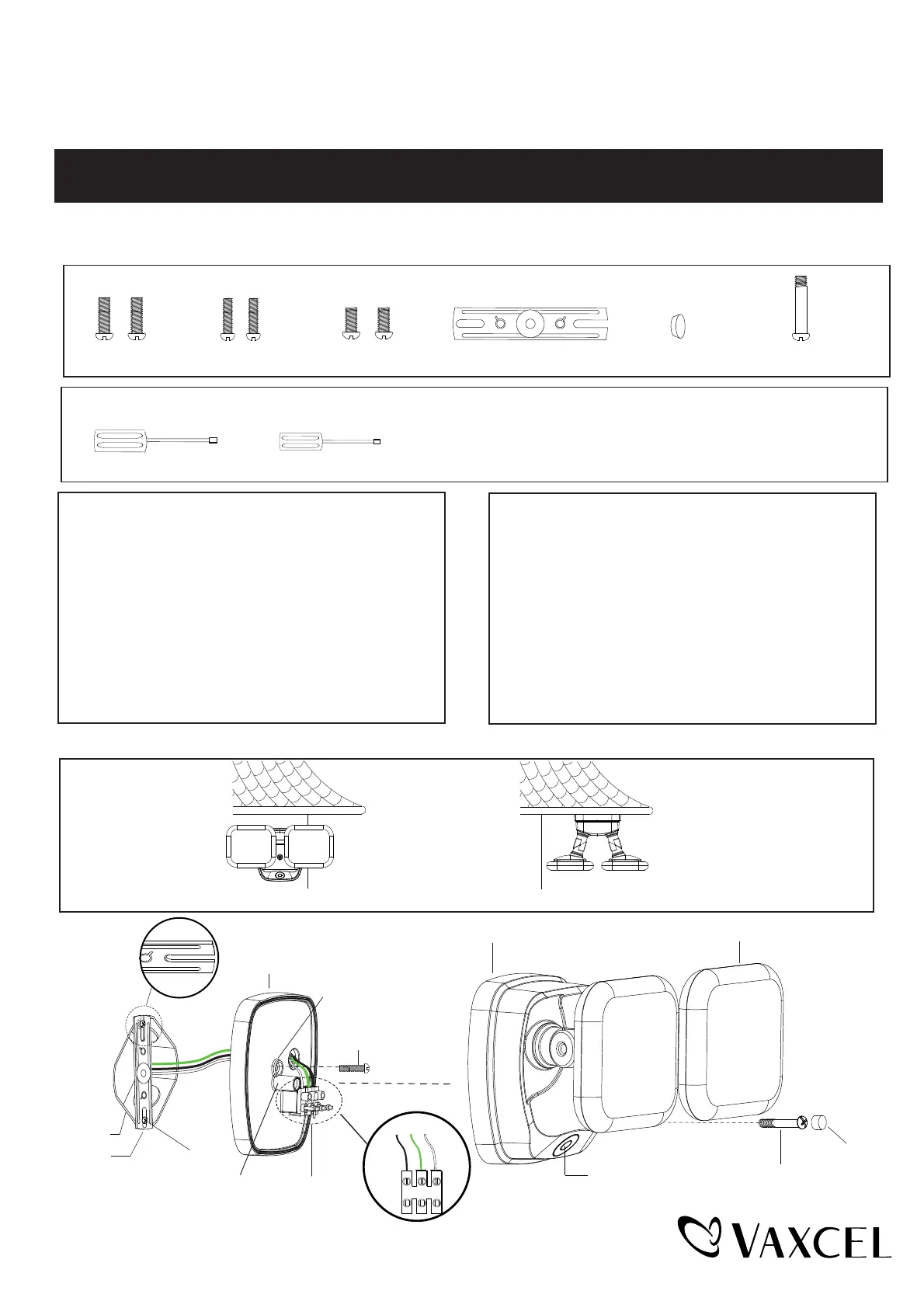

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ AND SAVE THESE INSTRUCTIONS.
T0616 / T0617
Features:
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Eave Mounted
1.Energy saving LED fixture.
2.
4.
Sensor
Backplate
Light Fixture
Fixture Mounting Screw
Decorative cover
Tools Needed:
1.Phillips-head screwdriver for attaching mounting screws to
mounting strap, mounting bracket and fixture to mounting bracket.
2.1/8” wide flat-head screwdriver for connecting the source wires
into the wiring terminal station on the mounting bracket.
(1) Philip-head Screwdriver
(2) 1/8" wide Flat-head Screwdriver
Photocell automatically keeps the light OFF during
daylight hours and automatically turns the light ON
during evening hours.
The light will DIM to low level brightness
automatically after 6 hours of evening illumination
The wall switch that the light is connected to can be
used to manually override and change functionality
and settings of certain modes.
Mounting
Strap
Outlet Box
Mounting Screw
Mounting Bracket
FRONT
Terminal
Station
L GND N
Mounting Bracket
Hole
Mounting Screw
Fixture Mounting
Screw Hole
3.
Hardware Package (included):
Mounting Screw X2
#8/32X1/2 in
Fixture Mounting Screw
Mounting Strap
Mounting Screw X2
#6/32 X1/2 in
Mounting Screw X2
#10/24 X1/4 in
Decorative cover
