Installation Steps
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0471
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

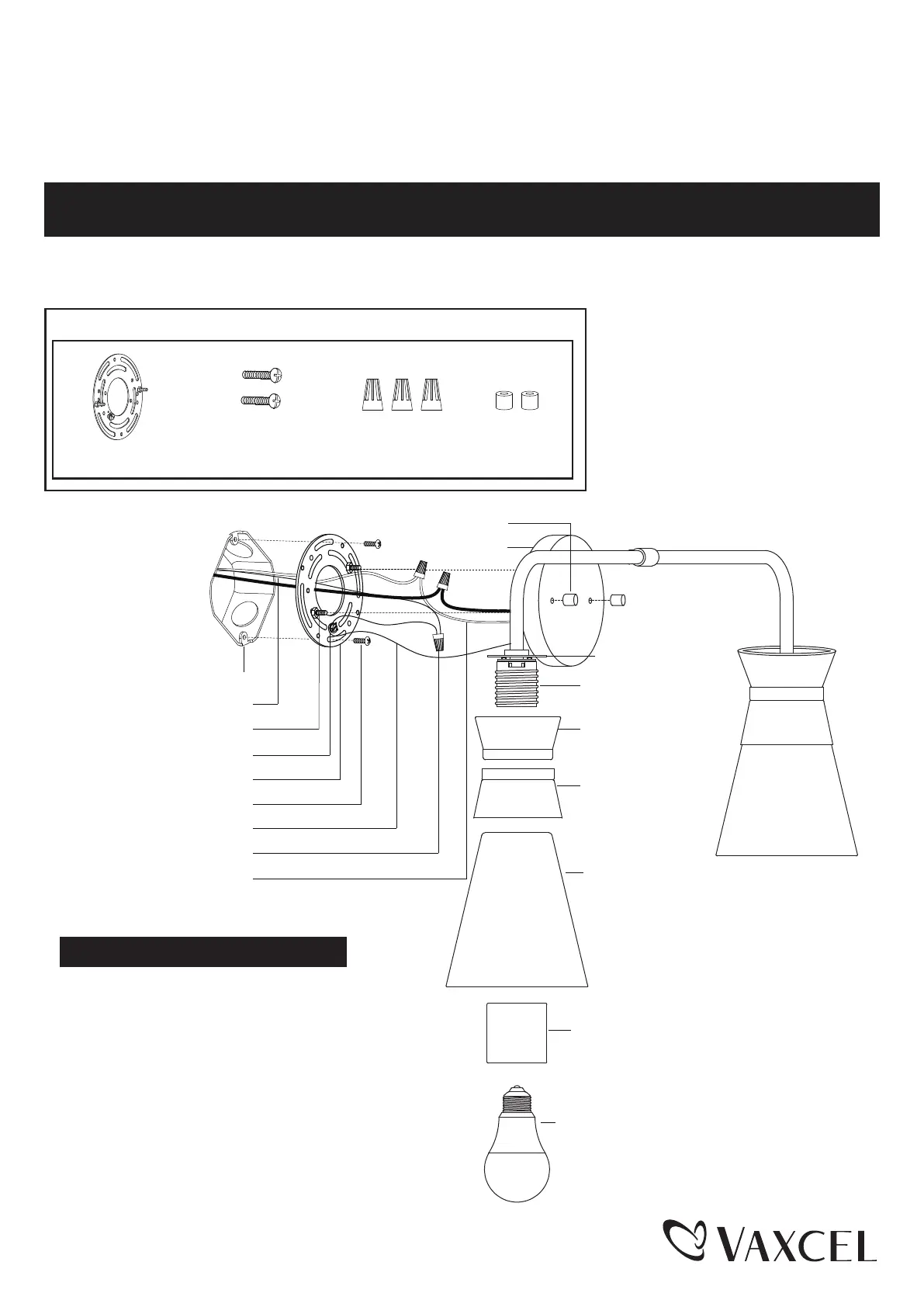

Hardware Package (included):
Mounting Screw (B)Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Page 1 / 2
Turn off the power at fuse or circuit box.
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Fixture Ground Wire
Fixture Mounting Screw
Backplate
Bolt Nut (D)
Max. 60W Medium
Base bulb (not included)
Socket Ring
Top Glass Shade
Metal Ring
Bottom Glass Shade
Glass Holder
Socket
1. Unscrew the two bolt nuts (D), remove the
mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B). Adjust
the length of the preinstalled fixture mounting
screws if necessary.
Note: Make sure that the fixture mounting
screws are lined up horizontally to make
the fixture level.
240430
