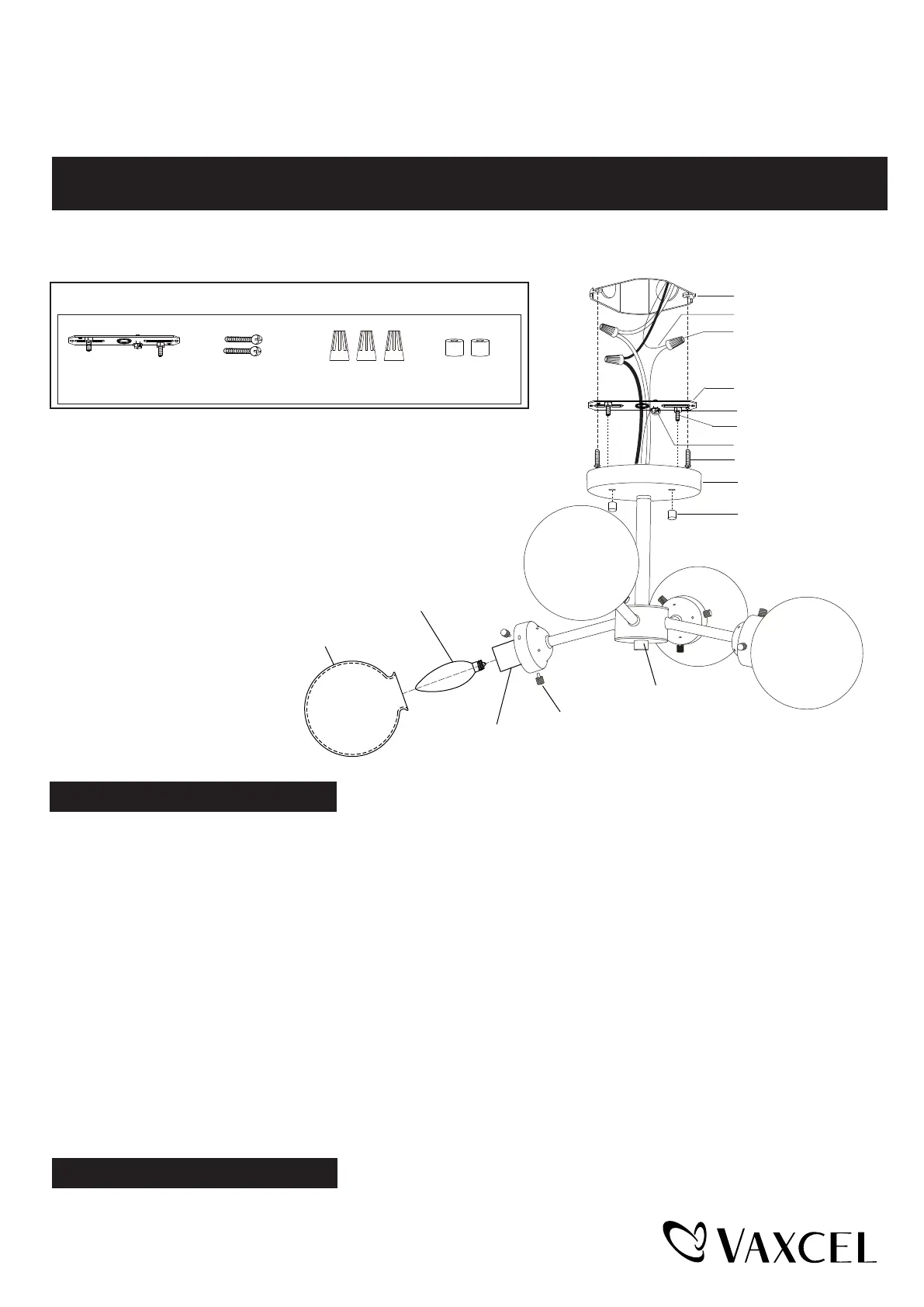

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Canopy

Bolt Nut (D)

Fixture light

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0268

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Outlet Box

House Ground Wire

Wire Connector (C)

Fixture Mounting Screw)

Lock Nut

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Page 1 / 2

220520

Turn off the power at fuse or circuit box

Installation Steps

Turn on the power at fuse or circuit box

1. Unscrew two bolt nuts (D) and remove mounting strap unit (A) from the canopy.

2.

Attach the mounting

strap unit (A)

to outlet box by using two mounting screws

(B)

.

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

---Connect the black wire from the fixture to the black wire from the power source.

---Connect the white wire from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting strap with the green ground screw, then connect it to the

house ground wire with a wire connector.

Carefully put the wires back into the outlet box.

4. Attach the canopy onto the

mounting

strap unit (A) and tighten it with two bolt nuts (D).

5. Install 4 X 40W Max. candelabra base bulbs (not included). Check relamping label at socket area or packaging for

maximum wattage allowed.

6. Attach the glass shade onto the socket and tighten it with set screws.

Max. 40W Type B Bulb

(not included)

Glass Shade

Socket

Set Screw

Hardware Package (included):

Bolt Nut (D)

Mounting Screw (B)

Mounting Strap Unit (A)

Wire Connector (C)
