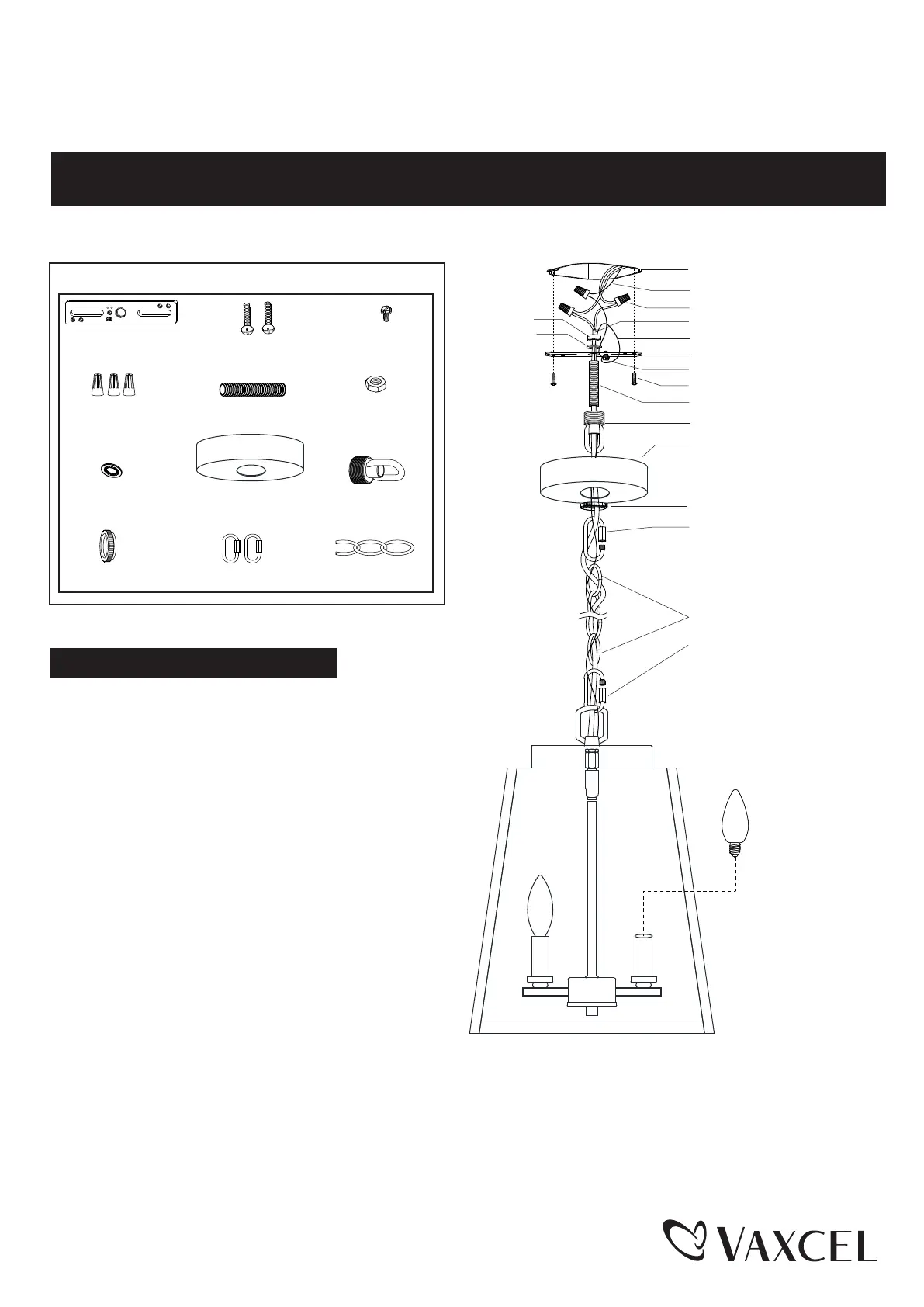

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0289
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
181107
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (F)
Wire Connector (D)
Canopy (H)
Top Loop (I)
Collar (J)
Threaded Pipe (E)
Washer (G)
Loop Lock (K)
Chain (L)
1. Tighten the metal frame onto the fixutre body, then install the remainder.
2. Attach the threaded pipe to the mounting strap, and then secure it
with a washer and a hex nut.
3. Attach the mounting strap to the outlet box by using two
mounting screws.
4. Secure the top loop to the threaded pipe.
5. Secure the tube onto the stem of the fixture, thread
fixture wires through threaded tube and end of loop first.
6. Connect the chain:
- Determine length of chain needed to achieve
desired fixture height. (To remove excess chain
section, use pliers to bend link open.)
- Weave the fixture wires and fixture grounding wire
through the chain, collar and canopy.
7. Connect one end of the chain to the loop using
a loop lock.
8. Connect the other end of the chain to top loop by using the other loop lock .
9. Thread the fixture wire and fixture grounding wire through the top loop, threaded pipe and mounting strap.
Outlet Box
House Grounding Wire
Wire Connector (D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe (E)
Canopy(H)
Top Loop(I)
Hex Nut(F)
Washer(G)
Collar(J)
Loop Lock(K)
Loop Lock(K)
Chain(L)
Bulb Type B Max.60W
(not included)
