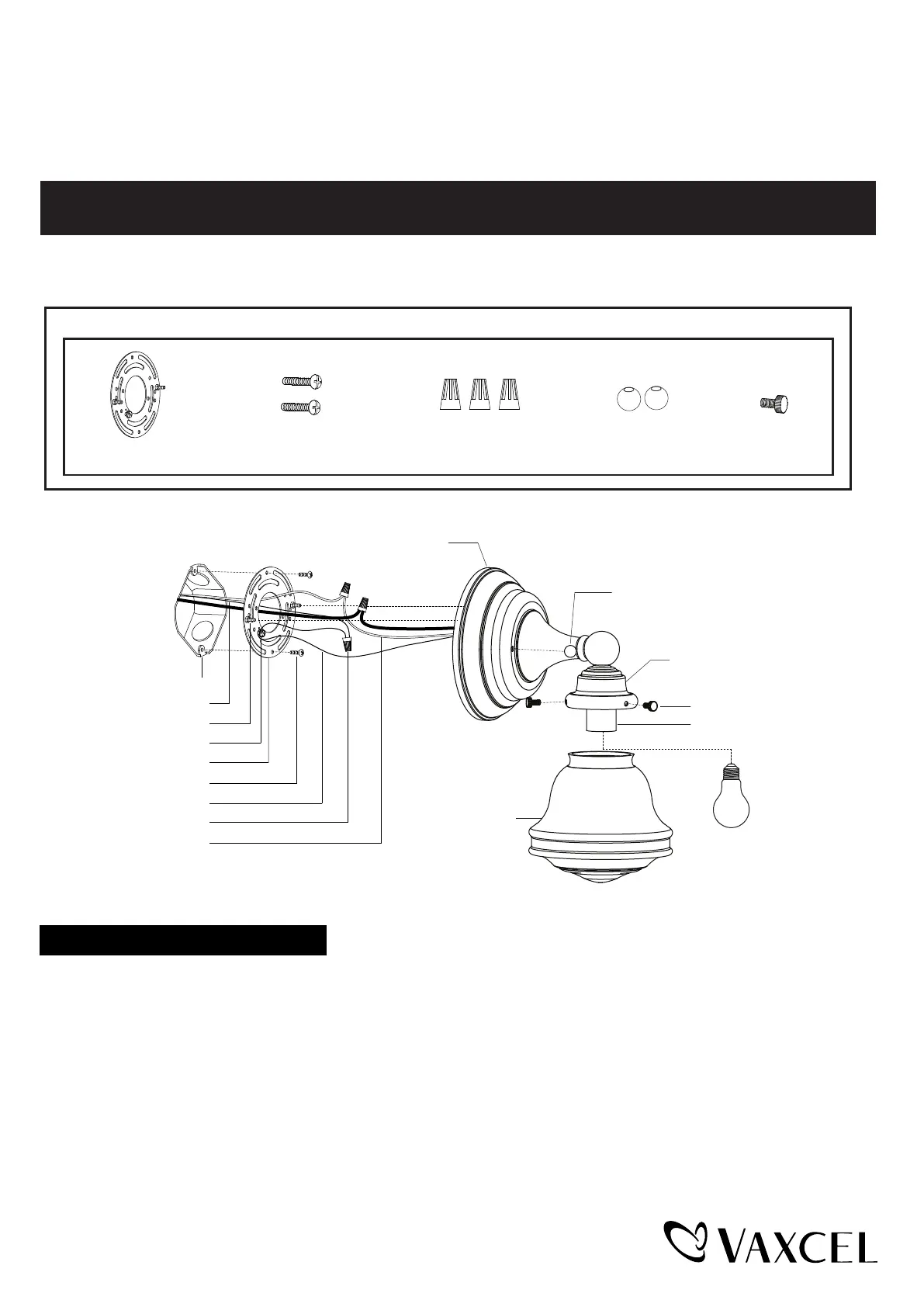

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0166 / W0167 / W0188 / W0305 / W0451
W
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)
Set Screw (E)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Mounting Plate Unit (A)
Fixture Wire
Fixture Ground Wire
Wire Connector (C)
Glass Shade
Bolt Nut (D)
Socket
Set Screw (E)
Backplate
Glass Holder
(not included)
Max. 60W Medium Base bulb
Turn off the power at fuse or circuit box.
Installation Steps
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
Page 1 / 2
231122
