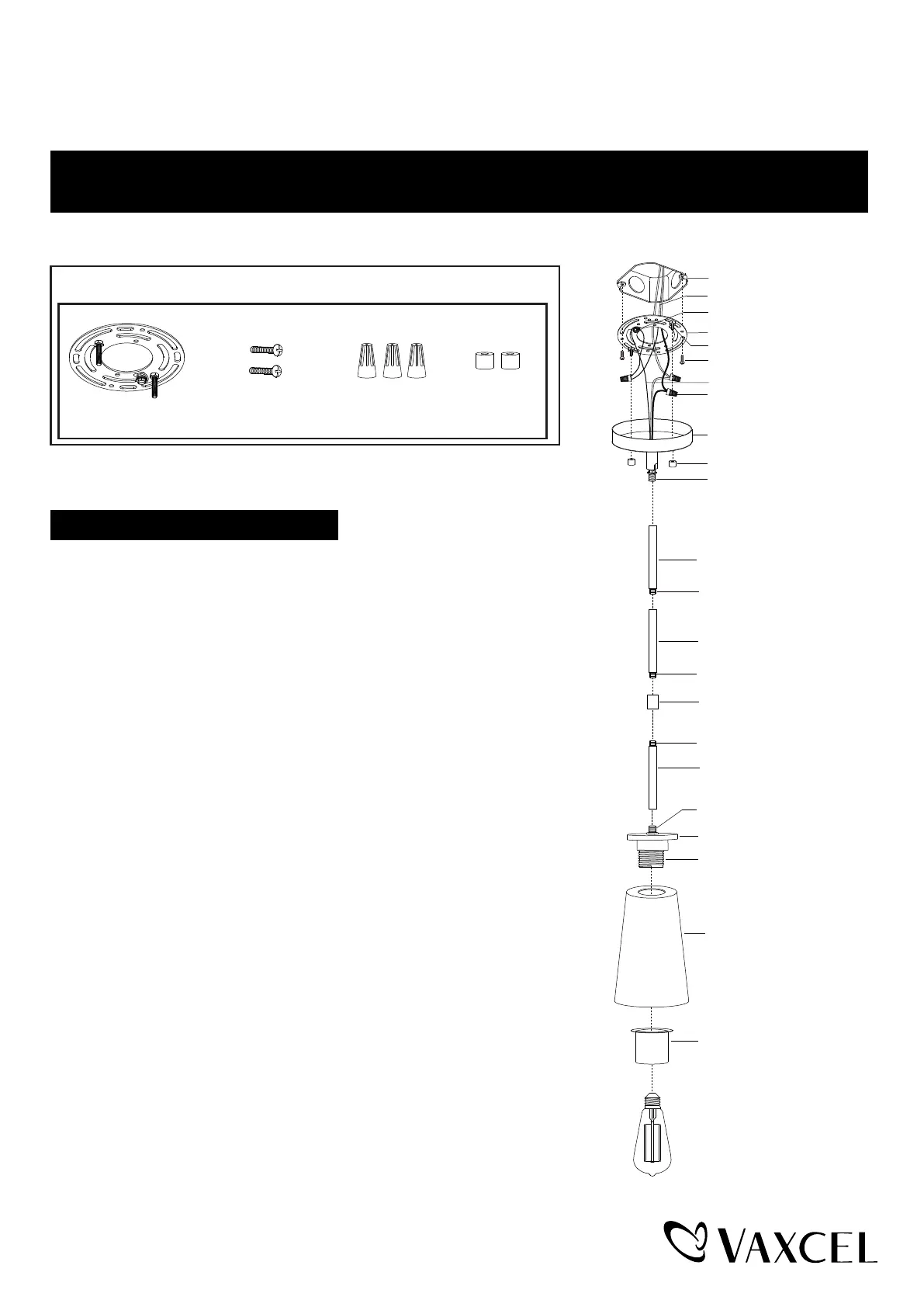

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

P0396 / P0397

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

1

. Unscrew the bolt nuts (D), take out the mounting plate unit (A) and then

attach to the outlet box by using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire through the lower rod, then secure the lower rod

onto tube using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure the middle

rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the upper rod

onto the middle rod using the threaded pipe.

Note: Length adjustable from 12-3/4" to 54-3/4". Use fewer rods if shorter

length is desired.

3. Thread the fixture wire through the canopy kit, then secure the rod assembly to

the set threaded pipe of the canopy kit.

4. Pull out the source wires from the outlet box. Make wire connections using

wire connectors (C)

as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black

wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white

wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting plate unit (A)

with the green ground screw, then connect it to the house ground wire

with the wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the canopy kit onto the mounting plate unit (A) and tighten it with

two bolt nuts (D).

Hardware Package (included):

Wire Connector (C)

Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (D)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Canopy Kit

Page 1 / 2

Max. 60W Medium Base

Bulb (not included)

Socket Ring

Socket

Fixture

Glass Shade

Upper Rod

Middle Rod

Middle Rod-1

Threaded Pipe

Threaded Pipe

Threaded Pipe

Threaded Pipe

Lower Rod

Set Threaded Pipe

54-3/4

230629
