ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0391

Turn on the power at fuse or circuit box.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

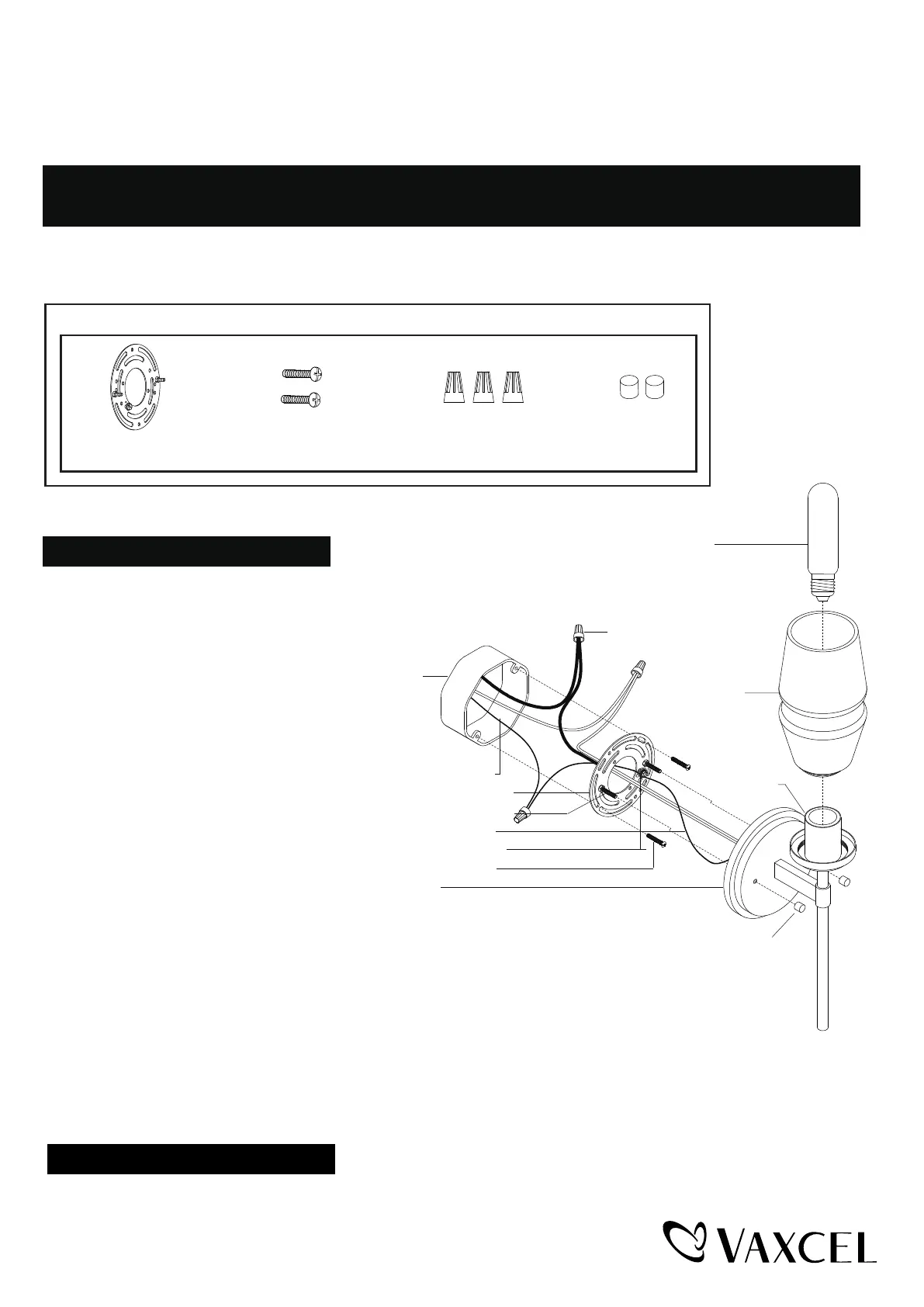

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)

Backplate

Bolt Nut (D)

Fixture Ground Wire

Outlet Box

Wire Connector (C)

House Ground Wire

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Mounting Screw

Max 60W

Medium base bulb

(not included)

Glass Shade

Glass Holder

Turn off the power at fuse or circuit box

Installation Steps

1. Attach mounting plate unit (A) to the

outlet box using two mounting screws (B).

Adjust the length of the preinstalled fixture

mounting screws if necessary.

Note: Make sure that the fixture

mountingscrews are lined up

horizontally to make the fixture level.

2. Pull out the wires and ground wire from

the outlet box. Make wire connections

using the wire connectors (C) as follows:

---Connect the hot wire (black insulation)

from the fixture to the black wire from

the power source.

---Connect the neutral wire (white insulation)

from the fixture to the white wire from the

power source.

---Attach the fixture ground wire (bare wire)

to the mounting plate unit (A) with the green

ground screw, then connect it to the house

ground wire with the wire connectors (C).

Carefully put the wires back into the outlet box.

3. Attach the backplate to the mounting plate unit (A) by aligning and inserting the two

fixture mounting screws from the mounting plate unit (A) into the open holes on the

backplate, then screw it with the two bolt nuts (D).

4. Rotate the glass shade onto the glass holder. Install 1 X 60W medium base bulb (not included).

See relamping label at socket area or packaging for maximum wattage allowed.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

210202
