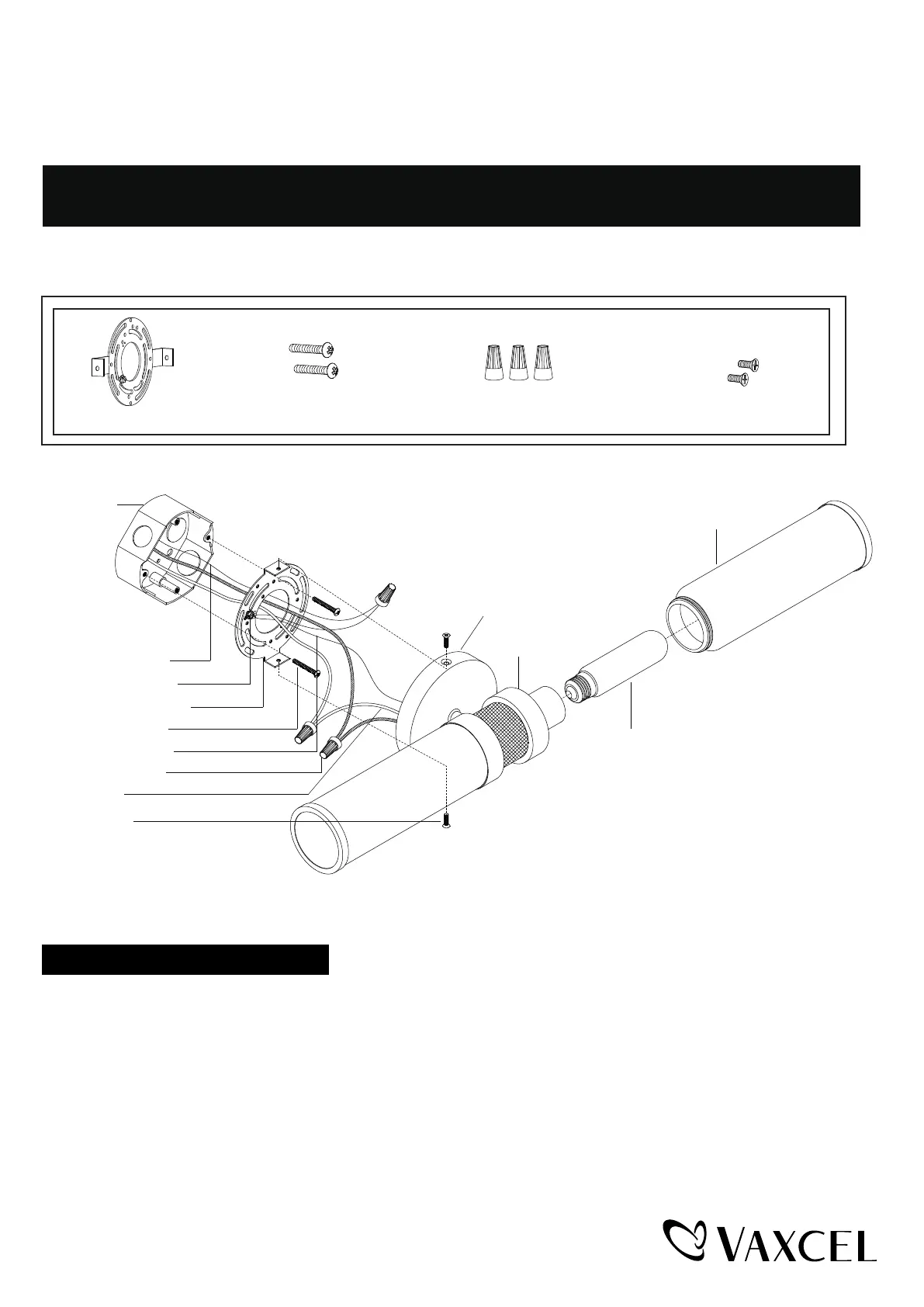

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0389
Mounting Plate Unit (A)Wire Connector (C)Mounting Screw (B)
Set screw (D)
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Outlet Box
Fixture Wire
Set Screw (D)
Backplate
Glass Holder
Max.60W T10 Bulb
(not included)
Glass Shade
Mounting Screw (B)
Turn off the power at fuse or circuit box
Installation Steps
1.
Remove the mounting plate unit (A) from the backplate by disassemblying the set screws (D).
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).
Note: Make sure that two set holes are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
