ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0723

T

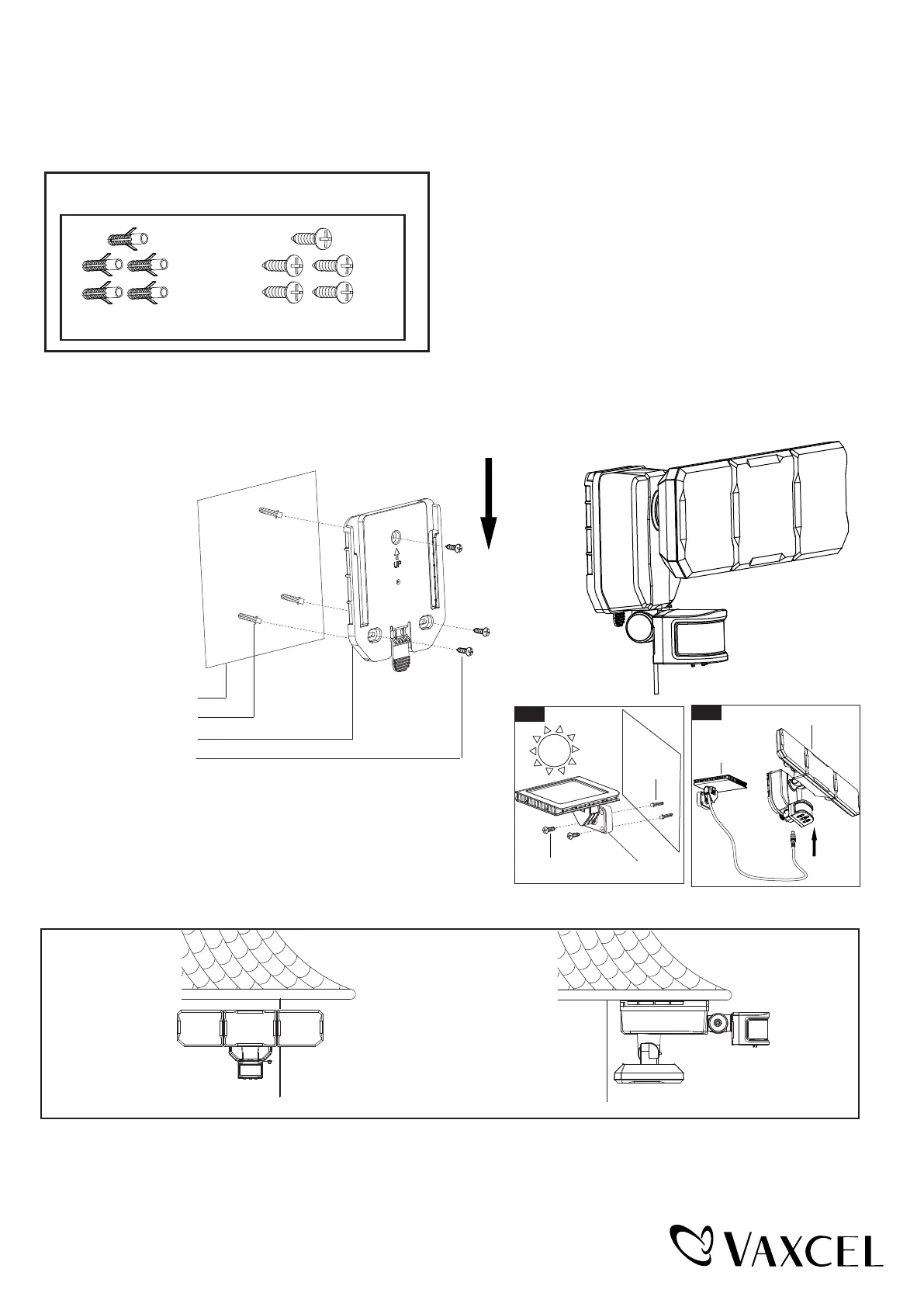

Hardware Package (included):

Anchor (A)Drywall Screw (B)

Important to Know

For best results, position the solar panel in a location where it will receive maximum sunlight. Ideally,

the location should be free from cover or shade.

L SHOCK, BE SURE TO SHUT OFF

RVICING THIS FIXTURE.

Mounting Surface

Mounting Plate

Drywall Screw

Anchors

Slide Down

Page 1 / 5

Note: Fixture can be wall mounted or eave mounted.

Wall Mounted

Eave Mounted

Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation).

Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for

proper operation and to avoid the risk of electrical shock.

231130

Solar Panel

Fig.1

Fig.2

Light Fixture

Solar Panel

Anchor (A)

Drywall Screw (B)
