1. Unscrew the headless screws from backplate by using "L" screwdriver (C), then remove the mounting plate.
2. Attach the mounting plate to the outlet box by using two mounting screws.
Glass bracket
Interior Glass Shade (E)
Max. 75W T10 Bulb
(not included)
Backplate
Mounting Screw (A)
Headless Screw
Mounting Plate
House Ground Wire
Green Ground Screw
Fixture Ground Wire
Wire Connector (B)
Outlet Box
Fixture Wire
Bulb T10 Max.75W
(not included)
Exterior Glass Shade (D)

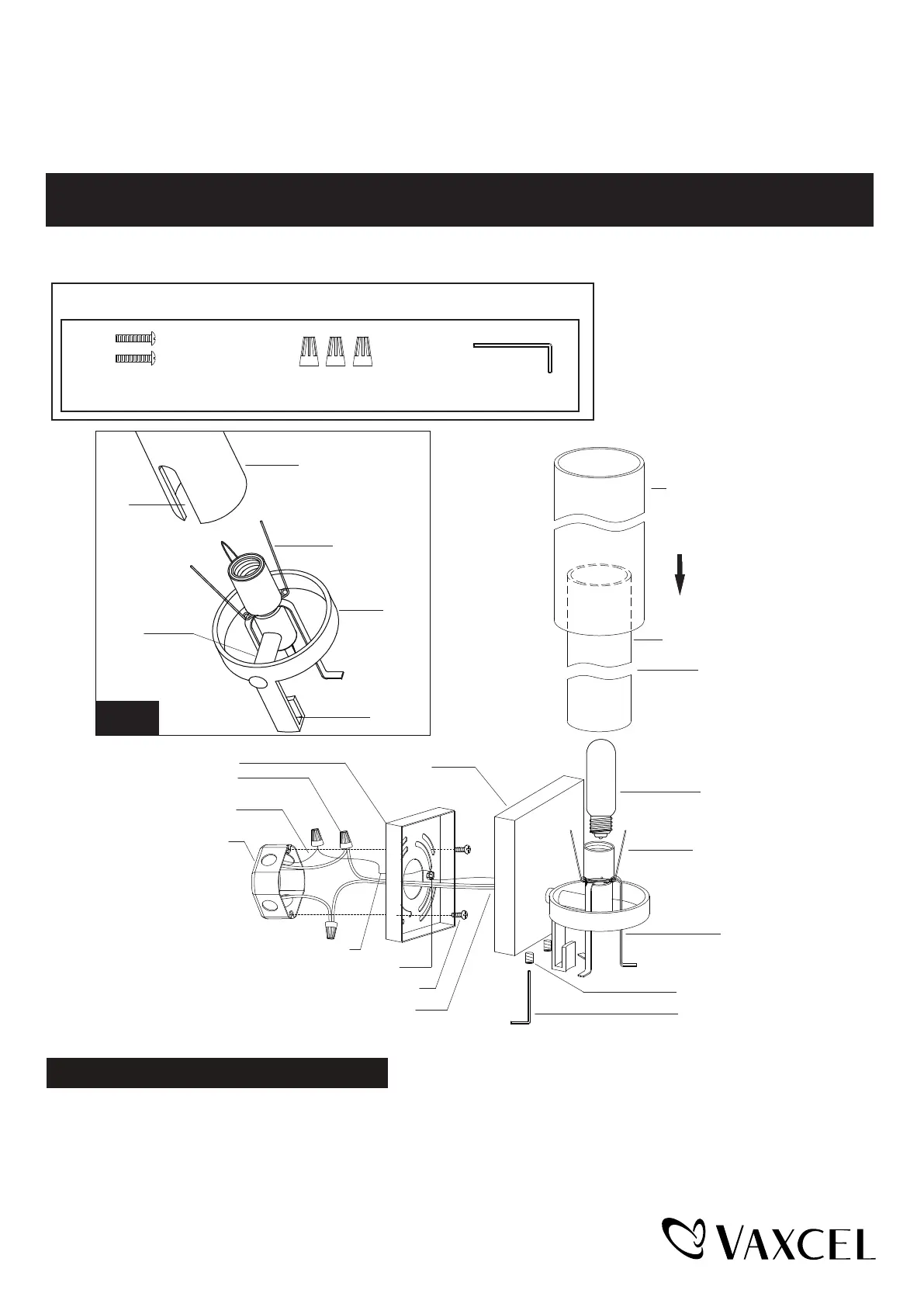

Fig.1
Interior Glass Shade
Slot
Fixture
arm
Slot
Socket Spring
Socket Spring
Mounting Screw (A)"L" Screwdriver (C)Wire Connector (B)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0049 / W0125 / W0309
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Assembly Instructions:
Turn off the power at fuse or circuit box.
"L" Screwdriver (C)
230424
Page 1 / 2
