LK38812 --- Page 1

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. The combined weight of your ceiling fan and light kit cannot exceed 35 pounds unless

additional support is provided for the fan.

LK38812

1. Remove the switch box cover from the

switch box of the fan by loosing the

three switch box screws.

2. Unscrew the center plug from the switch

box cover and discard it.

3. Thread the fixture wire through the switch

box cover.

4. Attach nipple(-a) of the light kit to the switch

box cover, then secure it with a washer and

hex nut.

5. Cut the redundant wires if necessary. Pull out the wires from the switch box. Make wire connections

using the wire nuts:

---The black wire from the fixture to the black (or blue) wire from the switch box.

---The white wire from the fixture to the white wire from the switch box.

Carefully tuck the wires back into the switch box.

6. Attach the switch box cover back to the switch box using the three switch box screws.

7. Install bulbs (not included). See relamping label at socket area or packaging for maximum allowed

wattage.

8. Thread the pull chain through the glass shade, metal ring and finial. Carefully attach the glass shade

and the metal ring to the cap by inserting nipple(-b), then secure them with the finial.

9. Turn on the power at the main fuse or circuit breaker box. (You can control the light with the pull chain.)

For Light Kit:

060301

TM

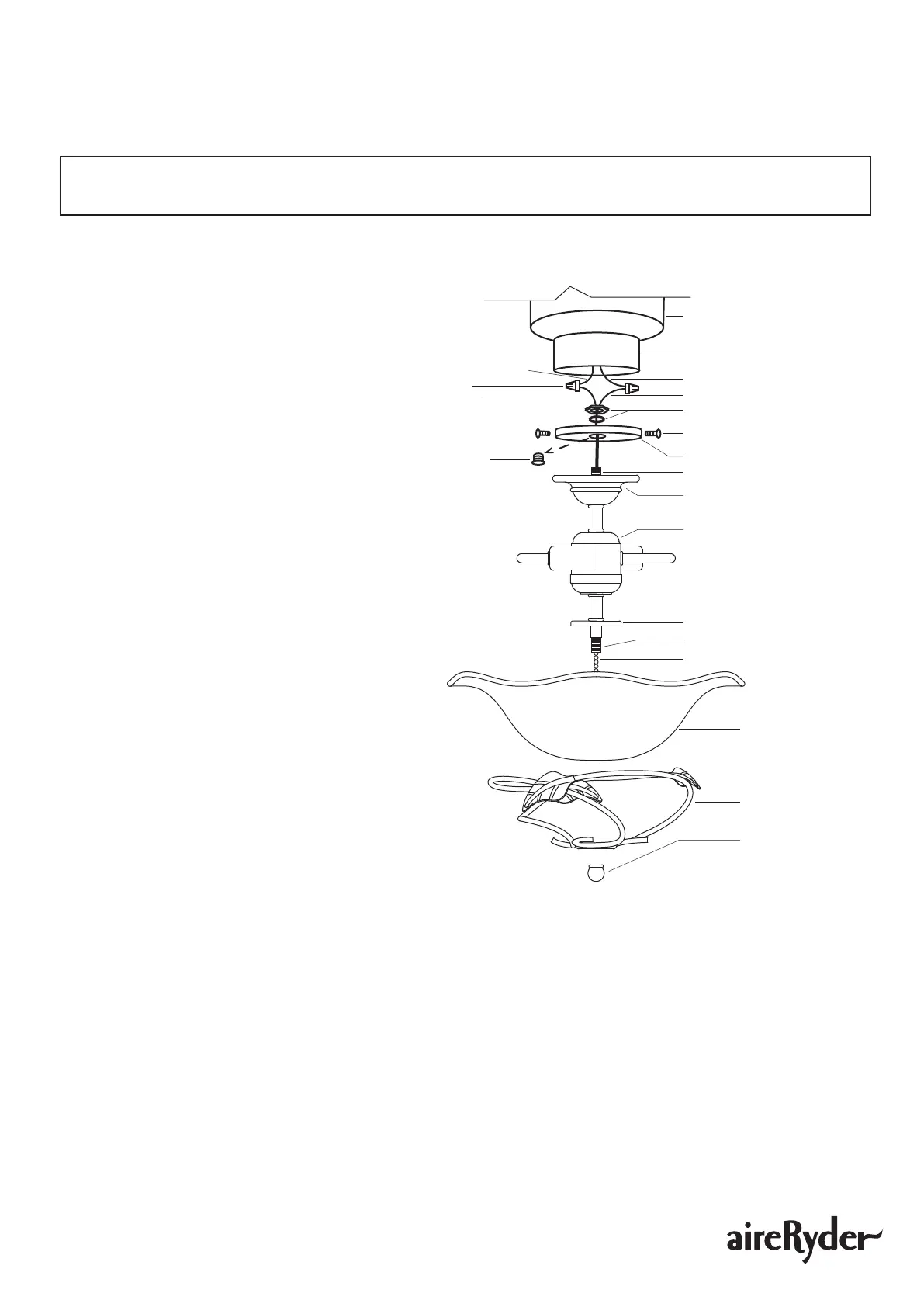

Center Plug

Wire Nut

Black or Blue Wire

Black Wire

White Wire

White Wire

Switch Box

Motor

Hex Nut & Washer

Nipple(-a)

Switch Box Cover

Top Cap

Switch Box Screw

Socket Set

Cap

Glass Shade

Metal Ring

Finial

Nipple(-b)

Pull Chain
