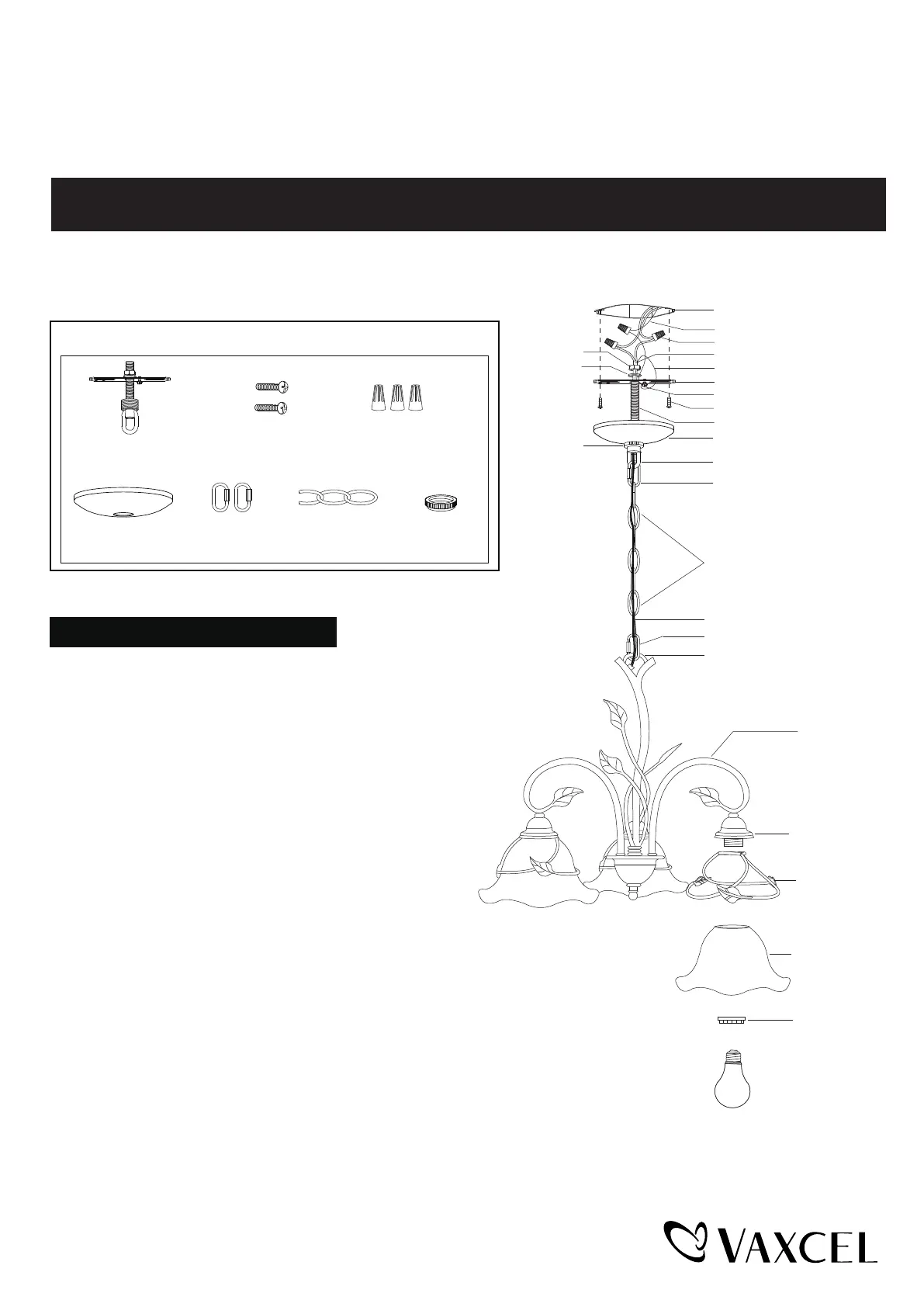

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

CH38803OL / CH38805OL

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

2. Read and save these instructions.

Hardware Package(inculded):

Mounting Strap Unit (A)Wire Connector (C)Mounting Screw (B)

Canopy (D)

Quick

Link (E)

Chain (F)

Collar (G)

Quick Link

(E)

Quick Link

(E)

Loop

Chain (F)

Canopy

(D)

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop

Collar (G)

Socket Ring

Glass Shade

Decoration Ring

Glass Holder

Arm

Fixture Wire

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach the mounting strap unit (A) to the outlet box using two

mounting screws (B).

2. Choose the length of the chain (F) you needed, then weave the

fixture wire and the fixture ground wire through the chain (F) ,

collar (G) and canopy (D).

3. Connect the chain (F) to the loop and the top loop on mounting

strap unit (A) with two quick links (E).

4. Thread the fixture wire and fixture ground wire through

the top loop, threaded pipe of the mounting strap unit (A).

5. Pull out the outlet wires and house ground wire from the

outlet box.

Make wire connections using the wire connectors (C):

---The smooth wire (marked) from the fixture to the black wire

from the power source.

---The ribbed wire (unmarked) from the fixture to the white wire

from the power source.

---Attach the fixture ground wire to the mounting strap unit (A)

with the green ground screw, then connect it to the house

ground wire with a wire connector (C). Carefully put the

wires back into the outlet box.

6. Place the glass shades into the decoration rings carefully, attach them

upwards to the glass holders, and then secure with socket rings.

Note:The glass shades should be all in horizontal line.

Max. 100W Medium Base Bulb

(not included)

230324
