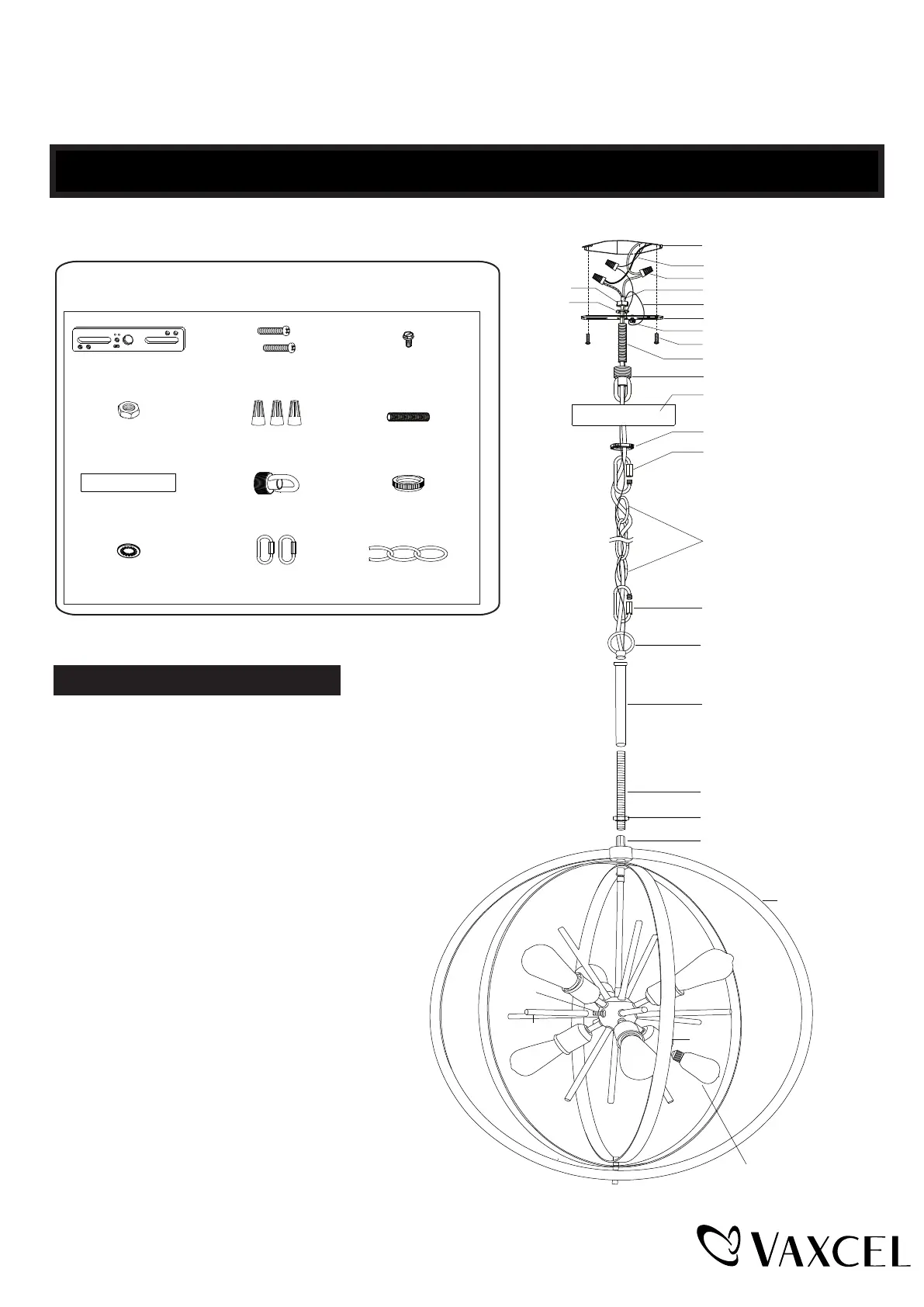

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ AND SAVE THESE INSTRUCTIONS.

P0341

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Loop Lock (K)

Loop Lock (K)

Outlet Box

House Ground Wire

Wire Connector (E)

Fixture Wire

Fixture Ground Wire

Mounting Strap (A)

Green Ground Screw (C)

Mounting Screw (B)

Threaded Pipe (F)

Canopy (G)

Hex Nut(D)

Washer(J)

Collar (I)

Chain (L)

Loop

Rod

Coupling

Threaded

Pipe-b

Hex Nut

Threaded Pipe-a

Fixture

Top Loop (H)

1. Lock the threaded pipe-a on the coupling and fix it with

a hex nut.

2. Use rod passes through the threaded pipe-a and fix it

with loop.

3. Screw 12 decorative rods to the other threaded pipes-b of fixture.

4. Attach the threaded pipe (F) to the mounting strap (A),

then secure it with a washer (J) and hex nut (D).

5. Attach the mounting strap (A) to the outlet box by

using two mounting screws (B).

6. Secure the top loop (H) to the threaded pipe (F).

7. Connect the chain (L):

- Determine needed length of chain (L) to achieve

desired fixture height (remove excess chain

section by using pliers to bend link open.)

- Weave the fixture wires and fixture ground wire

through the chain (L), collar (I) and canopy (G).

8. Connect one end of the chain (L) to the loop using

a loop lock (K).

9. Connect the other end of the chain (L) to top loop (H) by using the other loop lock (K).

Mounting Strap (A)Mounting Screw (B)Green Ground

Screw (C)

Hex Nut (D)Wire Connector (E)

Canopy (G) Top Loop (H)Collar (I)

Threaded Pipe (F)

Washer (J)

Loop Lock (K)

Chain (L)

Socket

Max.60W Vintage Bulb

(not included)

Decorative

Rod

200902
