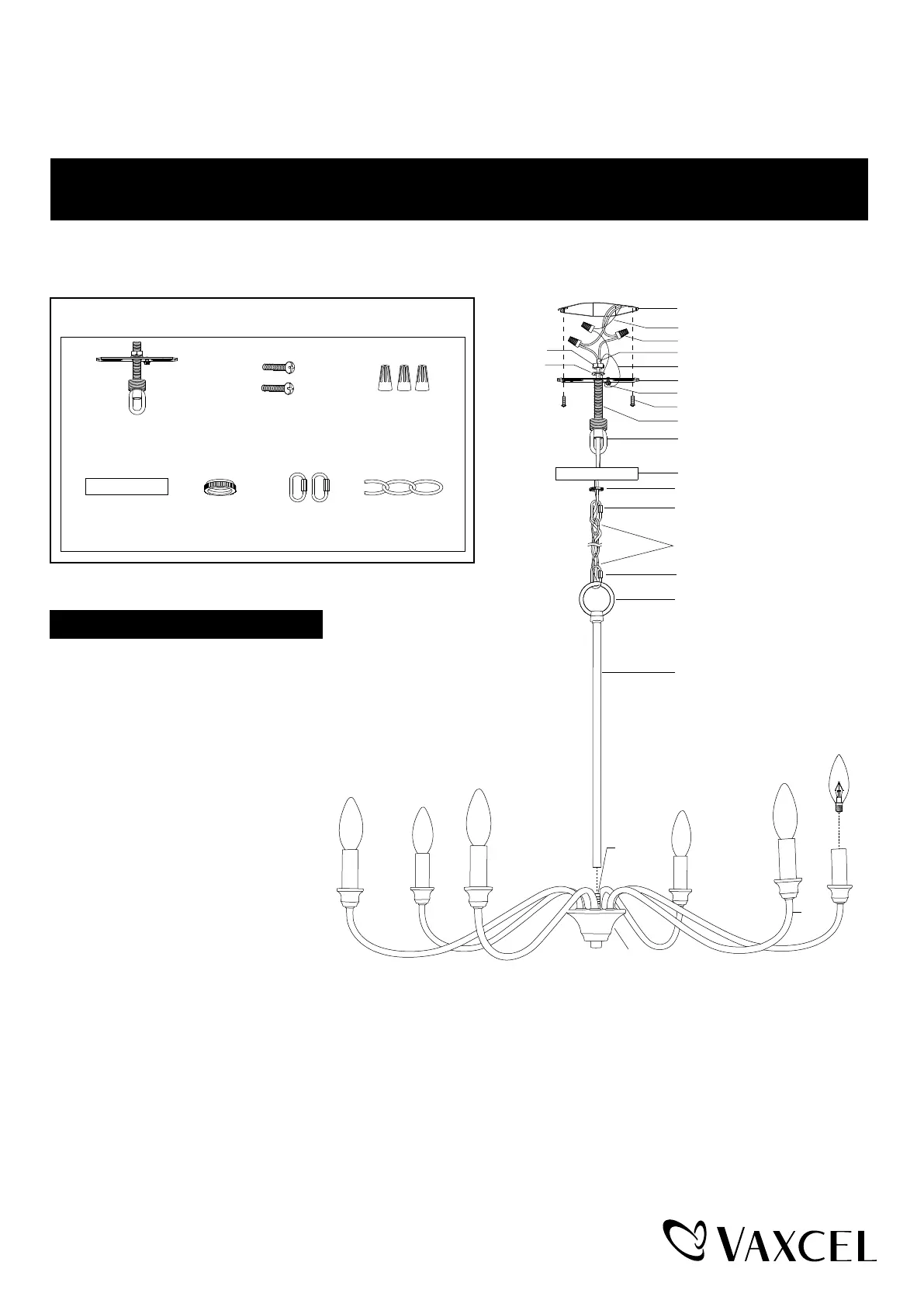

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
1. Attach the mounting strap unit (A) to the outlet box by using
two mounting screws (B).
2. Attach the tube onto the threaded pipe and tighten it.
Adjust the arms of the fixture according to the picture
on the package.
3. Choose the length of the chain (G)
you need, then weave the fixture wire
and the fixture ground wire through
the chain (G), collar (E) and
canopy (D).
4. Connect one end of the chain (G) to
the loop by using a quick link (F).
5. Connect the other end of the chain (G)
to the top loop by using another quick link (F).
6. Thread the fixture wire and fixture ground wire through the top loop, threaded pipe and mounting strap unit (A).
7. Pull out the outlet wires and house ground wire from the outlet box. Make wire connections using the
wire connectors (C):
---The smooth-coated wire (marked) from the fixture to the black wire from the power source.
---The ridged-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw, then connect it to
the house ground wire with a wire connector (C). Carefully put all the wires back into the outlet box.
Turn off the power at fuse or circuit
box.
Installation Steps
Page 1 / 2
240222
H0265 / H0298
Mounting Strap Unit (A)Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Quick Link (F)
Chain (G)
Hardware Package (included):
WARNING:
TO
L SHOCK, BE SURE TO SHUT OFF
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Loop
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Canopy (D）
Quick Link (F)
Quick Link (F)
Collar (E)
Chain (G)
Max.60W Candelabra
Base Bulb
(not included)
Tube
Threaded
pipe
Fixture
Arm
