221107

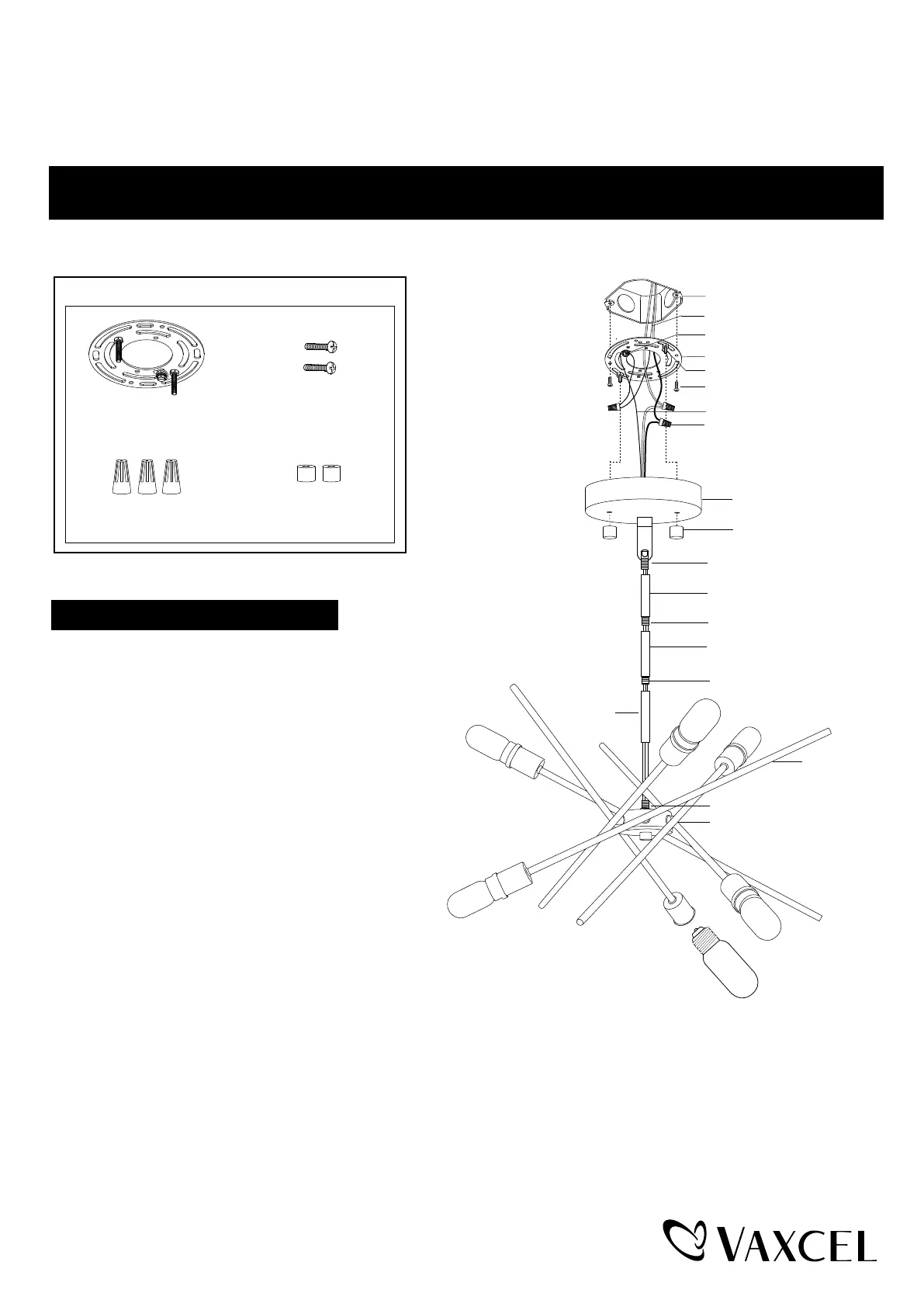

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0390

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

1. Attach mounting plate unit (A) to outlet box using two mounting

screws.

2. Rod Connections:

a. Thread the fixture wire from the fixture through the

lower rod, and then secure the lower rod onto fixture

using the threaded pipe.

b. Thread the fixture wire through the middle rod, and

then secure the middle rod onto the lower rod using

the threaded pipe.

c. Thread the fixture wire through the upper rod, and

then secure the upper rod onto the middle rod using

the threaded pipe.

Note: Length adjustable from 14-1/4" to 64-1/2".

Use fewer rods if shorter length is desired.

3. Thread the fixture wire through canopy, and then

secure the rod assembly to the set threaded pipe.

4. Carefully adjust the 6 pcs long rods as the picture shown by

rotating the long rods slightly in the same direction.

5. Pull out the source wires from the outlet box. Make wire connections using wire connectors

(C)

as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting

plate unit (A)

with the green ground screw, then connect it to

the house ground wire with a wire connector

(C)

.

Carefully put the wires back into the outlet box.

8. Install 6 X 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for

maximum wattage allowed.

Turn off the power at fuse or circuit box.

Installation Steps

Max. 60W Medium Base bulb

(not included)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Canopy

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Threaded Pipe

Fixture

Long Rod

Set Threaded Pipe

Bolt Nut (D)

Wire Connector (C) Bolt Nut (D)

Mounting Screw (B)

Mounting Plate Unit (A)
