ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

H0277

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

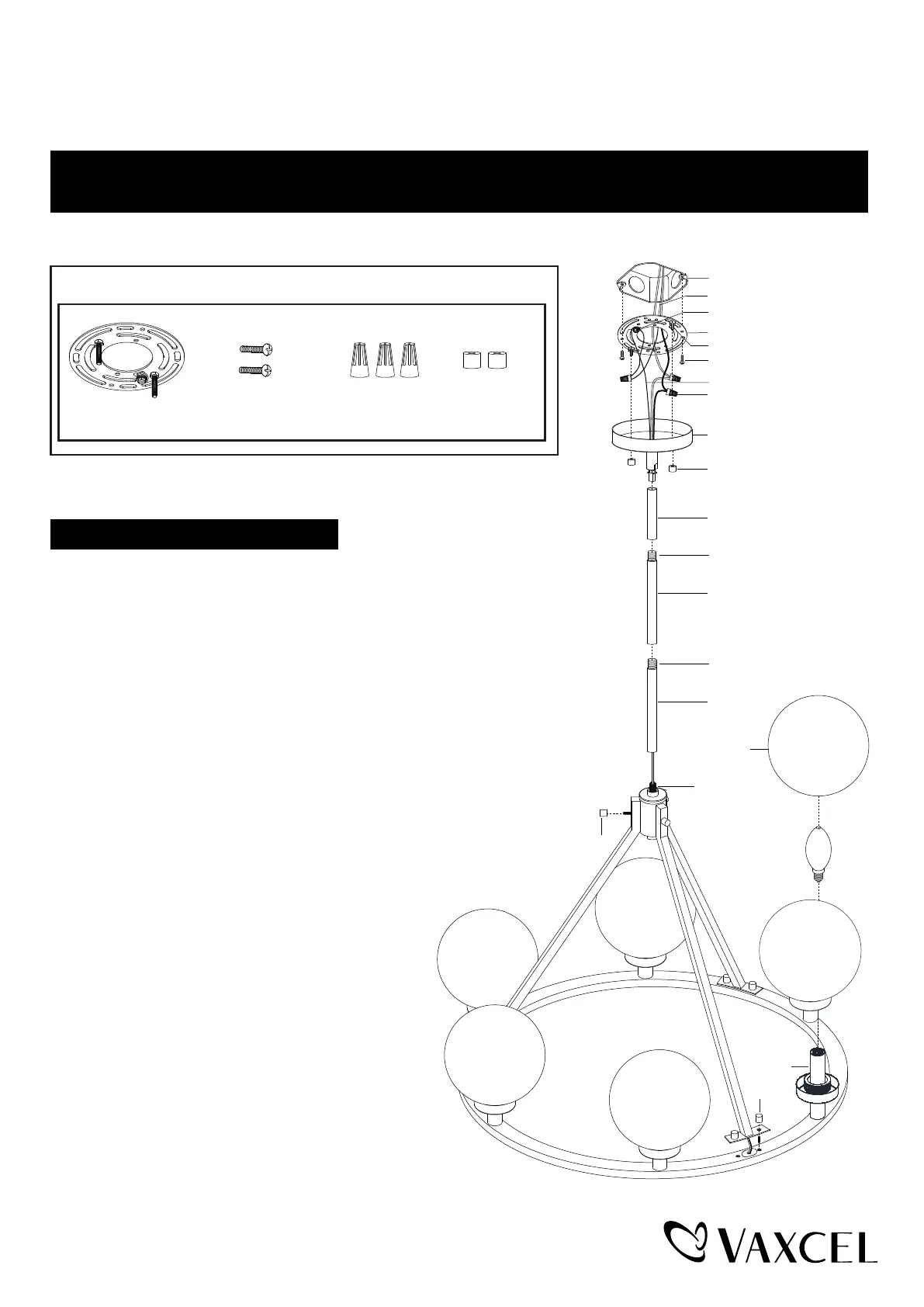

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

1

. Unscrew the bolt nuts (D), take out the mounting plate

unit (A) and then attach to the outlex box by using two

mounting screws (B).

2. Adjust the wire length, align it with the hole, and secure

the fixture with Bolt Nut-2.

3. Use Bolt Nut-1 to secure the K/D bend to the junction box

4. Attach the tube to the fixture.

5. Rod Connections:

a. Thread the fixture wire through the lower rod,

then secure the lower rod onto fixture using the

threaded pipe.

b. Thread the fixture wire through the middle rod

and then secure the middle rod onto the lower

rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then

secure the upper rod onto the middle rod using the

threaded pipe.

Note: Length adjustable from 20-1/4" to 80". Use

fewer rods if shorter length is desired.

6. Thread the fixture wire through the canopy kit (E),

then secure the rod assembly to the set threaded

pipe of the canopy kit.

Wire Connector (C)Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (D)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Canopy Kit

Upper Rod

Threaded Pipe

Middle Rod

Threaded Pipe

Low Rod

Threaded Pipe

Bolt Nut-1

Max. 40W

Candelabra Bulb

(not included)

Glass Shade

Socket

Bolt Nut-2

Page 1 / 2
