ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0295
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate
unit (A) and then attach to the outlet box by using two
mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod,
then secure the lower rod onto fixture using the
threaded pipe.
b. Thread the fixture wire through the middle rod
and then secure the middle rod onto the lower
rod using the threaded pipe.
c. Thread the fixture wire through the upper rod,
then secure the upper rod onto the middle rod
using the threaded pipe.
Note: Length adjustable from 27-1/4" to 69-1/4".
Use fewer rods if shorter length is desired.
3. Thread the fixture wire through the canopy kit, then
secure the rod assembly to the set threaded pipe of
the canopy kit.
4. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to
the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate
unit (A) with the green ground screw, then connect it to the
house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the fixture mounting screws,
then secure it with two bolt nuts (D).
6. Separate and adjust the arms to desired position.

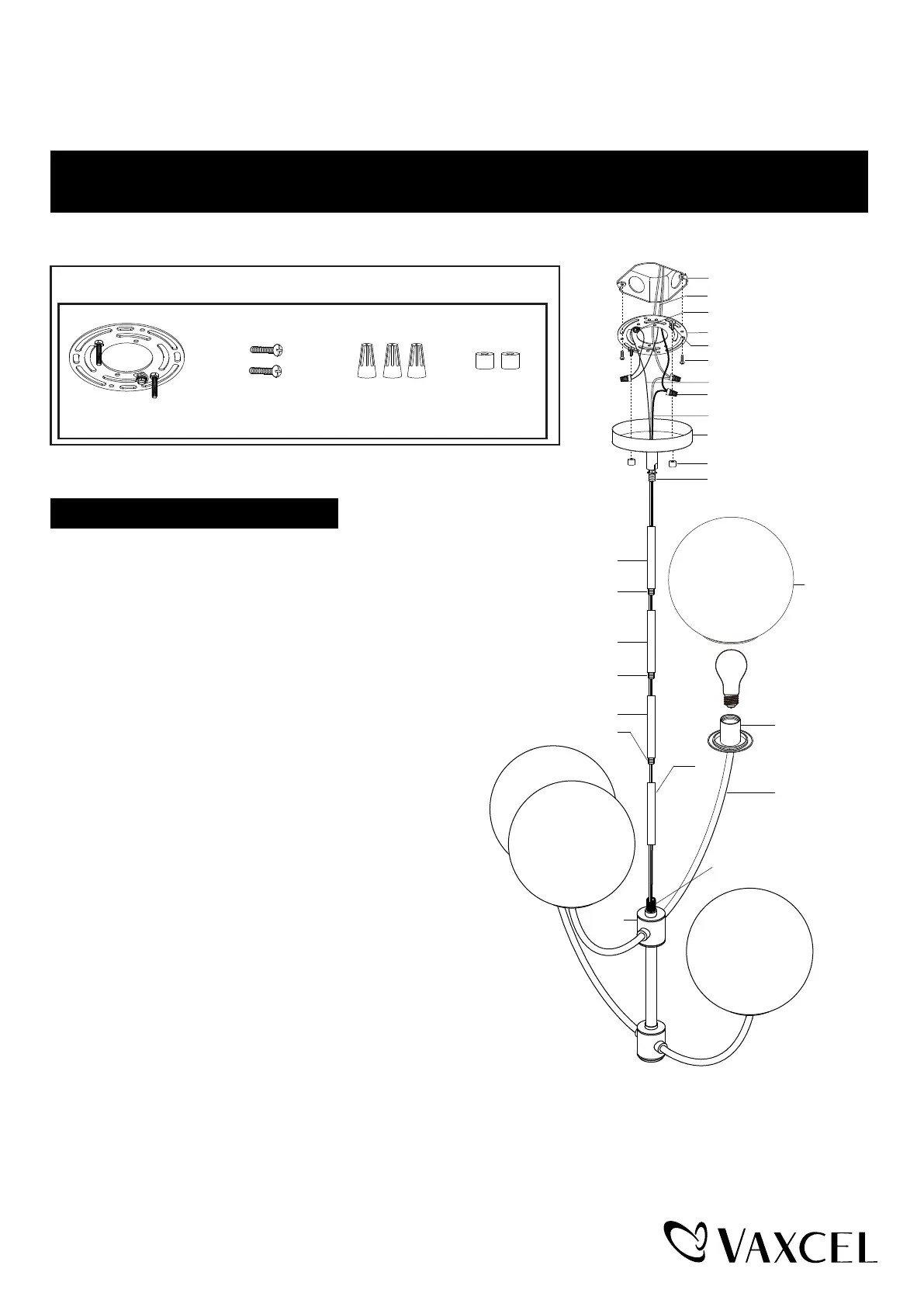

Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Canopy Kit
Page 1 / 2
Max. 60W Medium Base
A15 Bulb (not included)
Set Threaded Pipe
Socket
Arm
Fixture
Glass Shade
Upper Rod
Middle Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Lower Rod
Threaded Pipe
231120
