ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
C0290 / C0291 / C0292 / C0293
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

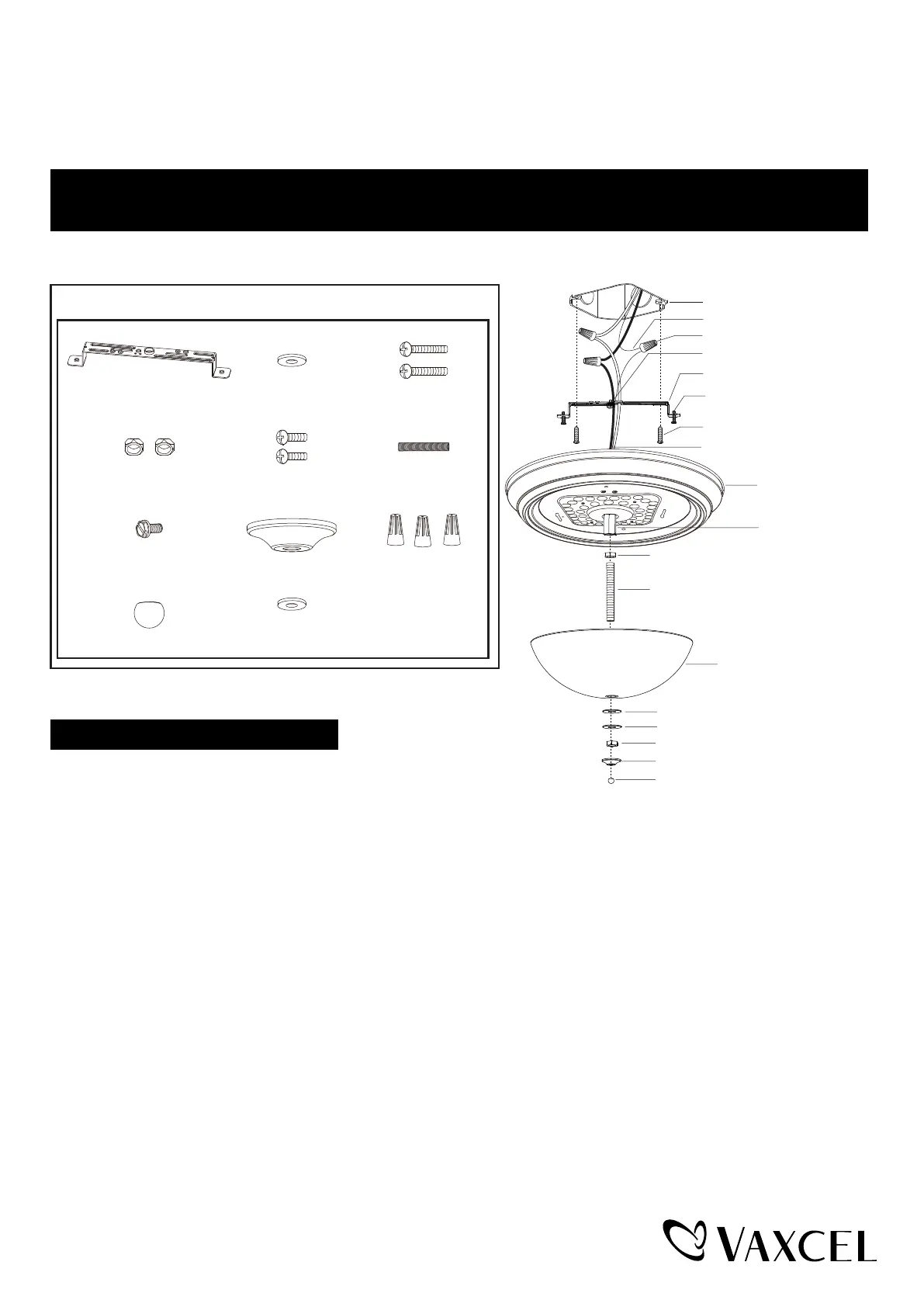

Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1. Attach mounting bracket (A) to the outlet box using two mounting
screws (C).
2. Pull out the source wires from the outlet box. Make wire connections using wire connector (I) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting bracket (A) with the green ground screw (G),
then connect it to the house ground wire with the wire connector (I).
Carefully put all of the wires back into the outlet box.
3. Attach the ceiling pan to the mounting bracket (A) by inserting two short screw (E) heads into the keyholes.
Rotate the ceiling pan until it is locked into place, then tighten the short screws (E) to secure it.
4. Screw the threaded pipe (F) into the coupling, then secure it with a hex nut (D).
Note: Depth of threaded pipe may need to be adjusted to properly fit glass shade, decorative cap and finial.
5. Attach the glass shade to the ceiling pan by inserting the threaded pipe (F) through the glass shade, then secure it
with a rubber pad (K), metal pad (B) and a hex nut (D).
6. Attach the decorative cap (H) end of threaded pipe, then secure it with the finial (J).
230612
Page 1 / 2
Hex Nut (D)
Decorative Cap (H)
Finial (J)
Threaded Pipe (F)
Mounting Bracket (A)
Mounting Screw (C)
Short Screw (E)
Green Ground Screw (G)Wire Connector (I)
Rubber Pad (K)
Metal Pad (B)
Outlet Box
House Ground Wire
Wire Connector (I)
Mounting Bracket (A)
Short Screw (E)
Fixture Ground Wire
Mounting Screw (C)
Green Ground Screw (G)
Ceiling Pan
Glass Shade
Rubber Pad (K)
Metal Pad (B)
Hex Nut (D)
Coupling
Hex Nut (D)
Decorative Cap (H)
Finial (J)
Threaded Pipe (F)
