NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

1. Attach mounting plate unit (A) to the outlet box using two mounting screws (B).

Adjust the length of the preinstalled headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

---Connect the hot wire (black insulation) from the power source to the black wire from the fixture.

---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.

---Attach the fixture ground wire (green insulation or bare wire) to the mounting plate unit (A) with the green

ground screw, or connect to the source ground wire if available.

Carefully put the wires back into the outlet box.

3. Attach the tube to the fixture by threaded pipe.

4. Install bulbs (not included). Check relamping label at socket area or packaging for maximum wattage allowed.

5. Attach the glass shade onto the socket, then using clip to fix.

6. Attach the fixture to the mounting plate unit (A) by inserting headless screws into holes on backplate, then secure it

ball nuts (D).

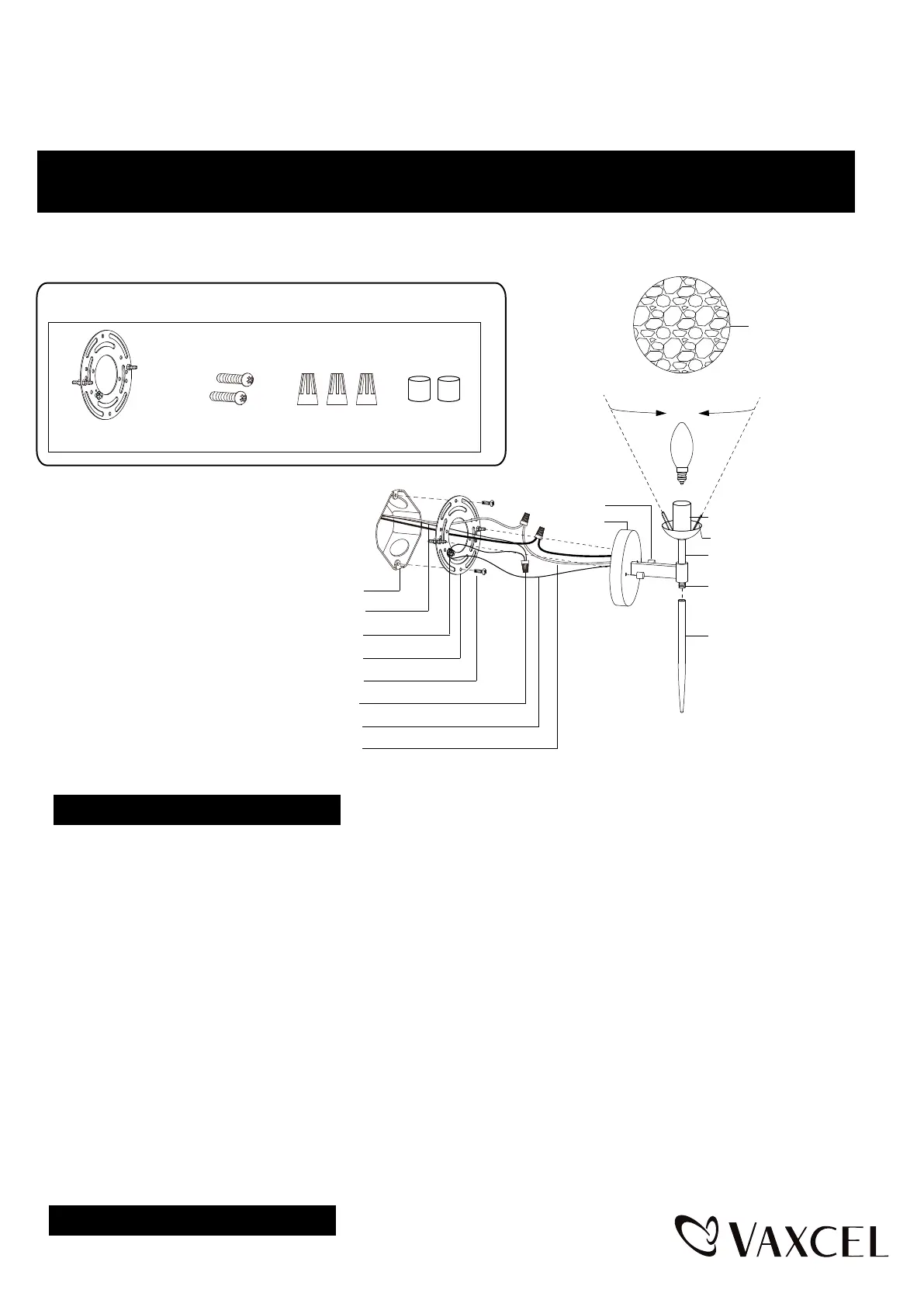

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0353

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Ball Nut (D)Mounting Plate Unit (A)

Turn on the power at fuse or circuit box.

House Ground Wire

Fixture Ground Wire

Wire Connector (F)

Mounting Plate Unit (A)

Outlet Box

Backplate

Ball Nut (E)

Threaded Pipe

Fixture Wire

Mounting Screw (B)

Green Ground Screw

Fixture

Clip

Socket

Glass Shade

Tube

Candelabra Bulb Max.60W

(not included)

Turn off the power at fuse or circuit box.

Installation Steps
