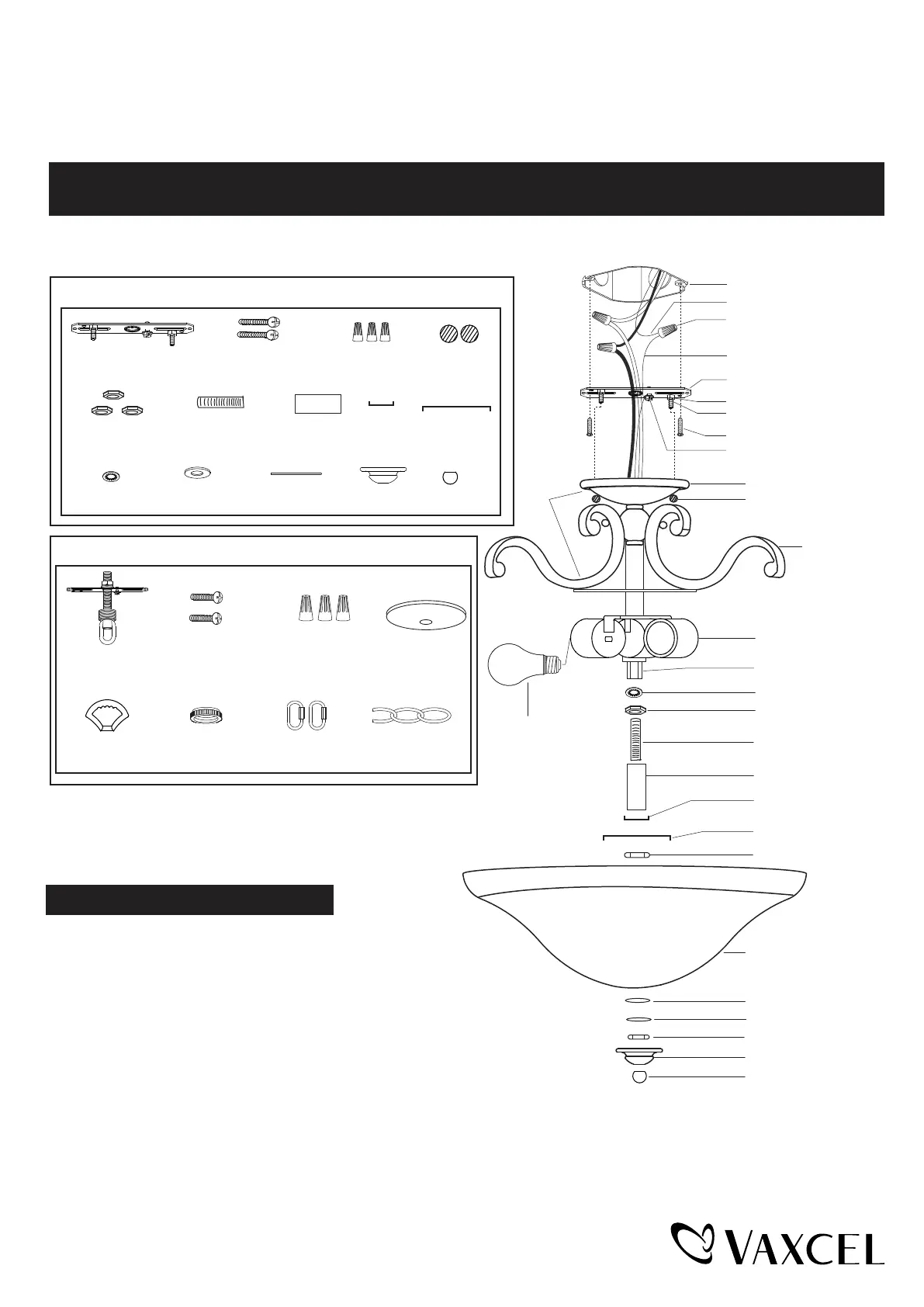

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTIONS.
C0272
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package for Ceiling Light (included):
Turn off the power at fuse or circuit box.
Installation Steps
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Fixture Ground Wire
Wire Connector (C)
1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2.
Screw the threaded pipe (F) into the coupling
on the socket base, then secure with a hex
nut
(E) and washer (J).
3. Attach the tube (G) and cap-1 (H) to the coupling by
inserting the threaded pipe
(F), then attach cap-2 (I)
to the hex nut (E).
Hardware Package for Pendant Light (included):
Canopy-1
Bolt Nut (D)
Arm
Fixture
Hex Nut (E)
Cap (M)
Metal Pad (L)
Rubber Pad (K)
Glass Shade
Socket Base
Coupling
Hex Nut (E)
Washer (J)
Threaded Pipe (F)
Tube (G)
Cap-1 (H)
Hex Nut (E)
Cap-2 (I)
Max. 100W Type A Bulb
(not included)
Finial (N)
Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)
Hex Nut (E)
Cap-2
(I)
Rubber Pad (K)
Threaded Pipe
(F)
Tube
(G)
Cap-1
(H)
Bolt Nut (D)
Washer (J)
Metal Pad (L)
Cap (M)
Finial (N)
Mounting Strap
Unit (O)
Wire Connector (Q)
Collar (T)Loop (S)
Mounting Screw (P)
Canopy (R)
Quick Link (U)
Chain (V)
For Ceiling Light:
Page 1 / 3
220602
