Back Plate
Mounting Screw (B)
Green Grounding
Screw (E)
Wire Connector (F)
181013

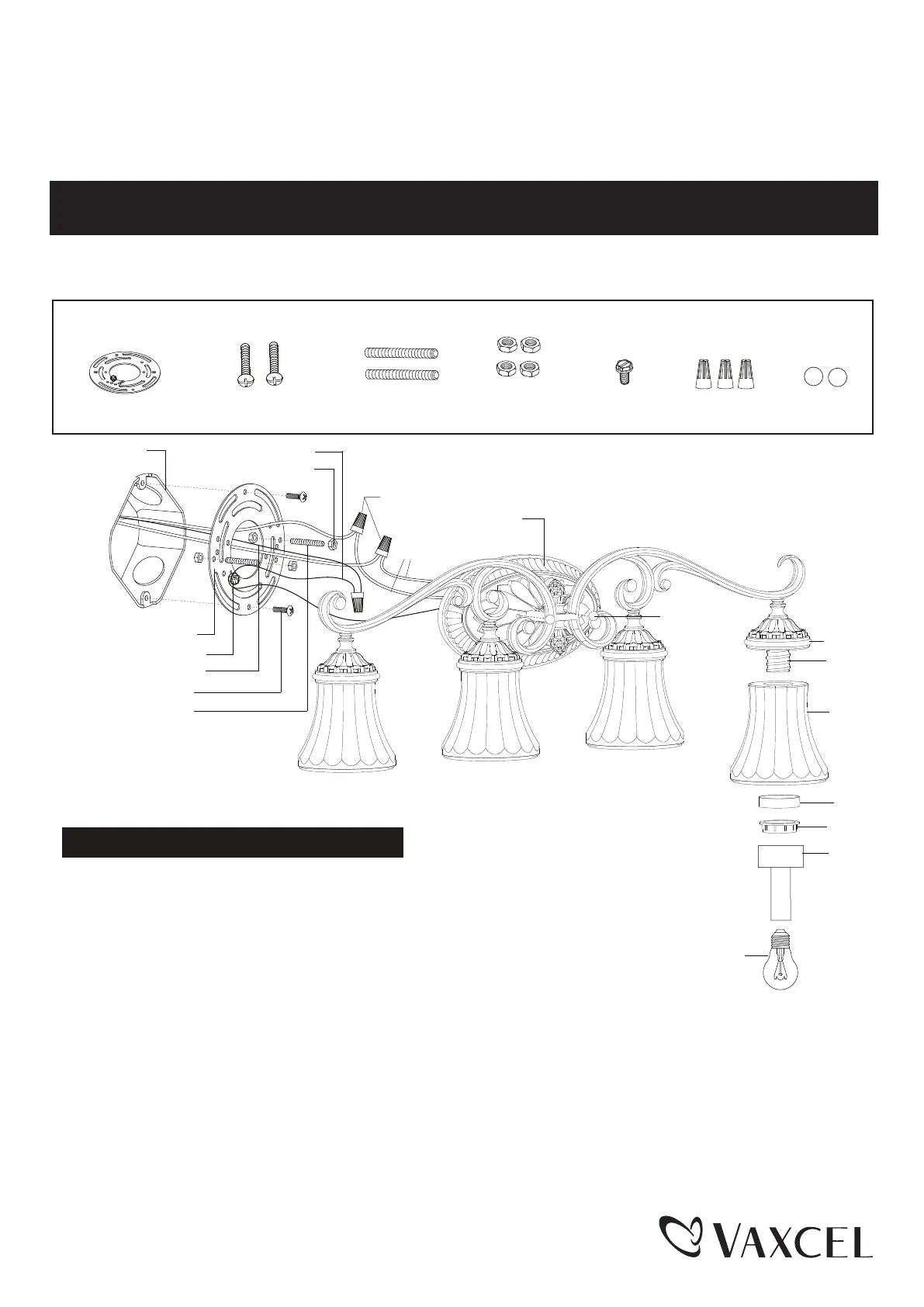

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0157 / W0304
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Lock Nut
(D)
Headless Screw (C)
Ball Nut (G)
1. Thread two headless screws through the mounting plate, then secure
them with four lock nuts (two on each side of the mounting plate). Adjust
the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up horizontally, in order
to ensure that the fixture will be level.
2.
Attach the
mounting plate
to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using
wire connectors as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black
wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the
white wire from the power source.
---Attach the fixture grounding wire (usually bare wire) to the mounting plate with the green grounding screw, then connect
it to the house grounding wire with a wire connector. If your outlet box does not have a house grounding wire, then wrap
the fixture grounding wire around the green grounding screw.
Carefully tuck the wires back into the outlet box.
Glass bracket
Socket Ring
Socket Fixer
Bulb Type A Max.100W
(not included)
Socket
Glass Shade
Assembly Instructions:
Turn off the power at fuse or circuit box.
Ball Nut (G)
Spacer
Outlet Box
Wire Connector (F)
Green Grounding Screw (E)
Headless Screw (C)
Mounting Plate (A)
Mounting Screw (B)
Lock Nut
(D)
Fixture Grounding Wire
House Grounding Wire
Fixture Wire
Mounting Plate (A)
