ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
C0254
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box
by using two mounting screws (B).
2. Pull out the source wires from the outlet box,
make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the
black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to
the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate
with the green ground screw, then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
3. Attach the fixture to the mounting plate unit (A) by inserting fixture mounting screws into the center holes of the
fixture and screw two bolt nuts (D) to secure the fixture.
4. Install the bulbs (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
210318

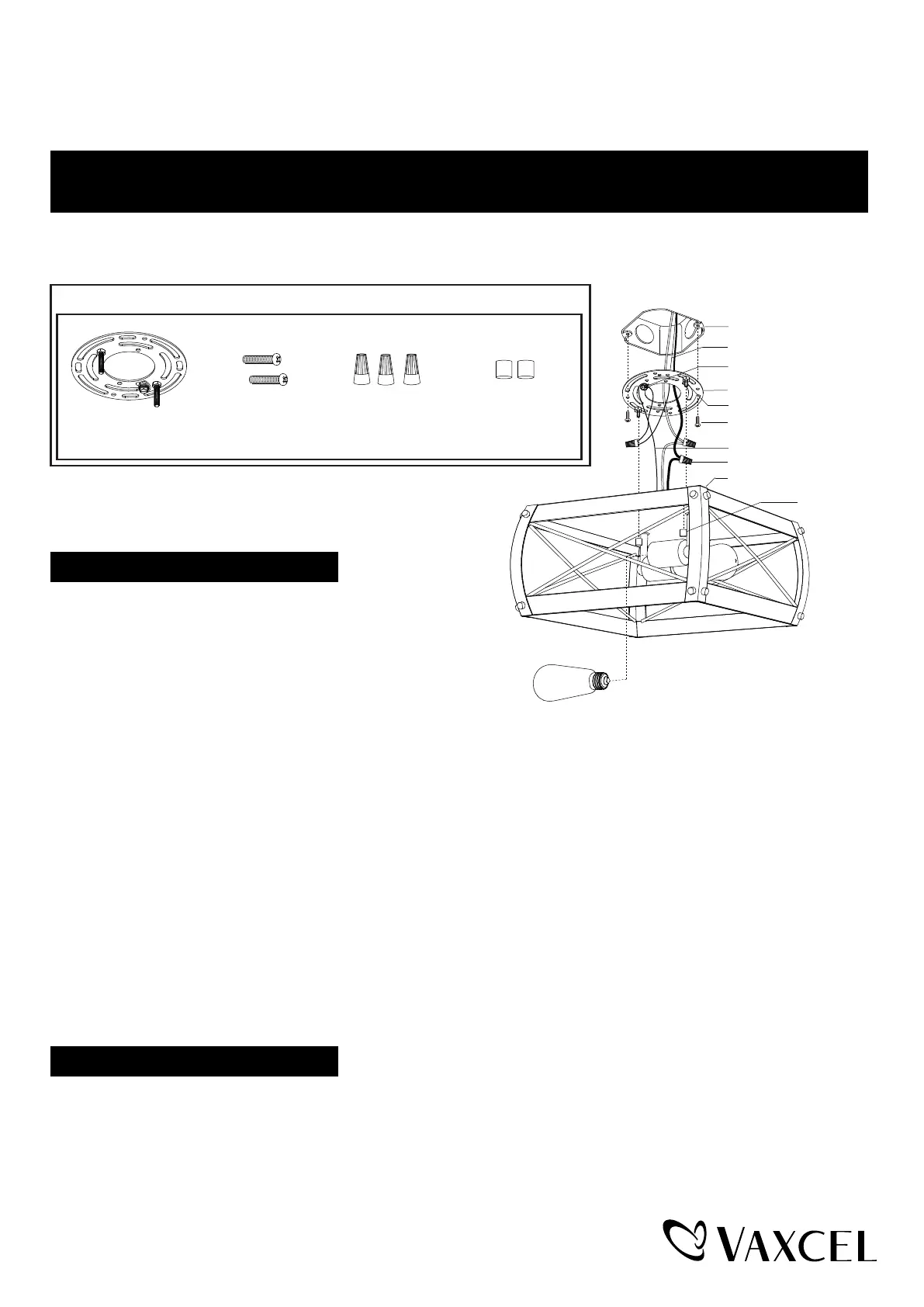

Bolt Nut (D)Mounting plate Unit (A)Mounting Screw (B)Wire Connector (C)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Bolt Nut (D)
Fixture
Outlet Box
Max.60W Medium Base
Bulb
(not included)
