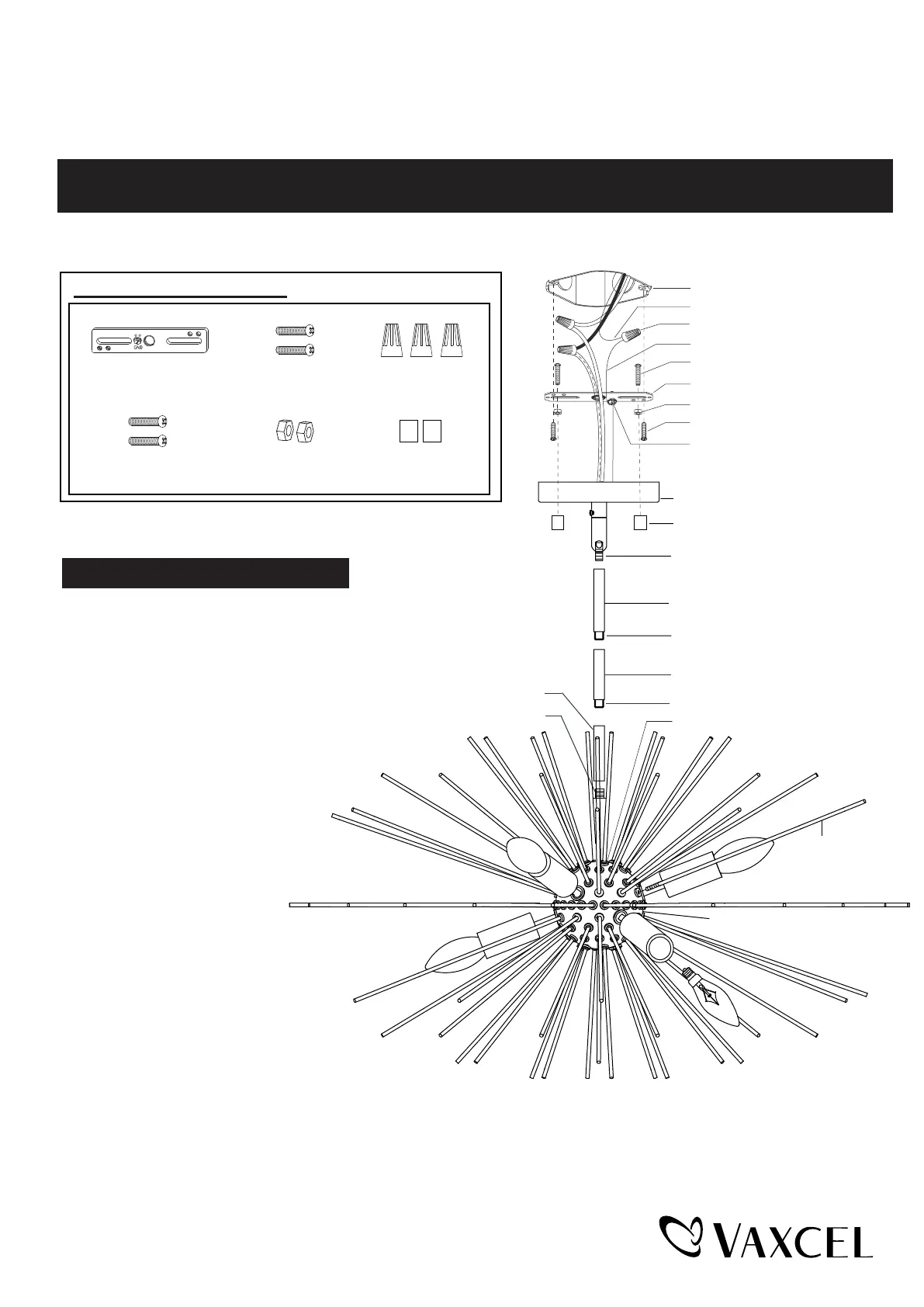

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0366
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap (A)
Mounting Screw (B)Wire Connector (C)
Fixture Mounting Screw (D)
Lock Nut (E)Bolt Nut (F)
Turn off the power at fuse or circuit box
Installation Steps
1. Thread two fixture mounting screws (D) through the
mounting strap (A), then secure with two lock nuts (E),
adjust the length of the fixture mounting screws (D)
if necessary.
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
Max.60W Candelabra
Base Bulb
(not included)
Fixture Canopy
Bolt Nut (F)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Ground Wire
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw
Lock Nut (E)
Mounting Screw (B)
Threaded Pipe
Threaded Pipe
Fixture
Decorative Rod
3. Rod connections:
a. Thread the fixture wire from
the fixture through the lower rod,
then secure the lower rod onto
fixture using the threaded pipe.
b. Thread the fixture wire through
the middle rod, then secure the
middle rod onto the lower
rod using the threaded pipe.
c. Thread the fixture wire through
the upper rod, then secure the
upper rod onto the middle rod
using the threaded pipe.
d. Thread the fixture wire through
the canopy, then secure the
canopy onto the upper rod using the threaded pipe.
Note: Length adjustable from 26" to 71",
use fewer rods if shorter length is desired.
4. Pull out the source wires from the outlet box. Make wire connections by using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap (A) with the green ground screw, then connect it to
the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
Fixture
211020
