Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

1. Remove the EVA plugged between glass shade and bend bars.

2. Attach the mounting strap unit (A) to the outlet box by using two

mounting screws (B).

3. Unscrew four bolt nuts and four rubber pads to remove the

metal frame from the fixture.

4. Install a bulb (not included). See relamping label at socket

area or packaging for maximum wattage allowed.

5. Attach the metal frame back to fixture, and then secure it

with four rubber pads and four bolt nuts.

6. Adjust the length of the chain (G) you needed, then weave the

fixture wire and the fixture ground wire through the chain (G),

collar (E) and canopy (D).

7. Connect one end of the chain (G) with the loop by using a quick

link (F).

8. Connect the other end of the chain (G) with the top loop by using

another quick link (F).

9. Thread the fixture wire and fixture ground wire through the

threaded pipe on the mounting strap unit (A).

Mounting Strap Unit (A)Wire Connector (C)

Collar (E)

Mounting Screw (B)

Canopy (D)

Quick Link (F)

Chain (G)

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0219

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

231229

Page 1 / 2

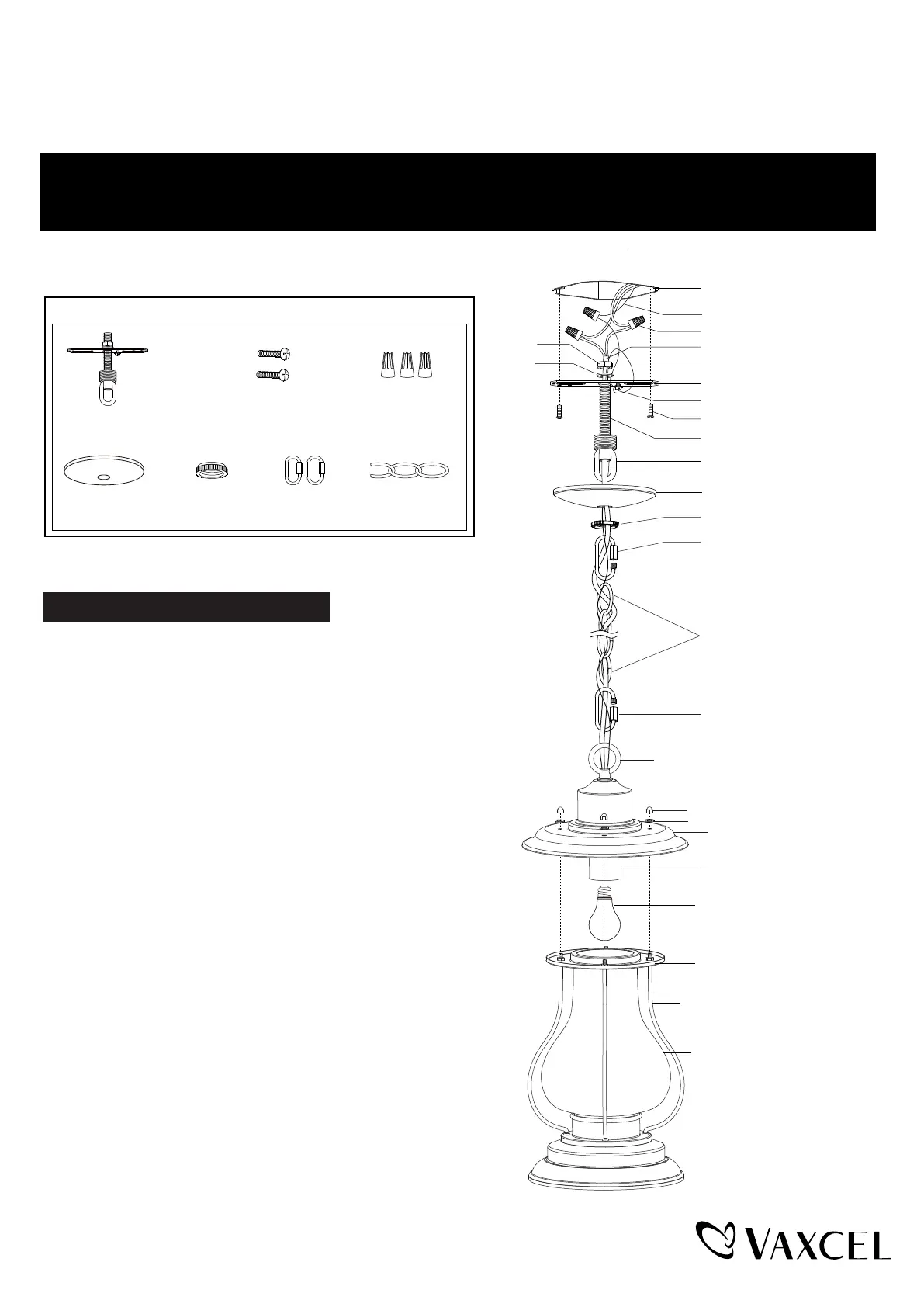

Canopy (D)

Collar (E)

Quick Link (F)

Quick Link (F)

Chain (G)

Loop

Bolt Nut

Rubber Pad

Fixture

Metal Frame

Glass Shade

Bulb Type A Max.100W

(not included)

Bend Bar

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop

Socket
