Page 1 / 7

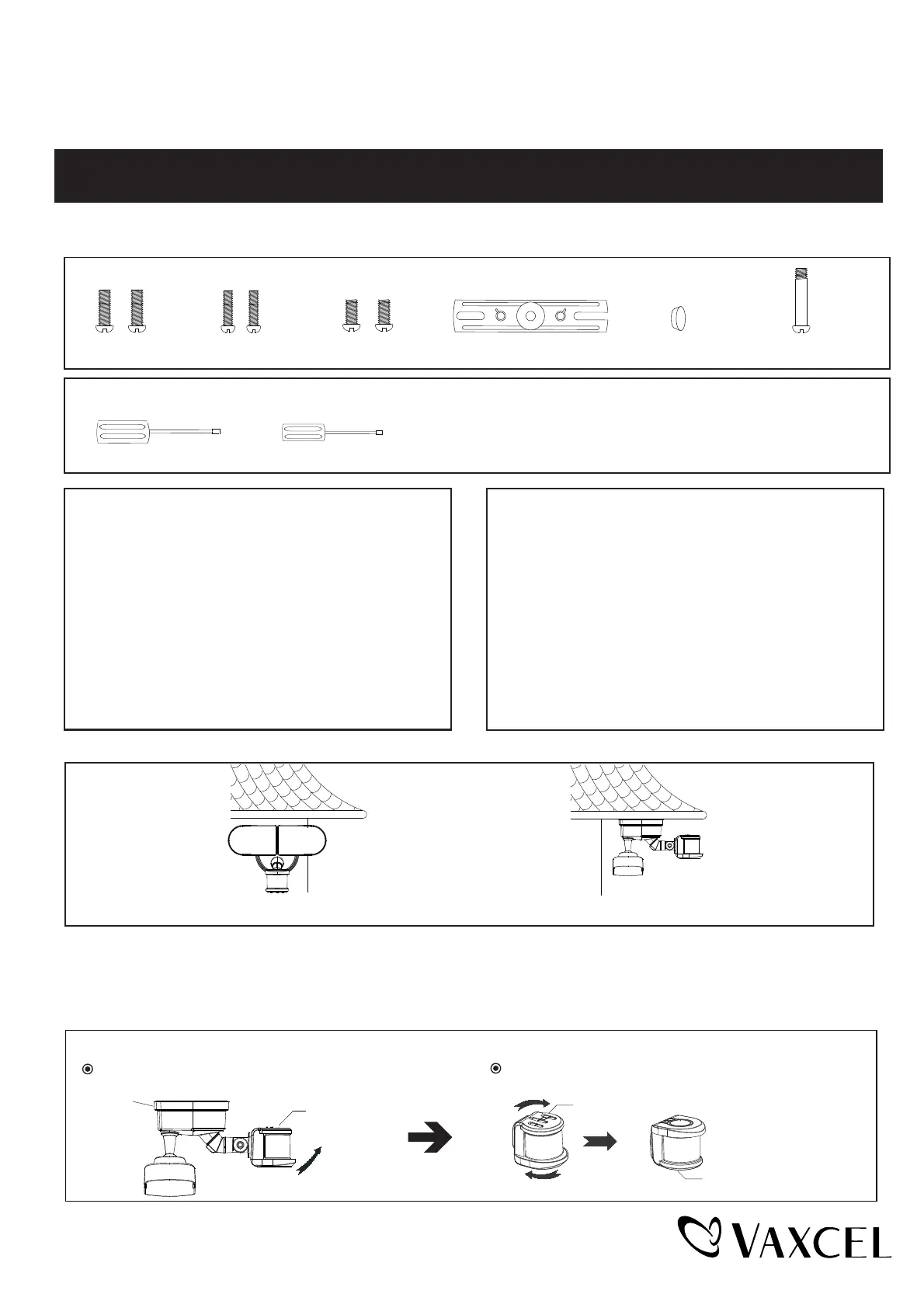

220209

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.READ AND SAVE THESE INSTRUCTIONS.

T0625

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Wall Mounted

Eave Mounted

Read notes section on page4 for additional information about mounting location of fixture.

Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation).

Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for

proper operation and to avoid the risk of electrical shock.

For eave mounted only:

Swing the sensor head towards the mounting bracket.

Rotate the sensor head clockwise 180˚ so the controls face down.

Controls

Backplate

Controls

Controls

Important to Know:

1.If you are not familiar with state and local electrical

codes, it is recommended that you consult with a

qualified electrician.

2.This fixture requires a 120 VAC, 60 Hz power

source.

3.For general safety and to avoid any possible

damage to the sensor, be sure the power is

switched "off" before adjustment.

Features:

Maximum Wattage: 22 W

Working Temperature Range: -13°F ~ 113°F

Note: Fixture can be wall mounted or eave mounted.

1.Energy saving LED fixture.

2.Motion sensor: turns light ON at full brightness

automatically when motion is detected and DIMS

light to low level brightness automatically when

motion stops.

3.

Photocell automatically keeps the light OFF during

daylight hours and automatically turns the light ON

during evening hours.

4.The wall switch that the light is connected to can be

used to manually override and change functionality

and settings of certain modes.

Tools Needed:

1.Phillips-head screwdriver for attaching mounting screws to

mounting strap, mounting bracket and fixture to mounting bracket.

2.1/8” wide flat-head screwdriver for connecting the source wires

into the wiring terminal station on the mounting bracket.

(1) Philip-head Screwdriver

(2) 1/8" wide Flat-head Screwdriver

Hardware Package (included):

Mounting Screw X2

#8/32X1/2 in

Fixture Mounting Screw

Mounting Strap

Mounting Screw X2

#6/32 X1/2 in

Mounting Screw X2

#10/24 X1/4 in

Decorative cover
