220122

Max.60W Medium

Base Bulb

(not included)

1. Attach mounting strap unit (A) to the outlet box using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire from the fixture through the lower rod, then

secure the lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure the

middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the

upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 29-1/2" to 83-1/2". Use

fewer rods if shorter length is desired.

3.

Thread the fixture wire through the canopy kit, then secure the

rod assembly to the set threaded pipe of the canopy kit.

4. Adjust the squares refer to the figure.

5. Pull out the source wires from the outlet box. Make wire

connections using wire connector

(C)

as follows:

---Connect the smooth-coated wire (marked) from the

fixture to the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the

fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting

strap

unit (A)

with the green ground screw, then connect

it to the house ground wire with a wire connector

(C).

Carefully put the wires back into the outlet box.

6. Attach the canopy kit to the mounting strap unit (A) by

inserting the fixture mounting screws, then secure it with

two bolt nuts (D).

7. Install 4 x 60W max.medium base bulbs (not included).

Check relamping label at socket area or packaging for

maximum wattage allowed.

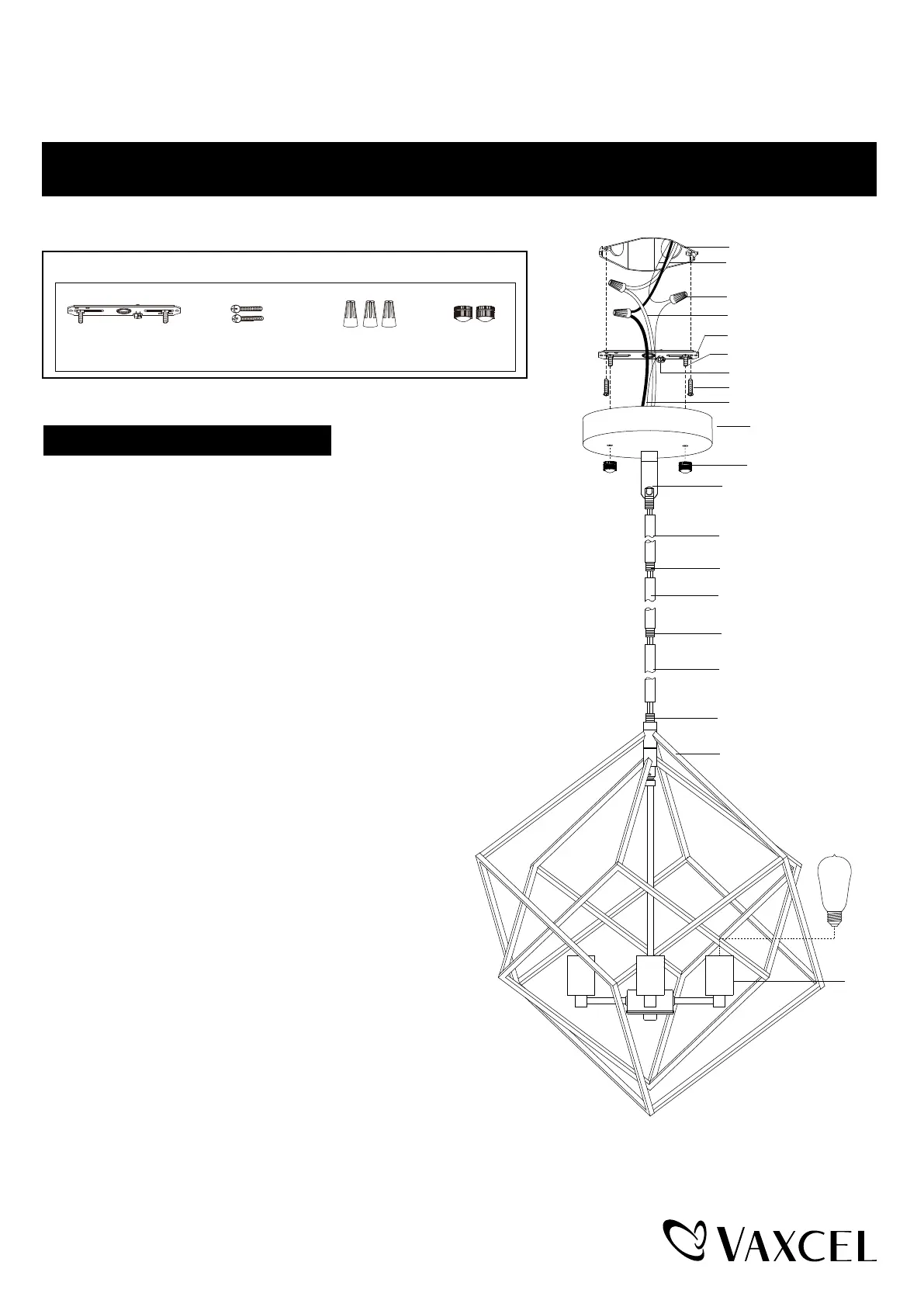

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTIONS.

P0373

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Canopy Kit

Outlet Box

House Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Upper Rod

Middle Rod

Lower Rod

Socket

Fixture

Threaded Pipe

Threaded Pipe

Threaded Pipe

Fixture Wire

Fixture Mounting Screw

Fixture Ground Wire

Set Threaded Pipe

Bolt Nut (D)

Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)

Bolt Nut (D)
