ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0539

T

W

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Hardware Package (included):

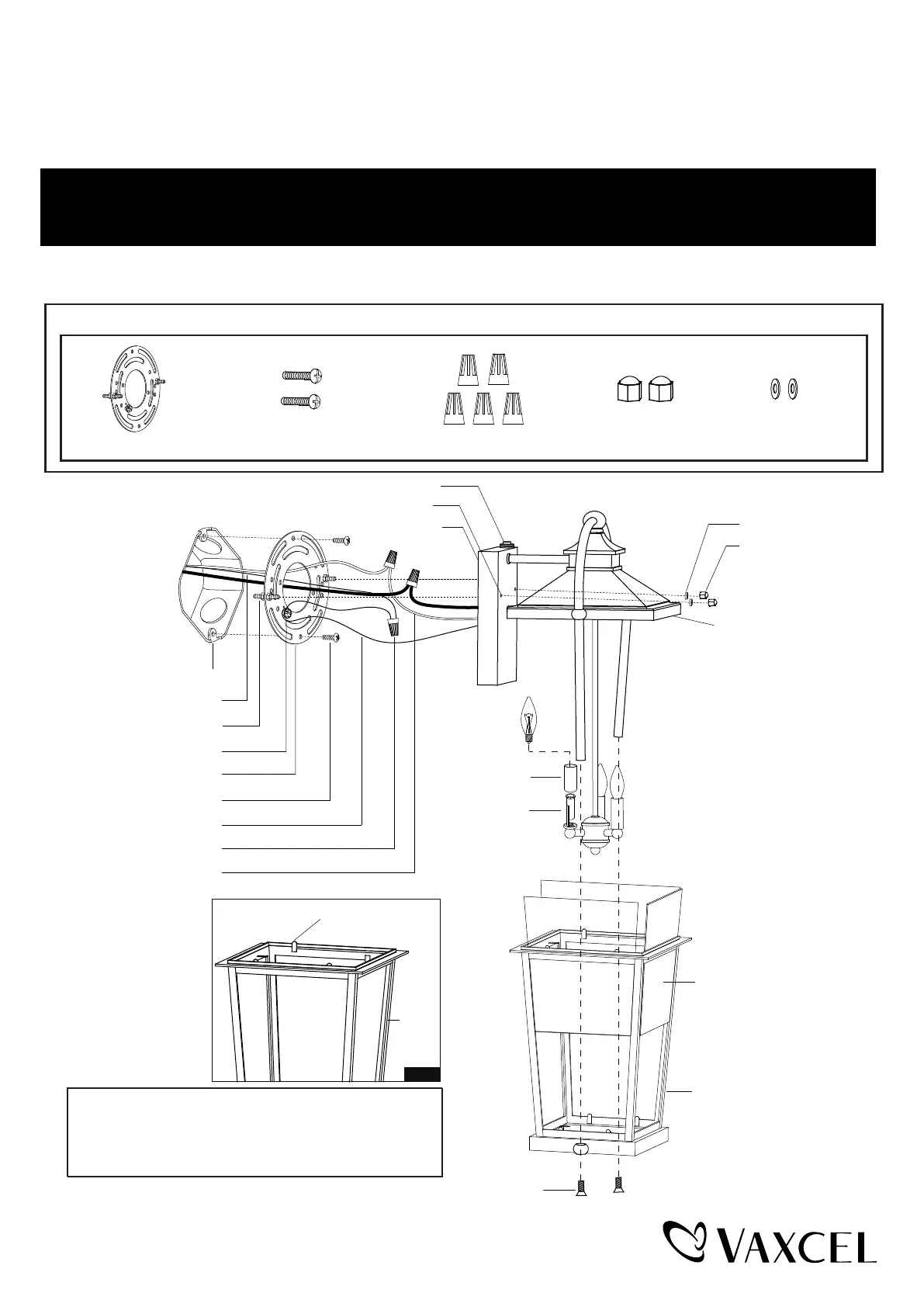

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Rubber Pad (E)Mounting Plate Unit (A)

Fig.1

Fig.1

Clip

Metal

Frame

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Headless Screw

Mounting Plate Unit (A)

Fixture Wire

Fixture Ground Wire

Glass Panel

Set Screw

Metal Frame

Backplate

Photocell

Set Hole

Fixture

Rubber Pad (E)

Bolt Nut (D)

Max. 60W

type B Bulb

(not include)

Candle tube

Socket

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.
