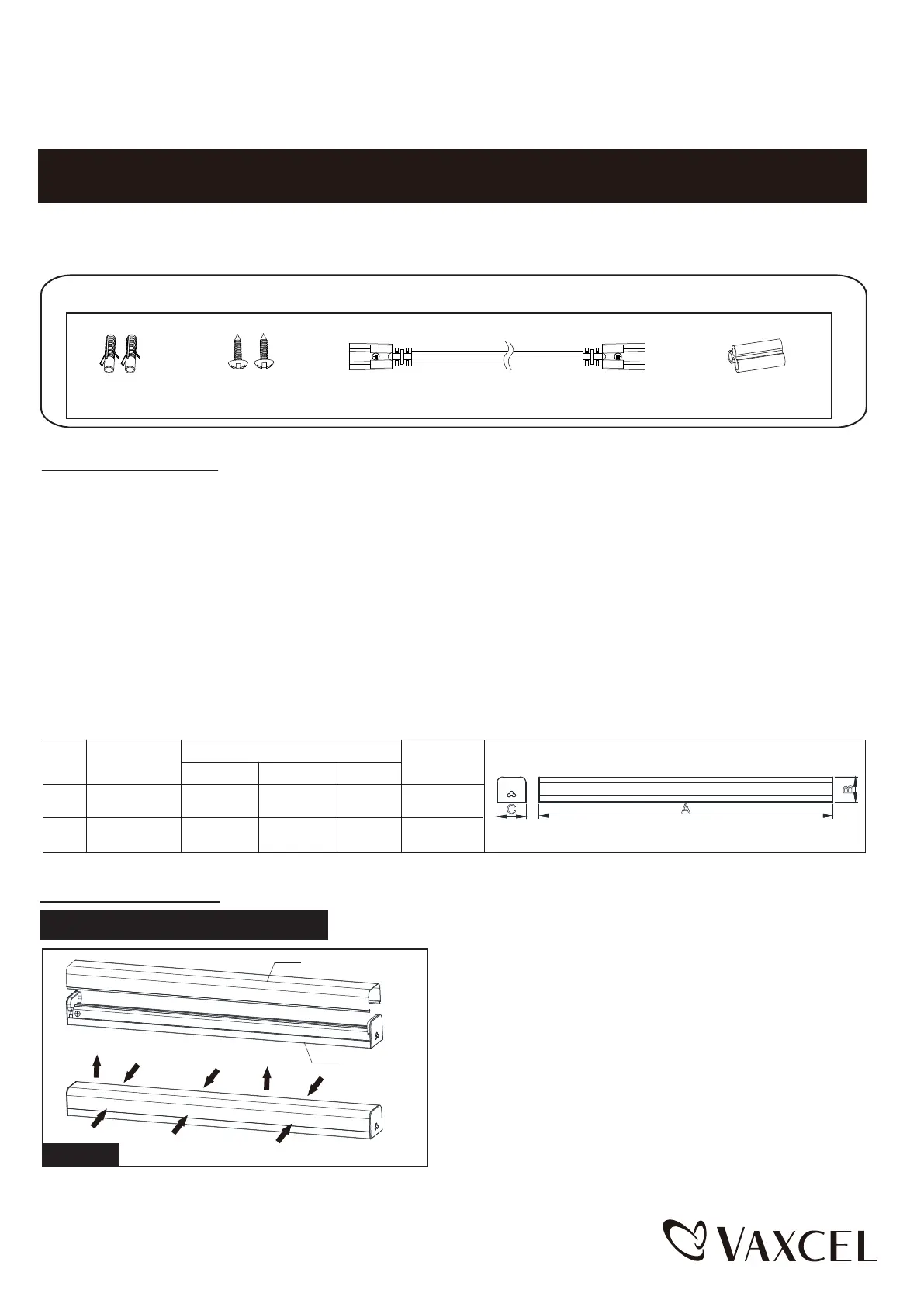

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

171207

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

H0195 / H0196

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

Fig.1

PC Diffuser

Fixture Plate

1. Open the PC diffuser by squeezing and pulling out.

Remove the hardware package which locate in fixture.

1. Read all instructions carefully before installation and operation.

2. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified electrician.

3. Units can be linked together in series from one power supply. Link up to 24pcs x 24" bar lights (#H0195) together, link

up to 24pcs x 48" bar lights (#H0196) together, or link combination of sizes together.

4. Do not use in wet locations, use indoors only.

5. Non-replaceable LEDs.

6. Caution: LEDs emit bright light. Avoid looking directly into the light source for prolonged periods to avoid eye damage.

7. Not to be used with a dimming circuit or any other electronically controlled switch.

8. Specification:

Installation Steps

Important to Know

NO.

1

2

24

2

Dimension(inch)

Item #.

H0196

482

H0195

A

B

C

30W

2.5

2.5

Watts

13.5W

C

A

B

Hardware Package (Included):

Anchor (A)

Dry Wall Screw(B)

Linking Cord (C)

Plastic Connector (D)
