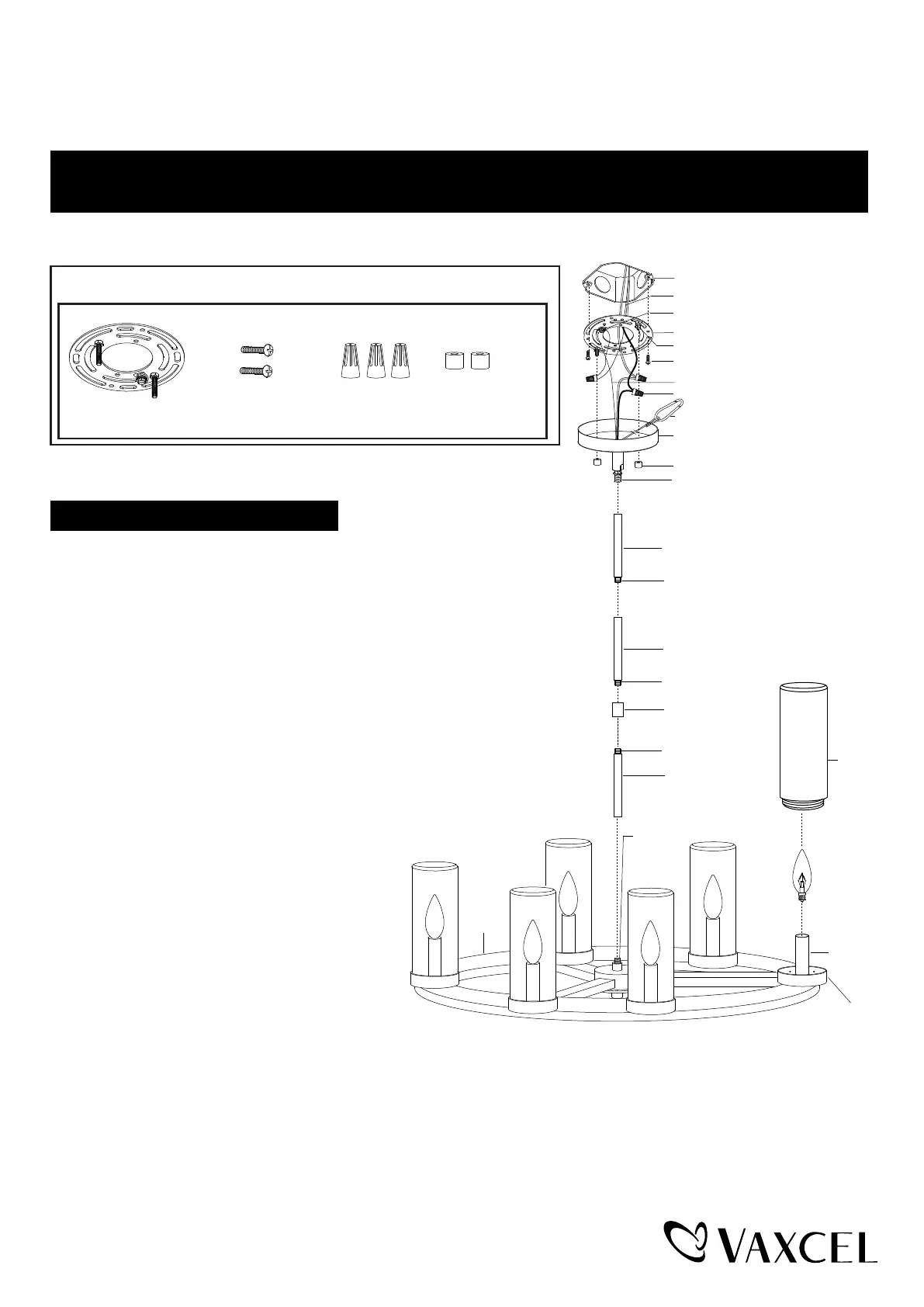

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0290
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the bolt nuts (D), take out the mounting plate
unit (A) and then attach to the outlet box by using two
mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure
the lower rod onto tube using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 17-1/4" to 62-1/4". Use fewer
rods if shorter length is desired.
3. Thread the fixture wire through the canopy kit, then secure the
rod assembly to the set threaded pipe of the canopy kit.
4. Attach the cord clamp onto the mounting
plate unit (A).
5. Pull out the source wires from the outlet box.
Make wire connections using wire
connectors (C) as follows:
---Connect the smooth-coated wire (marked)
from the fixture to the black wire from the
power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
6. Attach the canopy kit onto the mounting plate unit (A) and tighten it with two bolt nuts (D).
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting plate Unit (A)
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Cord Clamp
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Canopy Kit
Fixture
Page 1 / 2
Socket
Glass Holder
Glass Shade
Max. 40W
Candelabra Base
Bulb (not included)
Upper Rod
Middle Rod
Middle Rod-1
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded
Pipe
Lower Rod
Set Threaded Pipe
230628
