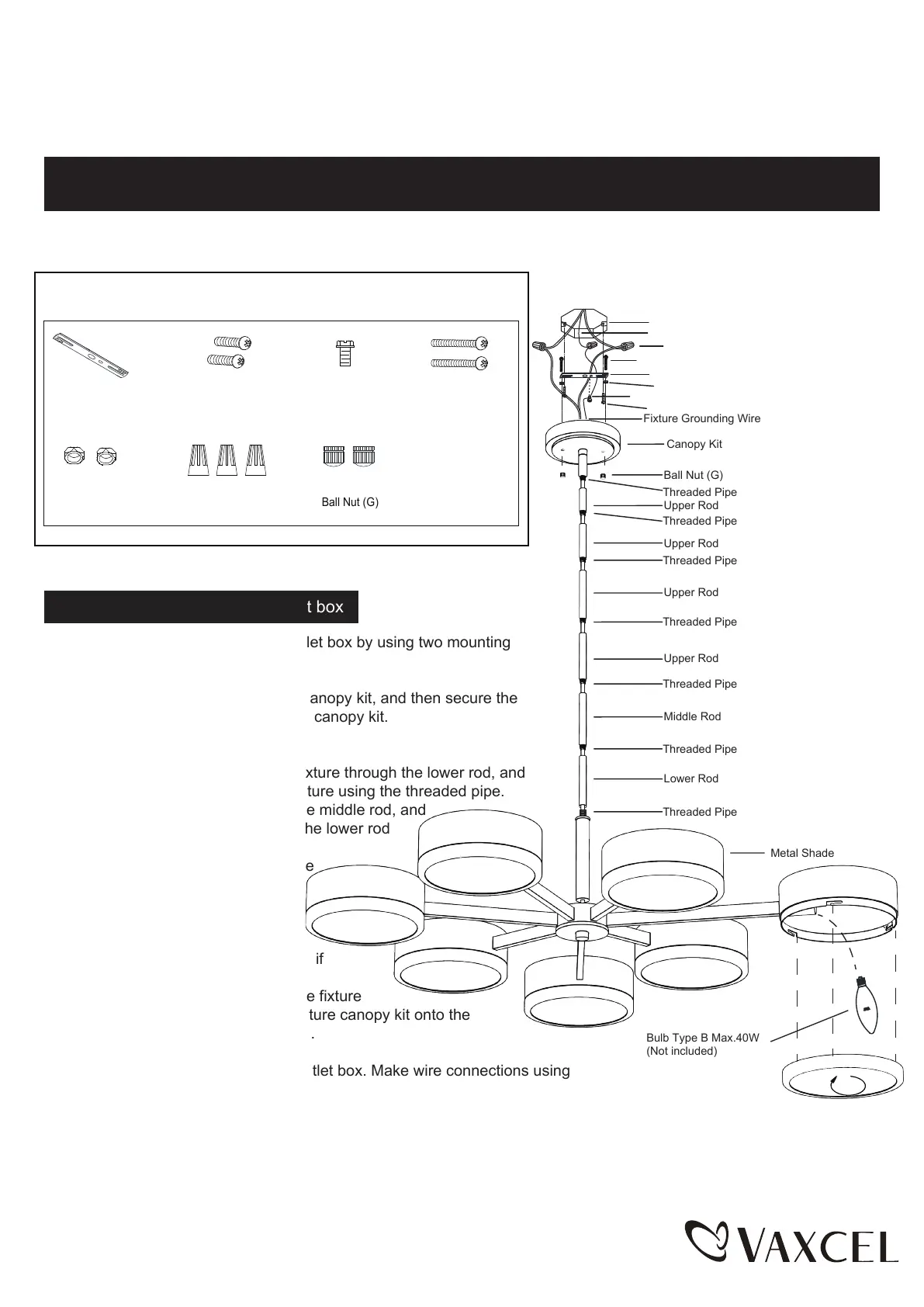

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

H0219

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

Hardware Package (included):

Mounting Strap (A)

Mounting Screw (B)Green Grounding

Screw (C)

Fixture Mounting

Screw (D)

Lock Nut (E)

Wire Connector (F)

Ball Nut (G)

Installation Steps

Turn off the power at fuse or circuit box

1. Attach the mounting strap to the outlet box by using two mounting

screws.

2. Thread the fixture wire through the canopy kit, and then secure the

rod assembly to the set nipple of the canopy kit.

3. Rod Connections:

a. Thread the fixture wire from the fixture through the lower rod, and

then secure the lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod, and

then secure the middle rod onto the lower rod

using the threaded pipe.

c. Thread the fixture wire through the

upper rod, and then secure the

upper rod onto the middle rod

using the threaded pipe.

Note: Length adjustable from

20-1/4" to 74-1/4". Use fewer rods if

shorter length is desired.

d. Thread the fixture wire through the fixture

canopy kit and then secure the fixture canopy kit onto the

upper rod using the threaded pipe.

4. Pull out the source wires from the outlet box. Make wire connections using

wire connectors as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black wire

from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire

from the power source.

---Attach the fixture grounding wire to the mounting strap with the green grounding

screw, and then connect it to the house grounding wire with a wire connector.

Carefully put the wires back into the outlet box.

5. Attach the canopy kit to the mounting strap by inserting the fixture

mounting screws, and then secure it with two ball nuts.

181222

Outlet Box

House Grounding Wire

Wire Connector (F)

Fixture Mounting Screw (D)

Lock Nut (E)

Mounting Screw (B)

Fixture Grounding Wire

Green Grounding Screw (C)

Canopy Kit

Ball Nut (G)

Upper Rod

Upper Rod

Upper Rod

Mounting Strap (A)

Threaded Pipe

Threaded Pipe

Threaded Pipe

Threaded Pipe

Upper Rod

Threaded Pipe

Middle Rod

Threaded Pipe

Threaded Pipe

Lower Rod

Metal Shade

Bulb Type B Max.40W

(Not included)
