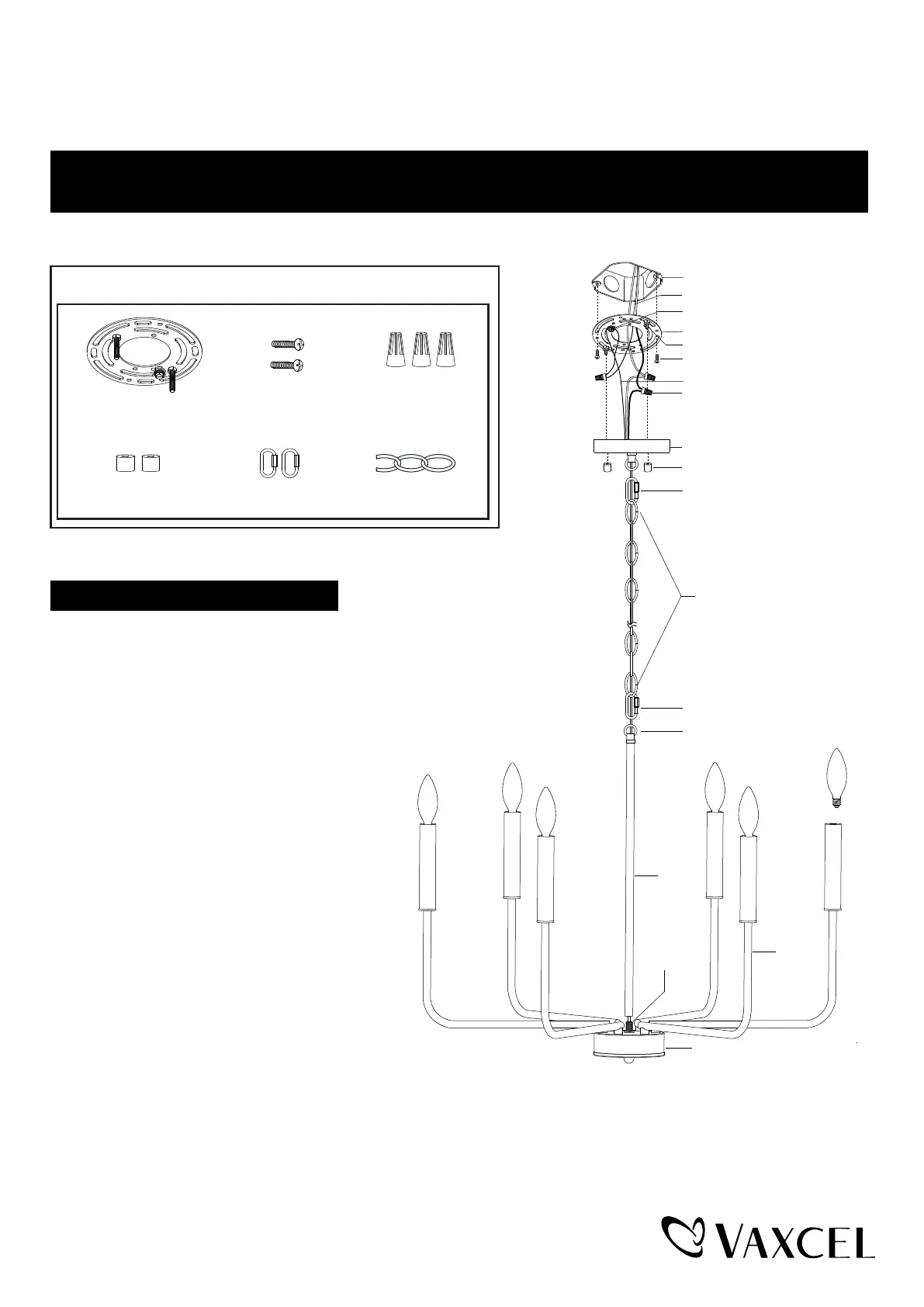

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0297
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Unscrew the two bolt nuts (D), remove the mounting plate
unit (A) from the canopy kit.
2. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B).
3. Attach the tube to the fixture.
4. Choose the length of the chain (F) you needed,
use pliers (not included) to open and remove
links to shorten the chain (F), then weave the
fixture wire and the fixture ground wire through
the chain (F) and canopy kit.
5. Connect one end of the chain (F) to the
loop by using a quick link (E).
6. Connect the other end of the chain (F) to the
canopy kit by using another quick link (E).
7. Pull out the source wires from the outlet box.
Make wire connections using wire connectors
(C)
as follows:
---Connect the smooth-coated wire (marked) from
the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting plate unit
(A)
with the green ground screw, then connect it
to the house ground wire with a wire connector
(C).
Carefully put the wires back into the outlet box.
Page 1 / 2
240411
Wire Connector (C)Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D)
Quick Link
(E)
Chain (F)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy Kit
Bolt Nut (D)
Outlet Box
Chain (F)
Quick Link (E)
Quick Link (E)
Loop
Arm
Tube
Max. 60W
Candelabra base
bulb (not included)
Threaded
Pipe
Fixture
