ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

H0307

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

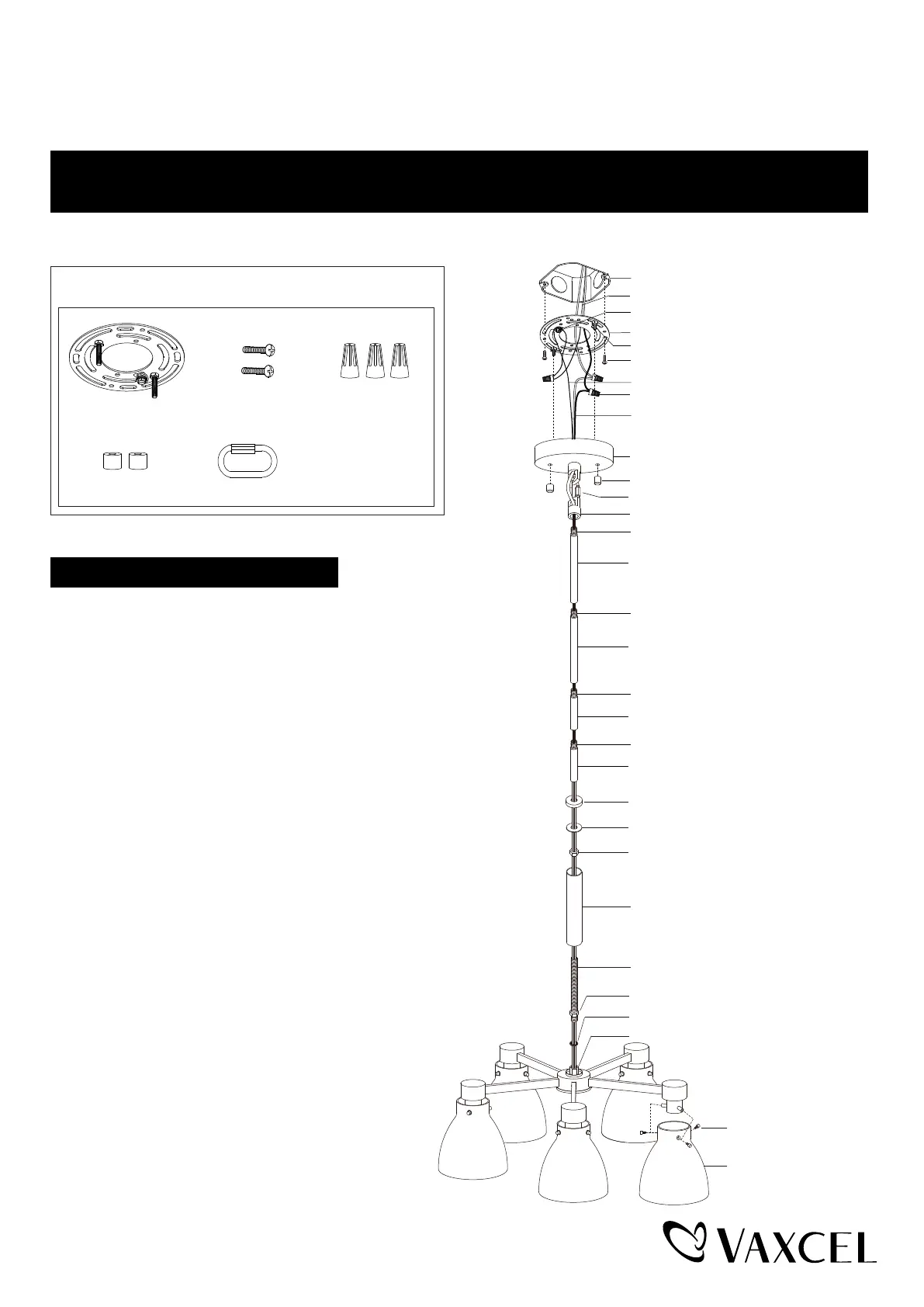

Installation Steps

Hardware Package (included):

Wire Connector (C)

Mounting Screw (B)

Mounting Plate Unit (A)

Bolt Nut (D)Quick Link (E)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Outlet Box

Fixture Loop

Canopy Unit

Quick Link (E)

Coupling

Fixture Screw

Glass Shade

Upper Rod

Middle Rod

Threaded Pipe

Threaded Pipe

Middle Rod

Threaded Pipe

Lower Rod

Threaded Pipe

Tube

Metal Pad

Hex Nut-a

Tube Cap

Threaded Pipe

Hex Nut-b

Washer

1. Unscrew the two bolt nuts (D). Remove the mounting plate unit (A)

from the canopy unit.

2. Attach the mounting plate unit (A) to outlet box with the mounting

screws (B).

3. Thread the fixture wires from the fixture through the threaded pipe,

then secure the threaded pipe tightly to the coupling with the washer

and hex nut-b. Thread the fixture wires from the fixture through the

tube, hex nut-a, metal pad, tube cap in sequence, then attach them

to the fixture. (Adjust the hex nut-a to right position against the metal

pad).

3. Rod connection:

a. Thread the fixture wires from the fixture through the lower rod,

then secure the lower rod onto the fixture using the threaded pipe.

b. Thread the fixture wires from the fixture through the middle rods,

then secure the middle rods onto the lower rod using the threaded

pipe.

c. Thread the fixture wires from the fixture through the upper rod,

then secure the upper rod onto the middle rod using the

threaded pipe.

d. Thread the fixture wires from the fixture through the fixture

loop, then secure the fixture loop onto the upper rod

using the threaded pipe.

Note: The fixture height can be adjusted to 57"

by using the rods. Use fewer rods if shorter height

is desired.

4. Thread the fixture wires through the quick link (E)

and canopy unit, then connect canopy unit and

fixture loop with quick link (E).

Page 1 / 2

240814
