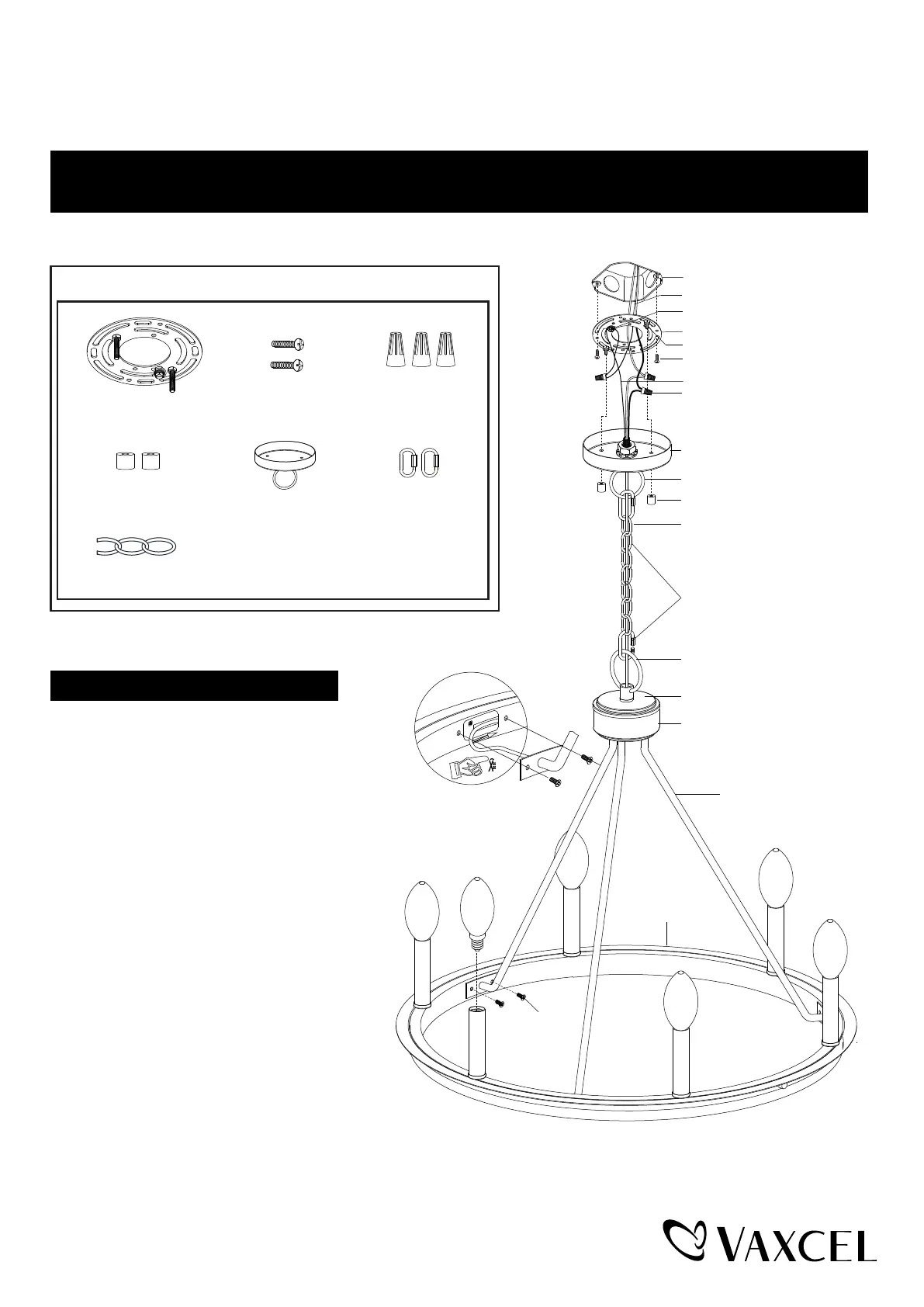

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTIONS.
H0274
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B).
2. Unscrew 6 pcs set screws inside the metal ring.
3. Adjust the angle of the brackets.
4. Carefully insert the cord into the reserved
hole, align with the holes and lock the set
screws in place.
5. Choose the length of the chain (G) you needed,
use pliers (not included) to open and remove
links to shorten the chain, then weave the fixture
wire and the fixture ground wire through the
chain (G) and canopy (E).
6. Connect one end of the chain (G) with the
loop by using a quick link (F).
7. Connect the other end of the chain (G)
by using another quick link (F).
8. Thread the fixture wire and fixture ground
wire through mounting plat unit (A).
221108
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Quick Link (F)
Chain (G)
Canopy (E)
Quick Link (F)
Bracket
Loop
Top Loop
Fixture
Wire Connector (C)Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D)
Quick Link
(F)
Chain (G)
Canopy (E)
Max.60W Type B Bulb
(not included)
Set Screw
Ring
