ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

H0296

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

. Unscrew the bolt nuts (D), take out the mounting plate unit (A) and

then attach to the outlet box by using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire through the lower rod, then secure the lower

rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure the

middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the upper

rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 13-1/2" to 67-1/2".

Use fewer rods if shorter length is desired.

3. Thread the fixture wire through the canopy

kit, then secure the rod assembly to the set

threaded pipe of the canopy kit.

4. Pull out the source wires from the

outlet box. Make wire connections

using wire connectors (C) as follows:

---Connect the smooth-coated

wire (marked) from the fixture to

the black wire from the power source.

---Connect the ribbed-coated

wire (unmarked) from the fixture

to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting

plate unit (A) with the green ground screw, then connect it

to the house ground wire with the wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the canopy kit to the mounting strap unit (A) by inserting the

fixture mounting screws, then secure it with two bolt nuts (D).

6. Attach the glass shades to the socket carefully, then secure them with

the socket rings.

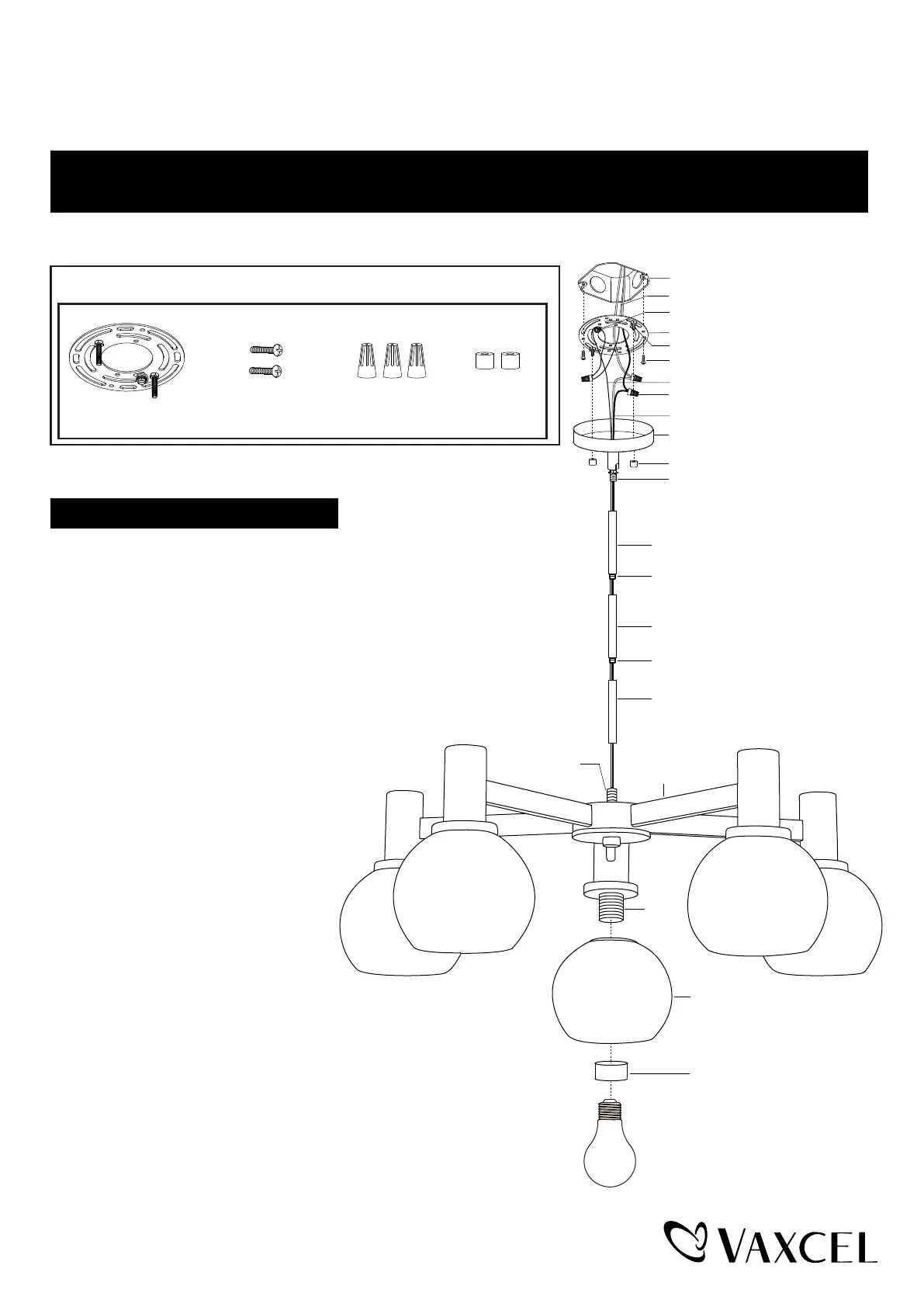

Hardware Package (included):

Wire Connector (C)

Mounting Screw (B)

Mounting plate Unit (A)

Bolt Nut (D)

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Fixture Wire

Outlet Box

Canopy Kit

Page 1 / 2

Max. 60W Medium

Base Bulb (not included)

Set Threaded Pipe

Fixture

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Socket

Glass Shade

Socket Ring

231121
